Photo Paper Coating Machine

Name: Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1050000.00 INR
Availability: InStock

Price 2000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Photo Paper Coating Machine Specification

Coating Transfer Method
Direct or Reverse Roll Coating

Coating Format
Roll-to-Roll

Feeding Type
Continuous Web Feeding

Machine Speed
150 m/m

Max. Coating Area
32 Inch

Power Requirement
Three Phase

Min. Sheet Area
12 Inch

Coating Type
Water-Based Photo Paper Coating

Registration
Automatic Web Alignment

Max. Sheet Area
32 Inch

Sheet Thickness
80 300 GSM

Varnish Type
Aqueous / High Gloss Emulsion

Product Type
Photo Base Paper and Specialty Coated Paper

General Use
Coating paper for manufacturing glossy, matte and inkjet photo paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
9000 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
30 INCHS Inch (in)

Coating Material
Bopp Film

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Single Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
1,400 380 450 Centimeter (cm)

Feature
High Speed, High Precision, Low Energy Consumption

Color
White, Cream or Customized

Warranty
1 year

Photo Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad / Nhava Sheva

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Photo Paper Coating Machine About

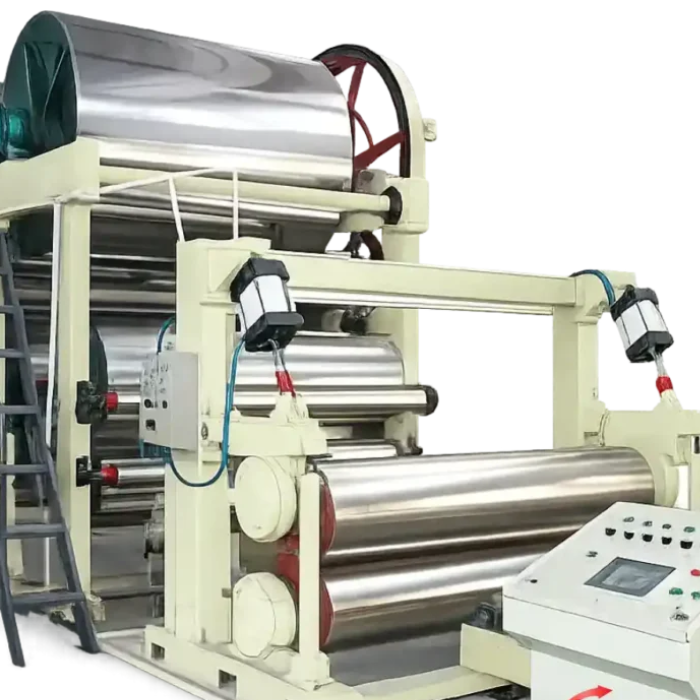

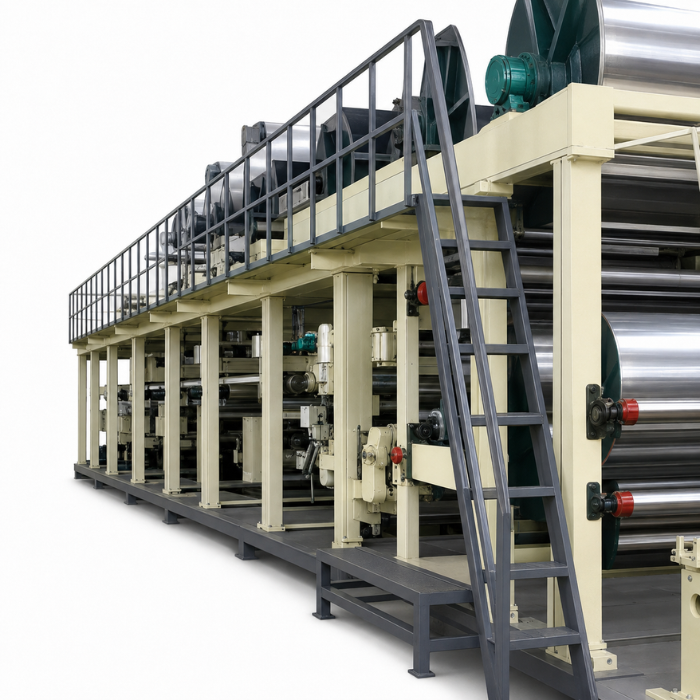

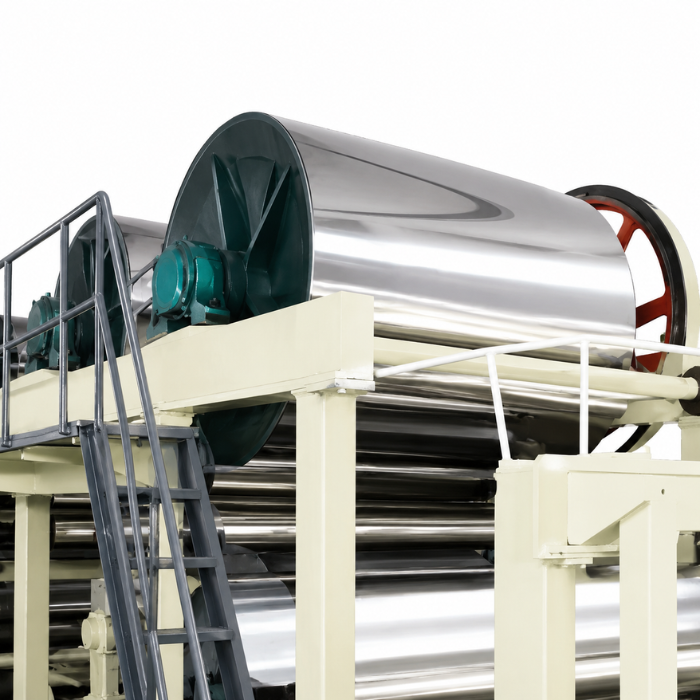

Mohindra Mechanical Works offers an advanced Photo Paper Coating Machine designed for manufacturing premium glossy, matte, satin and inkjet-compatible photo paper. The machine applies a smooth and consistent coating layer over the paper surface to improve ink absorption, colour reproduction, print sharpness, brightness and surface finish.

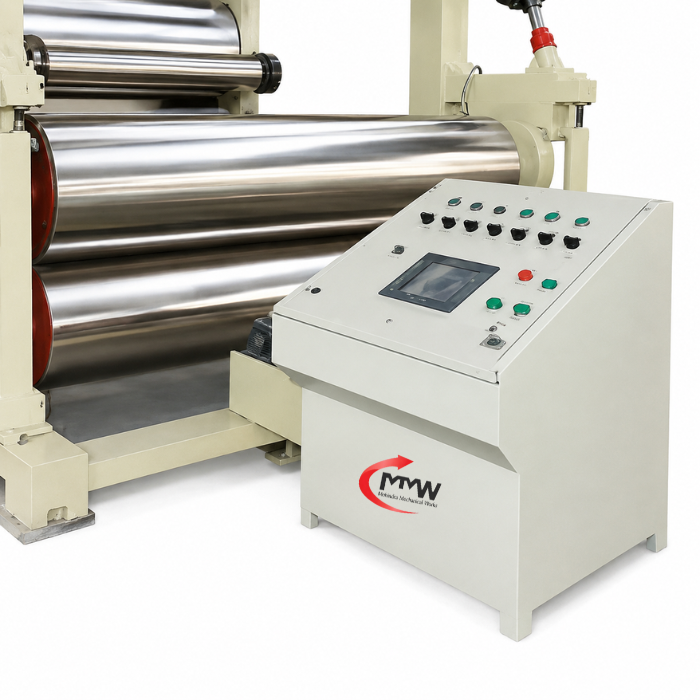

Its roll-to-roll arrangement includes controlled unwinding, precision coating, multi-zone drying and uniform rewinding. The PLC and HMI control system allows the operator to manage web speed, coating parameters, drying temperature and web tension conveniently. Automatic edge guiding helps keep the paper aligned throughout production, while precision-finished rollers ensure even coating distribution across the entire working width.
The machine can be configured with Mayer bar, gravure, air-knife or customized coating technology. It is suitable for different water-based ink-receptive formulations and can produce photo paper for desktop inkjet printing, professional photography, advertising graphics and commercial printing applications.
