Water Resistant Coating Machine for Kraft Paper

Send Inquiry

Request To Call Back

Water Resistant Coating Machine for Kraft Paper

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water Resistant Coating Machine for Kraft Paper Specification

Max. Coating Area
Full Web Width

Varnish Type
Water-Based Barrier Coating

Coating Format
Roll-to-Roll

Machine Speed
Up to 150 m/m

Min. Sheet Area
As per Customer Requirement

Coating Type
Water-Resistant Kraft Paper Coating

Coating Transfer Method
Mayer Bar Coating

Sheet Thickness
50 400 GSM

Power Requirement
120 200 kW

Feeding Type
Continuous Roll Feeding

Registration
Automatic Web Alignment

Max. Sheet Area
32 Inches

Product Type
Kraft Paper Coating Machine

General Use
Applying Water-Resistant Barrier Coating on Kraft Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Red, White or Customized

Warranty
1 Year

Water Resistant Coating Machine for Kraft Paper Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is protected using waterproof wrapping. Electrical panels, coating assemblies, rollers, motors and other sensitive components are properly covered. Major machine sections are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging can be provided according to customer requirements.

Main Export Market(s)
Africa, Asia, North America, Eastern Europe, Middle East, Australia, Central America, South America, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Water Resistant Coating Machine for Kraft Paper About

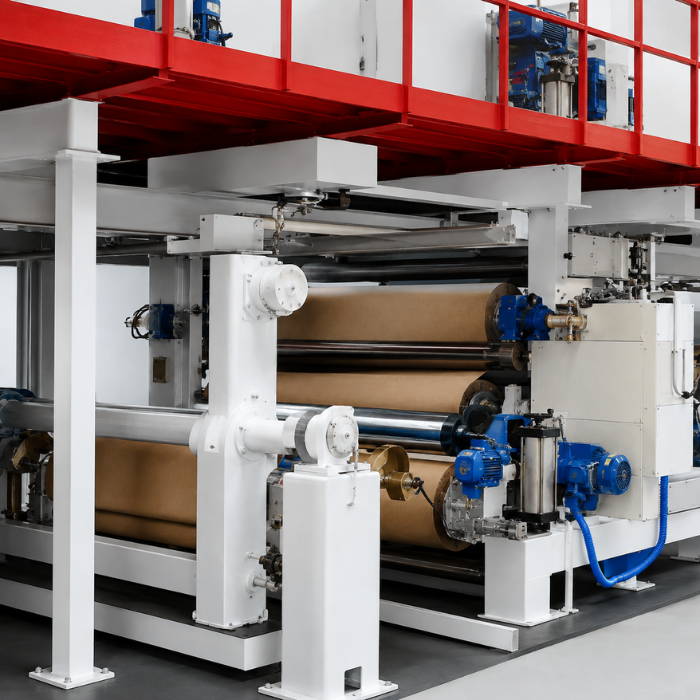

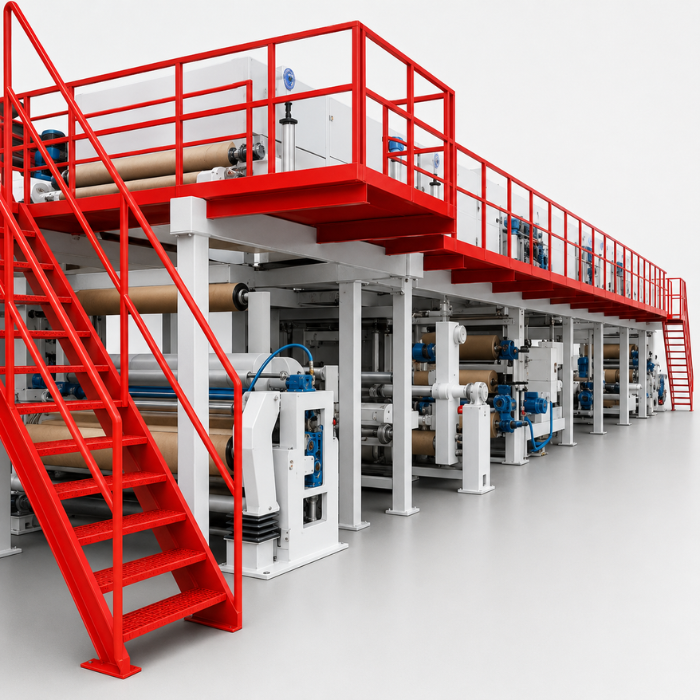

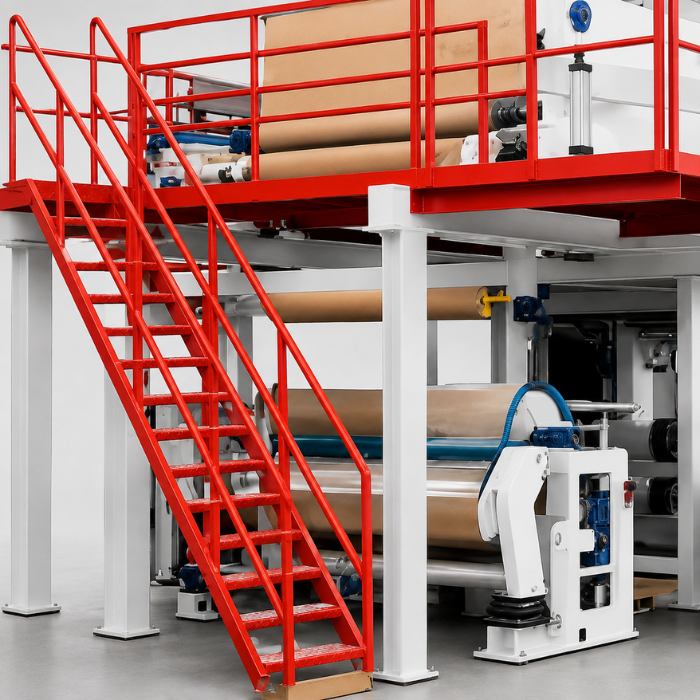

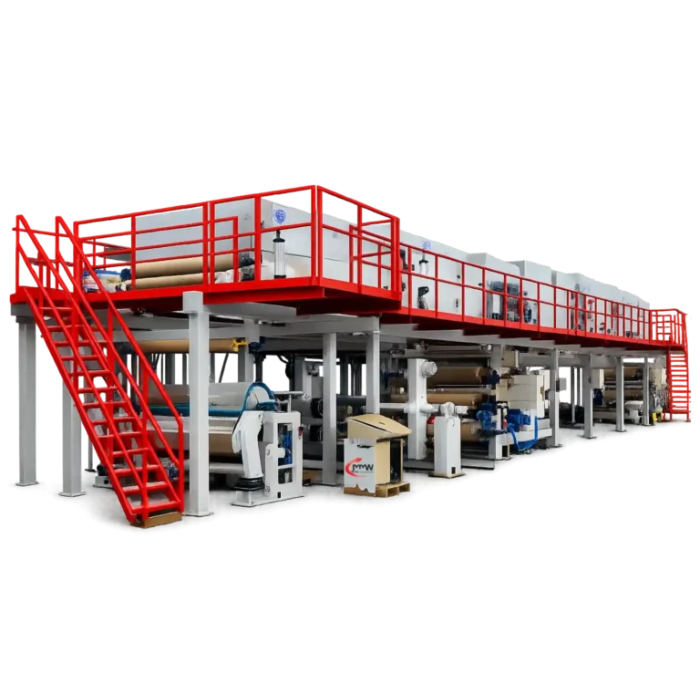

The Water Resistant Coating Machine for Kraft Paper manufactured by Mohindra Mechanical Works is designed to apply a uniform moisture- and water-resistant barrier layer onto kraft paper and paperboard rolls. The coated paper can be used for packaging, wrapping, corrugated boxes, shopping bags and other applications where protection from occasional water or moisture exposure is required.

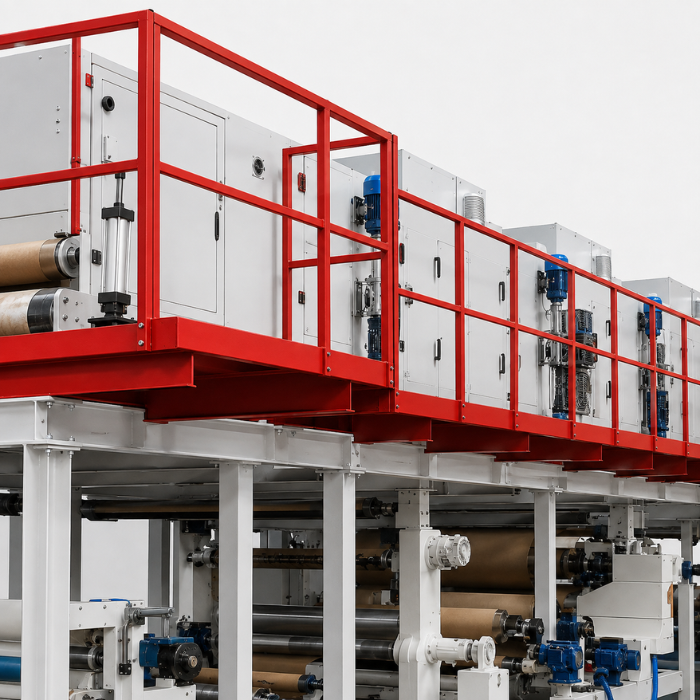

The machine operates in a continuous roll-to-roll format comprising automatic unwinding, controlled coating application, multi-zone hot-air drying and uniform rewinding. Its Mayer Bar coating head helps maintain the required coating thickness and consistent coverage across the paper web.

A PLC-based control system enables convenient adjustment of machine speed, web tension, coating parameters and drying temperature. Automatic web guiding keeps the kraft paper correctly aligned during production. The machine can process suitable water-based acrylic, polymer, PVA, wax-emulsion and customized barrier formulations.
