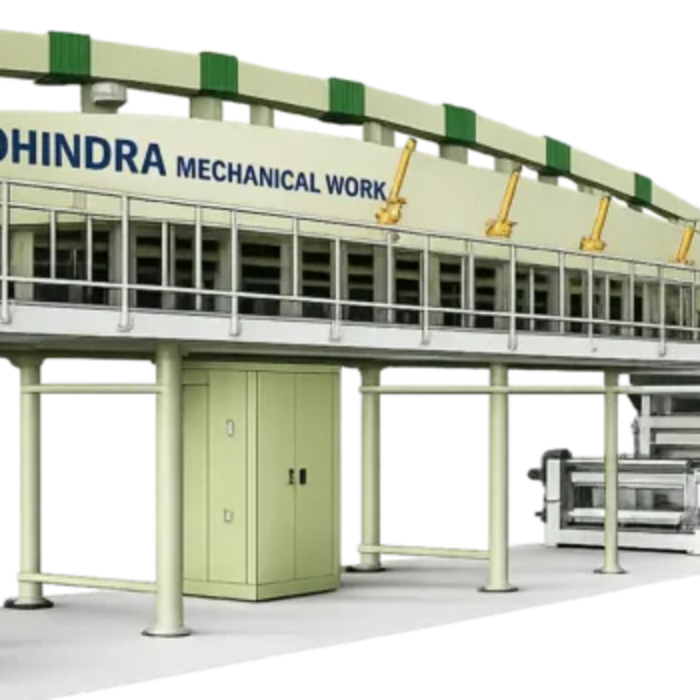

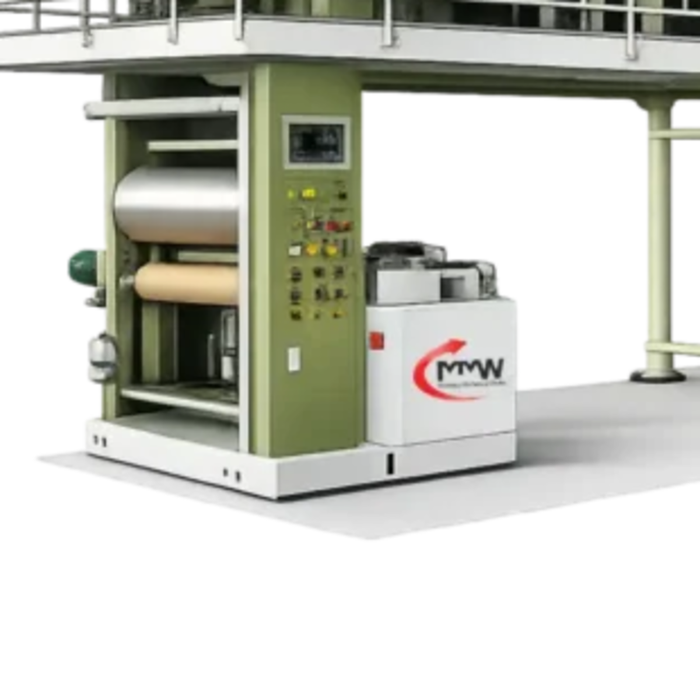

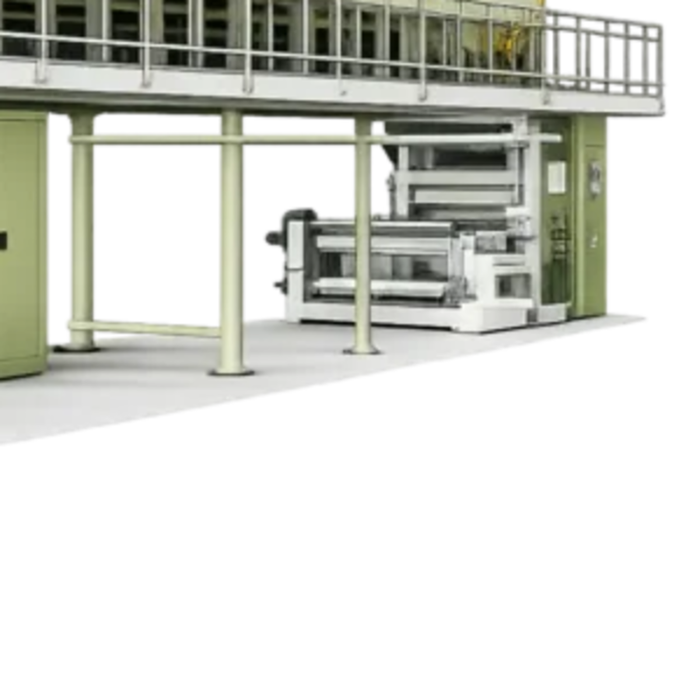

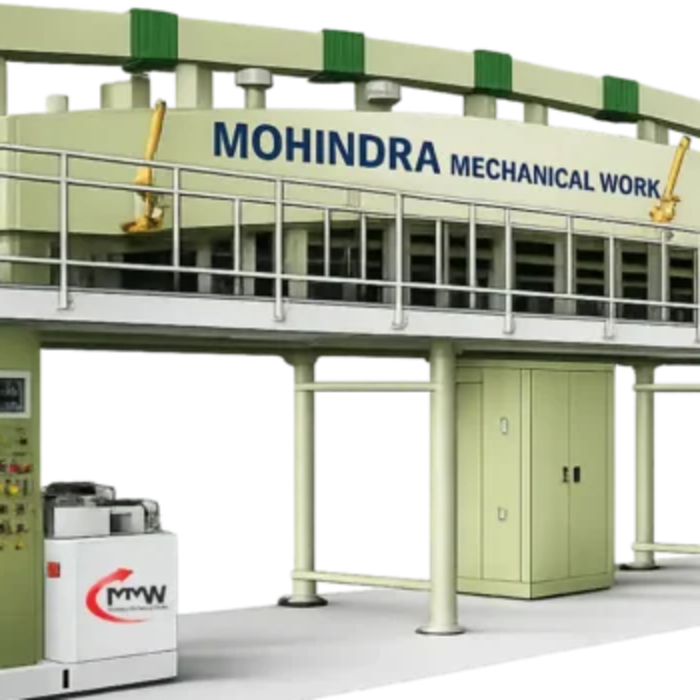

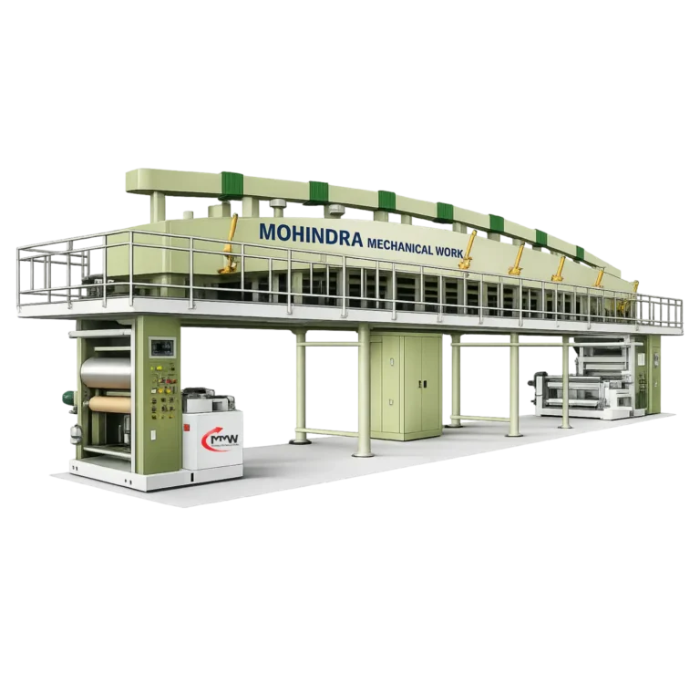

DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine
DDP (Diamond Dotted Paper) Paper Coating Machine

DDP (Diamond Dotted Paper) Paper Coating Machine

Price 3500000.0 INR/ Piece

MOQ : 1 Piece

DDP (Diamond Dotted Paper) Paper Coating Machine Specification

  • Coating Transfer Method
  • Pattern Gravure Coating
  • Registration
  • Automatic Web Alignment
  • Sheet Thickness
  • 0.08 0.25 mm
  • Coating Format
  • Roll to Roll
  • Max. Sheet Area
  • 36 Inch
  • Varnish Type
  • B-Stage Heat-Curable Epoxy Resin
  • Max. Coating Area
  • Full Web Width in Diamond Pattern
  • Min. Sheet Area
  • As per Customer Requirement
  • Power Requirement
  • 120 200 kW
  • Machine Speed
  • Up to 100 m/m
  • Feeding Type
  • Continuous Roll Feeding
  • Coating Type
  • Diamond Dotted Epoxy Resin Coating
  • Product Type
  • DDP Paper Coating Machine
  • General Use
  • Applying Diamond-Pattern Epoxy Resin on Insulation Paper
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 14000 Kilograms (kg)
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 120 200 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 1800 450 500 Centimeter (cm)
  • Feature
  • High Precision, Coating, Low Energy Consumption, High Speed
  • Color
  • Green, White or Customized
  • Warranty
  • 1 Year


DDP (Diamond Dotted Paper) Paper Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. The pattern-coating unit, precision rollers, electrical panels, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
  • Main Export Market(s)
  • Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America, South America
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About DDP (Diamond Dotted Paper) Paper Coating Machine

The DDP Paper Coating Machine applies diamond-shaped epoxy resin dots onto electrical-grade insulating paper. It provides accurate dot formation, controlled resin application, efficient drying and uniform roll rewinding. The finished Diamond Dotted Paper is primarily used for interlayer insulation in oil-immersed transformers and electrical equipment.

Key Features

  • Accurate diamond-shaped resin-dot formation
  • Uniform epoxy resin application
  • Adjustable dot size, spacing and coat weight
  • Consistent B-stage resin curing
  • Automatic roll-to-roll operation
  • PLC-based machine controls
  • Automatic web-tension control
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chamber
  • Adjustable drying temperature and airflow
  • Controlled handling of thin insulation paper
  • Smooth and wrinkle-free rewinding
  • Reduced paper and resin wastage
  • Heavy-duty industrial construction
  • Customized working width available

Suitable Raw Materials

  • Electrical-grade kraft paper
  • Transformer insulation paper
  • Cable insulation paper
  • High-density insulation paper
  • Cellulose-based insulating paper
  • Presspaper
  • Crepe insulation paper
  • Specialty dielectric paper rolls

Suitable Coating Materials

  • Heat-curable epoxy resin
  • Modified epoxy resin
  • B-stage epoxy adhesive
  • Transformer-grade bonding resin
  • Solvent-based epoxy formulation
  • Water-based epoxy formulation
  • Customized electrical-insulation resin

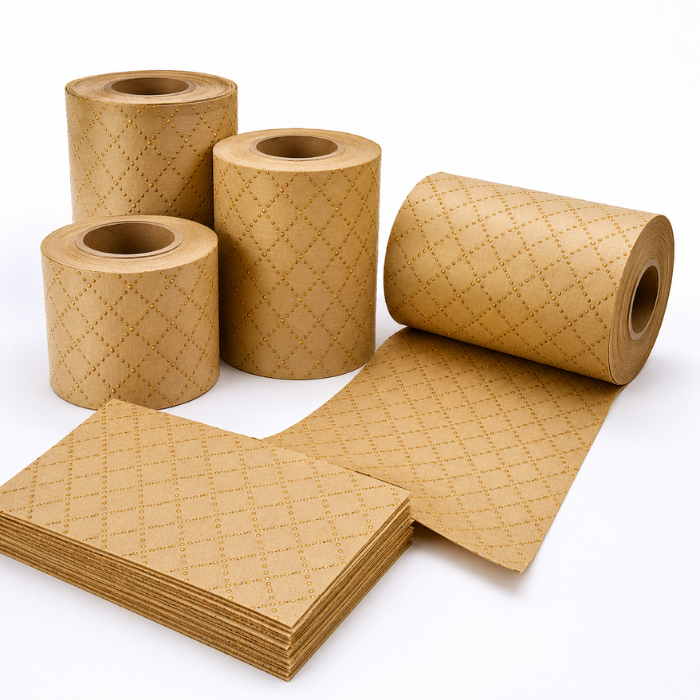

Finished Products

  • Diamond Dotted Paper rolls
  • DDP transformer insulation paper
  • Epoxy dotted insulation paper
  • Transformer coil interlayer paper
  • Winding insulation paper
  • Electrical bonding paper
  • Oil-immersed transformer insulation material
  • Distribution-transformer insulation paper
  • Power-transformer insulation paper
  • Electrical laminated insulation material
