Varnish Coating Machine

Price 7500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Varnish Coating Machine Specification

Max. Sheet Area
32 INCHS Inch (in)

Coating Format
Web / Roll

Min. Sheet Area
12 Inch

Feeding Type
Roll to Roll

Machine Speed
150 m/m

Registration
Automatic / Manual

Varnish Type
Aqueous Varnish / Protective Barrier Dispersion

Max. Coating Area
32 Inch

Power Requirement
25 kW

Sheet Thickness
50 - 300 GSM

Coating Type
Paper Varnish Coating / Heat-Sealable Varnish

Coating Transfer Method
Roller / Mayer Bar

Product Type
Varnish Coating Machine

General Use
Paper Coating & Packaging Varnish Industry

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
9500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
22 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
450 x 96 x 135 Inch (in)

Feature
High Speed, High Precision, Low Energy Consumption, Coating

Color
Industrial Teal, White & Green

Warranty
1 Year

Varnish Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Australia, Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Varnish Coating Machine About

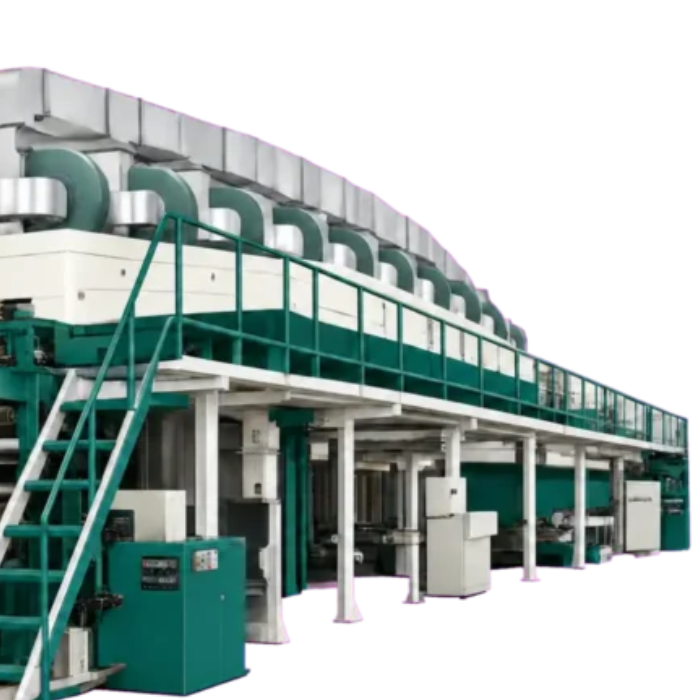

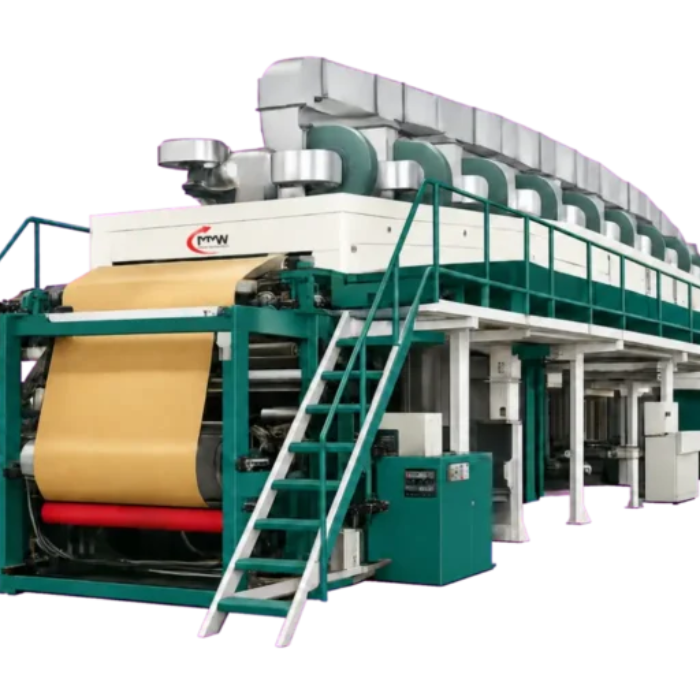

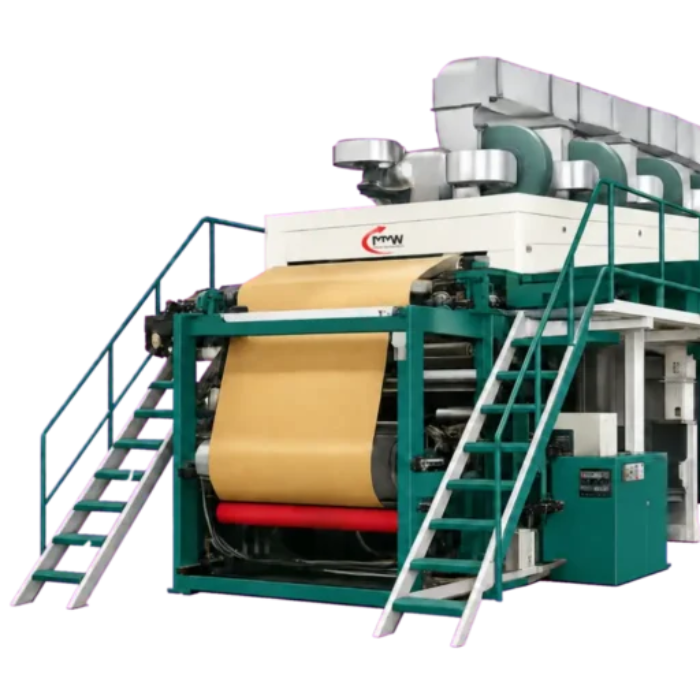

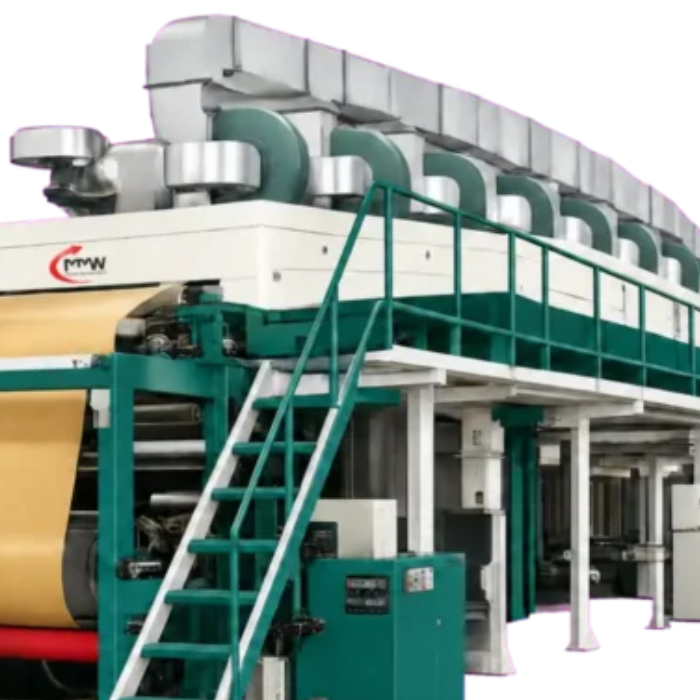

Mohindra Mechanical Works presents the heavy-duty Automatic Varnish Coating Machine, engineered for applying high-gloss, matte, protective, and heat-sealable aqueous varnish coatings onto paper, board, and flexible packaging webs. Built for continuous high-speed converting, this versatile line enhances surface finish, scratch resistance, and moisture barrier properties across packaging substrates used in food, pharmaceutical, and consumer goods industries.

Designed in a clean Teal, White, and Green industrial color scheme, it features a heavy-duty structure with dual access staircases, safety railings, an extended Hot Air drying tunnel with overhead air ducting, duplex unwinder, duplex rewinder, and automated web tension control. Operating smoothly at production speeds up to 150 m/min, the computerized PLC Control System with HMI touchscreen interface guarantees precise coat weight application, uniform drying, and reliable long-term performance.
