Aluminium Free Gutka Pouch Coating Machine

Send Inquiry

Request To Call Back

Aluminium Free Gutka Pouch Coating Machine

Price 7500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Aluminium Free Gutka Pouch Coating Machine Specification

Sheet Thickness
50 - 300 GSM

Min. Sheet Area
12 Inch

Max. Sheet Area
32 INCHS Inch (in)

Power Requirement
25 kW

Machine Speed
150 m/m

Coating Format
Web / Roll

Varnish Type
Heat Sealable Barrier Varnish / Aqueous Dispersion

Registration
Automatic / Manual

Coating Transfer Method
Metering Rod / Mayer Bar

Max. Coating Area
32 Inch

Feeding Type
Roll to Roll

Coating Type
Aluminium-Free Eco Barrier Coating / Moisture Proof Coating

Product Type
Eco Pouch Paper Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
9500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Matte Black & Dark Charcoal / Grey

Warranty
1 Year

Aluminium Free Gutka Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Western Europe, Middle East, Central America, North America, South America, Eastern Europe, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Aluminium Free Gutka Pouch Coating Machine About

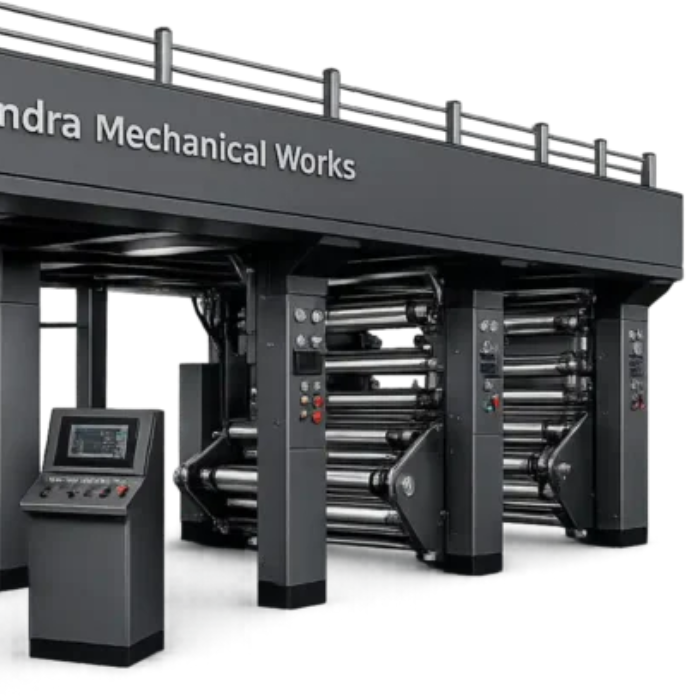

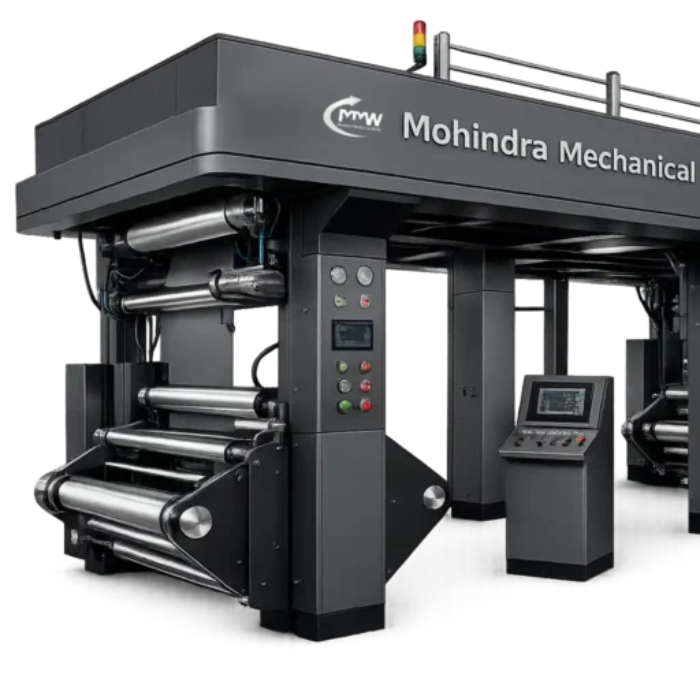

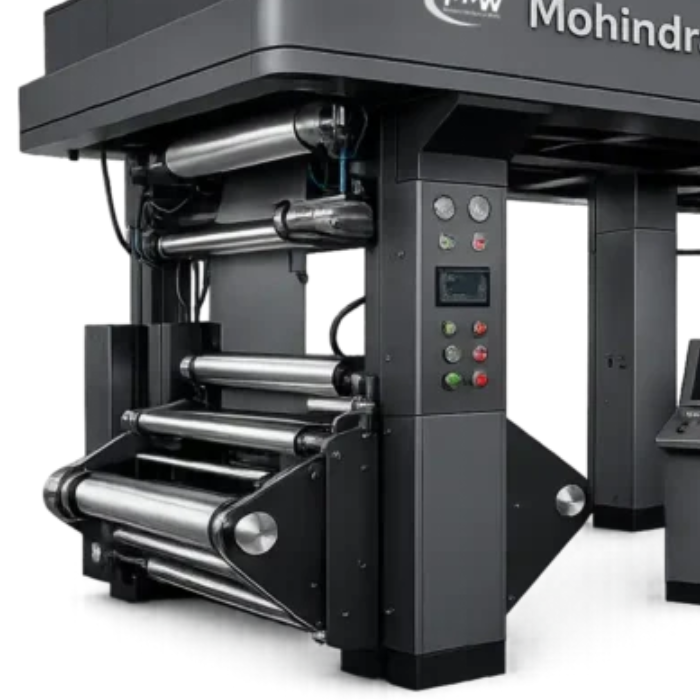

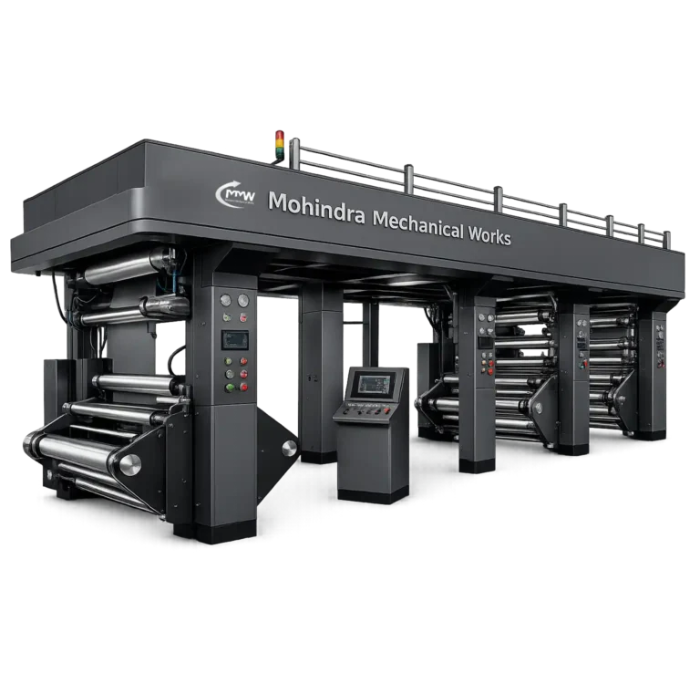

Mohindra Mechanical Works offers the advanced Automatic Aluminium Free Gutka Pouch Coating Machine, engineered to manufacture eco-friendly, recyclable, high-barrier flexible paper pouches without the use of aluminum foil. Designed to replace traditional foil laminates, this heavy-duty machine applies specialized water-based high-barrier dispersions, moisture barriers, and aroma-retention coatings directly onto paper substrates for gutkha, pan masala, and mouth freshener packaging.

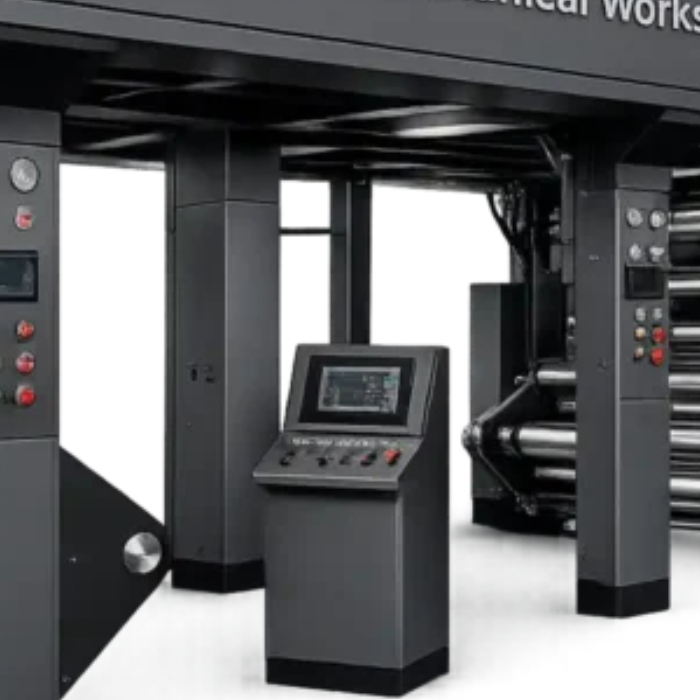

Equipped with a high-precision Mayer Bar / Metering Rod coating head, an efficient multi-zone Hot Air drying system, duplex unwinder, duplex rewinder, and pneumatic web tension control, it operates smoothly at production speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface allows precise coating weight management, tension control, and reliable continuous operation.
