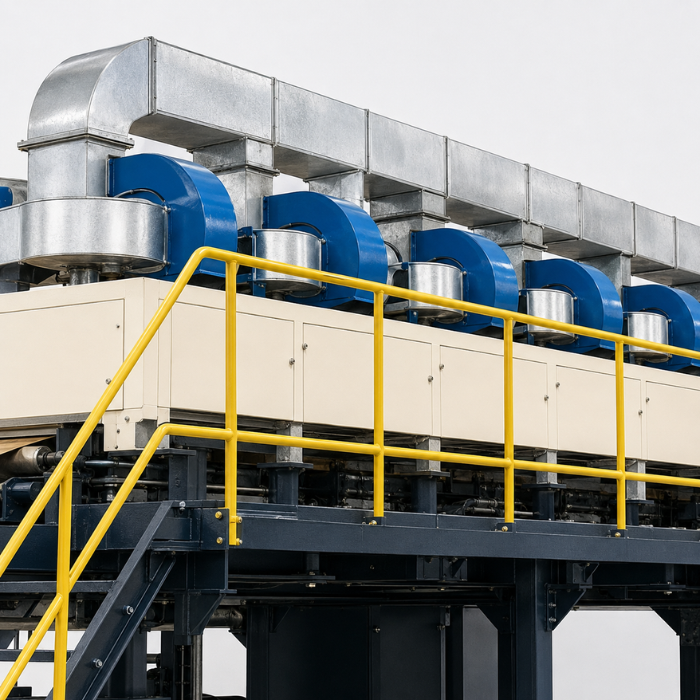

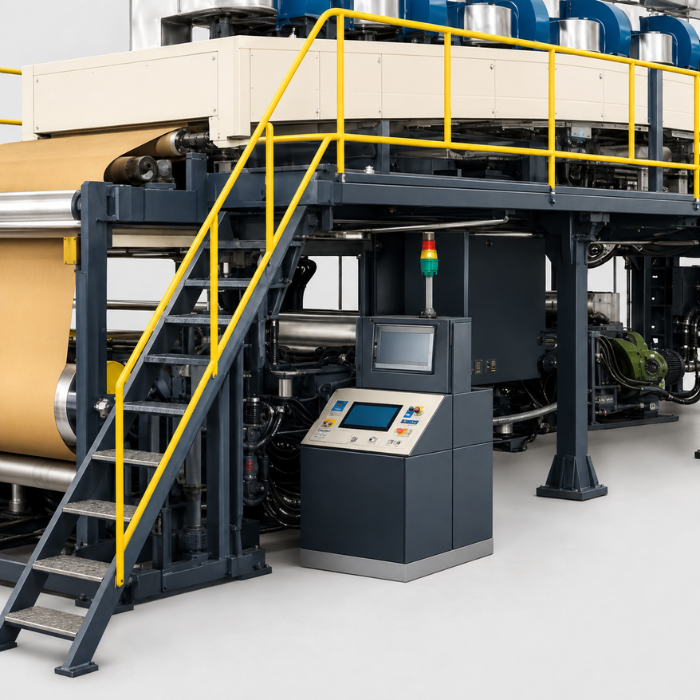

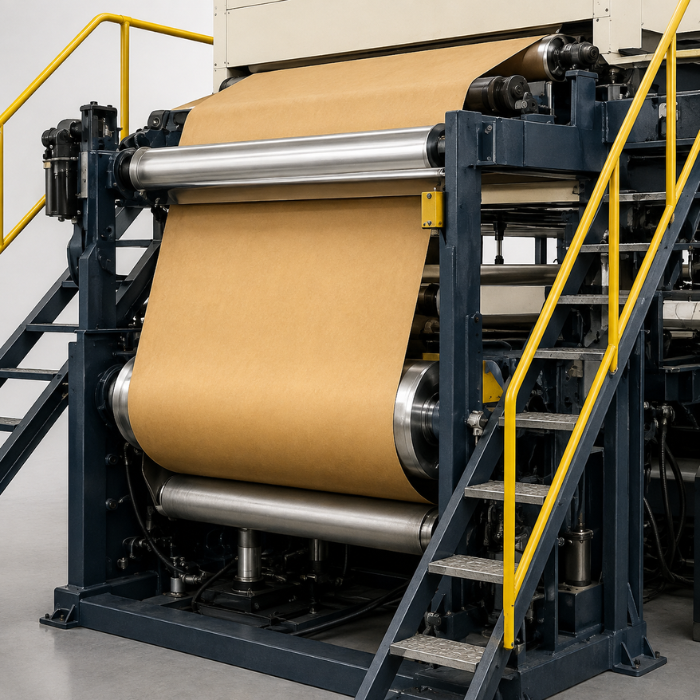

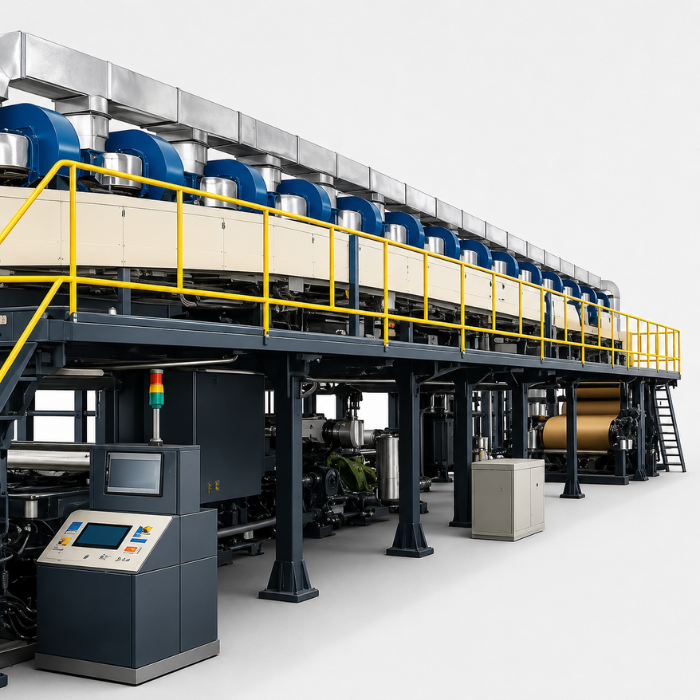

Pulp Paper Coating Machine

Name: Bopp Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 2300000 INR
Availability: InStock

Price 3000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pulp Paper Coating Machine Specification

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Max. Coating Area
Full Web Width

Coating Format
Roll-to-Roll

Coating Transfer Method
Mayer Bar Coating

Machine Speed
Up to 150 m/m

Power Requirement
120 200 kW

Registration
Mayer Bar Coating

Coating Type
Functional Paper Surface Coating

Sheet Thickness
40 350 GSM

Varnish Type
Water-Based Coating

Max. Sheet Area
32 Inches

Product Type
Pulp Paper Coating Machine

General Use
Applying Functional and Surface Coating on Pulp-Based Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
380-440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
High Speed, High Precision, Low Energy Consumption, Coating

Color
Black, Cream, Yellow or Customized

Warranty
1 Year

Pulp Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, Australia, Africa, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Pulp Paper Coating Machine About

The Pulp Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying functional and surface-finishing coatings onto paper manufactured from virgin or recycled pulp. It can be used to improve paper smoothness, printability, brightness, surface strength and resistance to grease, water or moisture, depending on the selected coating formulation.

The machine operates through a continuous roll-to-roll process comprising controlled unwinding, precision coating, multi-zone hot-air drying and automatic rewinding. Its PLC-based control system enables convenient adjustment of web speed, tension, coating operation and drying temperature.

The Mayer Bar coating arrangement provides controlled coating thickness and consistent application across the working width. Automatic web guiding maintains proper paper alignment, while the drying chamber provides uniform moisture removal. The machine can be customized according to paper GSM, coating chemistry, working width, drying requirement and production capacity.
