DG Coating Machine

Name: DG Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3000000.0 INR
Availability: InStock

Price 3000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

DG Coating Machine Specification

Min. Sheet Area
12 Inches

Coating Transfer Method
Mayer Bar Metering

Machine Speed
150 m/m

Max. Sheet Area
32 Inches

Max. Coating Area
Continuous Roll-to-Roll Coating

Coating Format
Continuous Web Coating

Registration
Automatic Web Alignment

Sheet Thickness
12 300 Micron

Varnish Type
Water-Based or Solvent-Based Lacquer

Feeding Type
Roll Feeding

Power Requirement
Three-Phase Industrial Power Supply

Coating Type
Single-Side Lacquer Coating

Product Type
Automatic DG Coater

General Use
Lacquer coating of paper, PVC, plastic film and foil

Material
Stainless Steel

Type
Paper Coating Machine

Weight (kg)
5500 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 60 100 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440 V Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 32 Inch (in)

Unwinding Width
Up to 32 Inch (in)

Dimension (L*W*H)
9000 2800 3200 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision

Color
Black, White and Red

Warranty
1 Year

DG Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The DG Coating Machine is packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, coating assemblies, rollers and sensitive components are separately protected to minimize the possibility of transit damage.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable documentation is provided according to the selected configuration and purchase order.

DG Coating Machine About

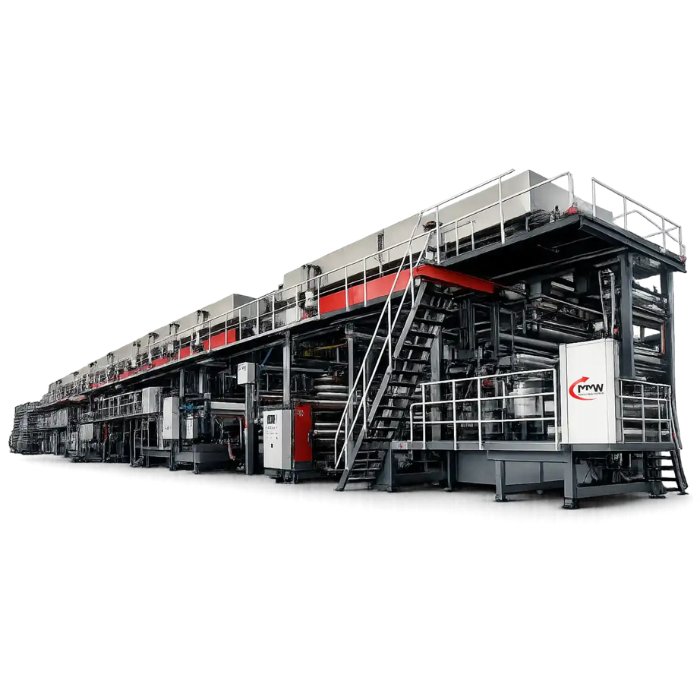

The Automatic DG Coating Machine manufactured by Mohindra Mechanical Works is designed for applying uniform lacquer and functional coatings on paper, PVC, BOPP, polyester film, plastic film and aluminium foil. Its precision Mayer Bar coating system controls the coating deposit and helps produce a smooth, consistent layer across the complete web width.

The machine incorporates automatic unwinding, web guiding, controlled web tension, precision coating, multi-zone hot-air drying and automatic rewinding. Its PLC-based control panel enables convenient adjustment of machine speed, drying temperature, web tension and coating parameters. The rigid fabricated structure and precision-ground rollers support stable performance during continuous industrial production. This machine is suitable for protective, decorative, heat-seal and specialty lacquer applications. Working width, drying length, coating range and heating source can be customized according to the buyers material and process requirements.

Key Features

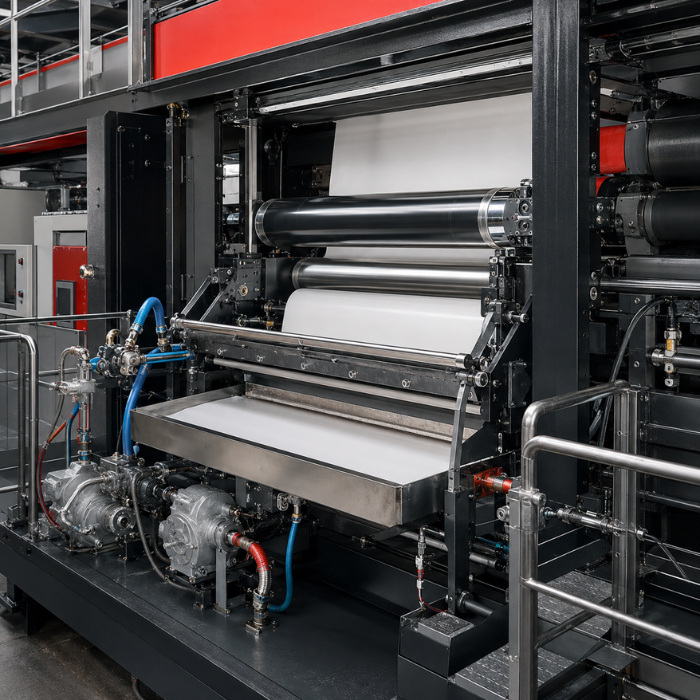

Precision Mayer Bar coating head
Uniform lacquer-coating application
Automatic roll-to-roll operation
PLC-based machine control
Adjustable coating thickness and GSM
Automatic web-tension control
Automatic edge-guiding system

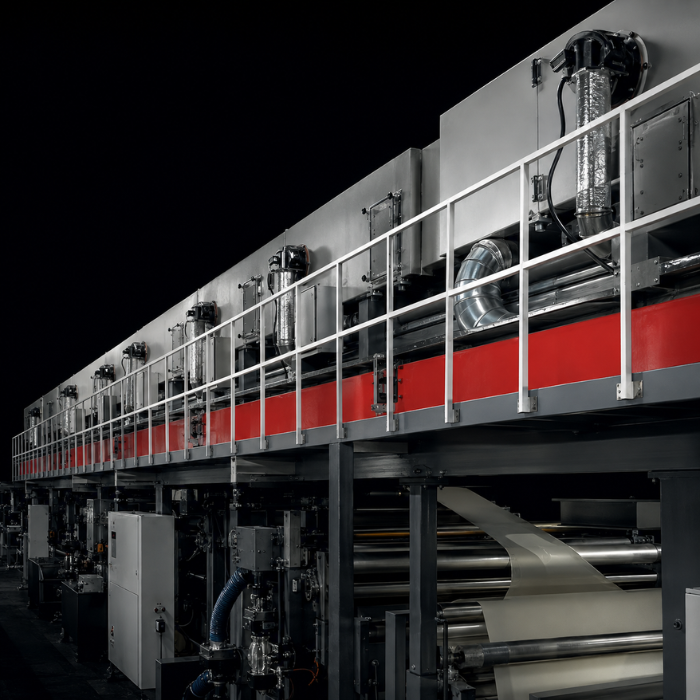

Multi-zone hot-air drying chamber
Digital temperature regulation

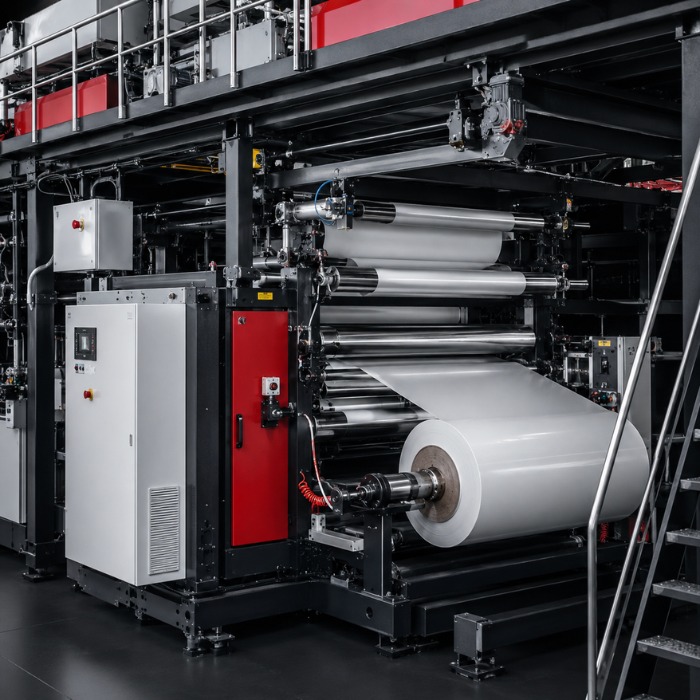

Controlled unwinding and rewinding

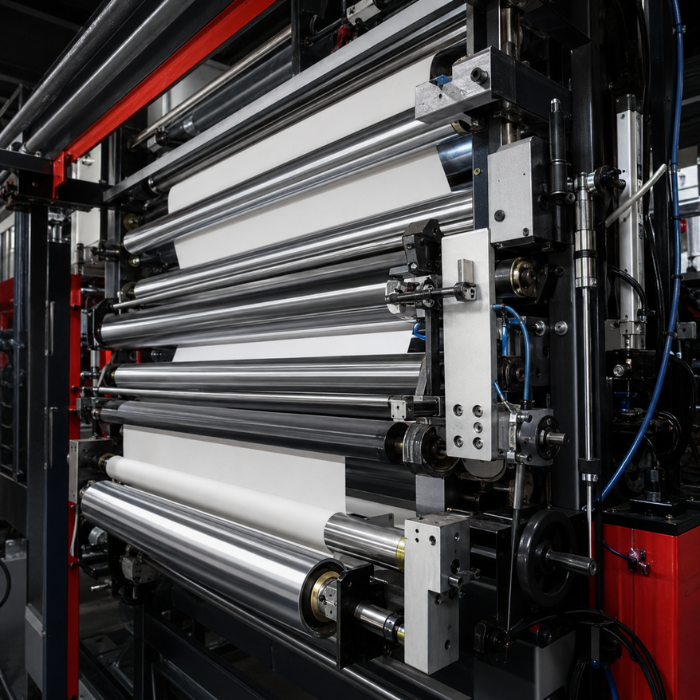

Hard chrome-plated precision rollers
Heavy-duty fabricated construction
Low coating-material wastage
Easy operation and maintenance
Customized configuration available

Suitable Materials

Paper
PVC film
BOPP film
PET and polyester film
Plastic film
Aluminium foil
Laminated packaging material
Release paper
Specialty flexible substrates

Suitable Coating Materials

Protective lacquer
Heat-seal lacquer
Water-based lacquer
Solvent-based lacquer
Acrylic coating
Primer coating
Release coating
Barrier coating
Decorative coating
Functional chemical coating

Applications

Flexible-packaging lacquer coating
PVC film coating
Aluminium-foil coating
Paper coating
Heat-seal coating
Protective film coating
Pharmaceutical foil coating
Food-packaging material coating
Primer coating
Decorative and specialty coating
Release-paper coating

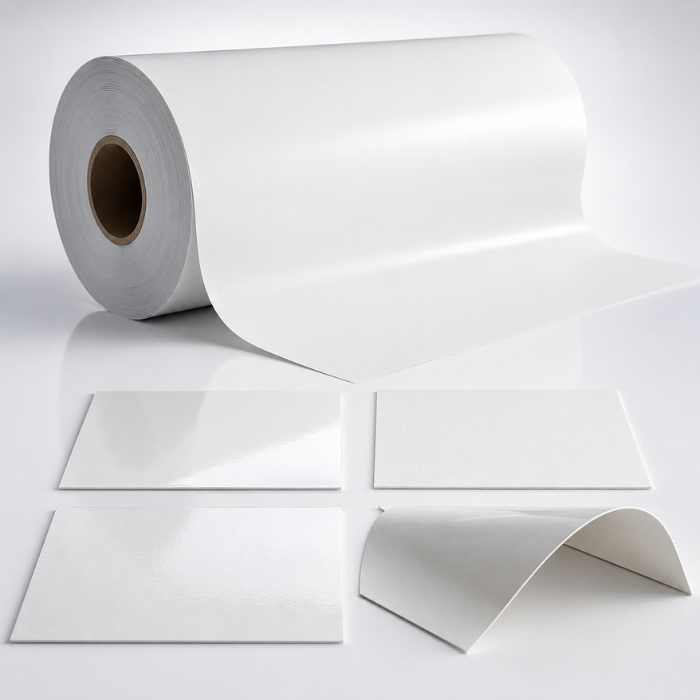

Finished Products

Lacquer-coated paper rolls
Coated PVC film
Coated BOPP and PET film
Lacquer-coated aluminium foil
Heat-seal coated foil
Pharmaceutical packaging foil
Protective coated film
Coated flexible-packaging material
Barrier-coated paper and film

Product Advantages

Provides consistent lacquer-coating thickness
Produces a smooth and uniform surface
Reduces coating-material wastage
Maintains stable web movement
Supports different flexible substrates
Provides efficient and controlled drying
Suitable for continuous industrial production
Allows adjustment according to coating formulation
Customizable for specific buyer requirements
