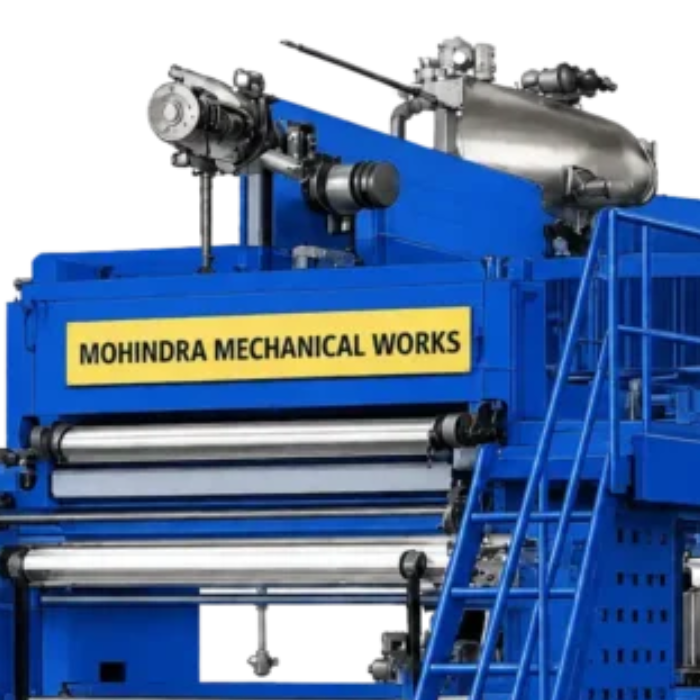

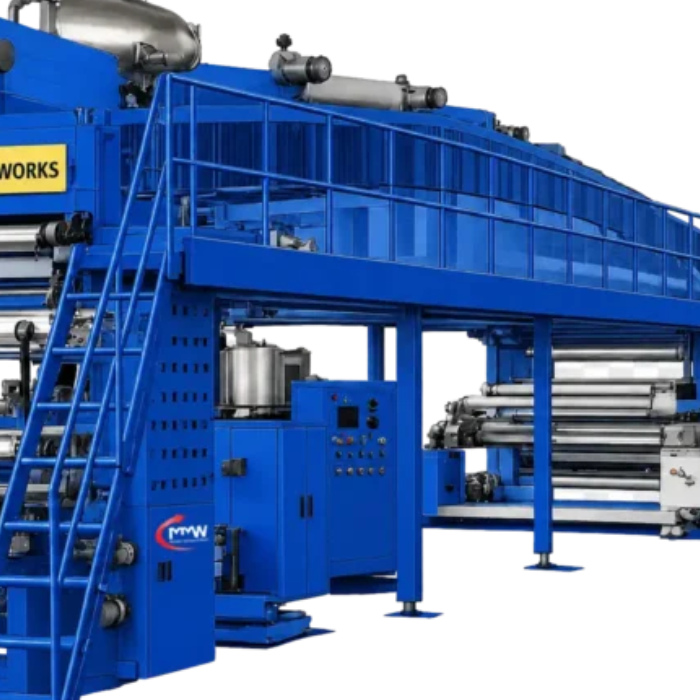

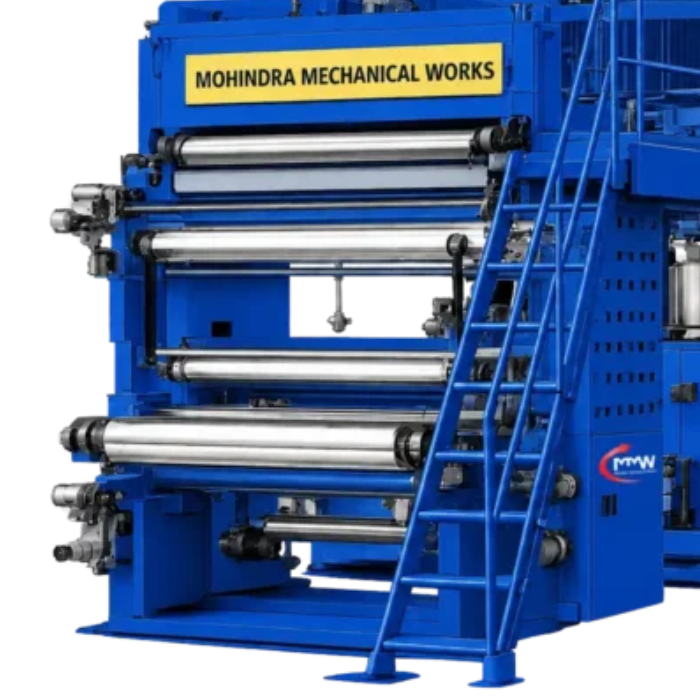

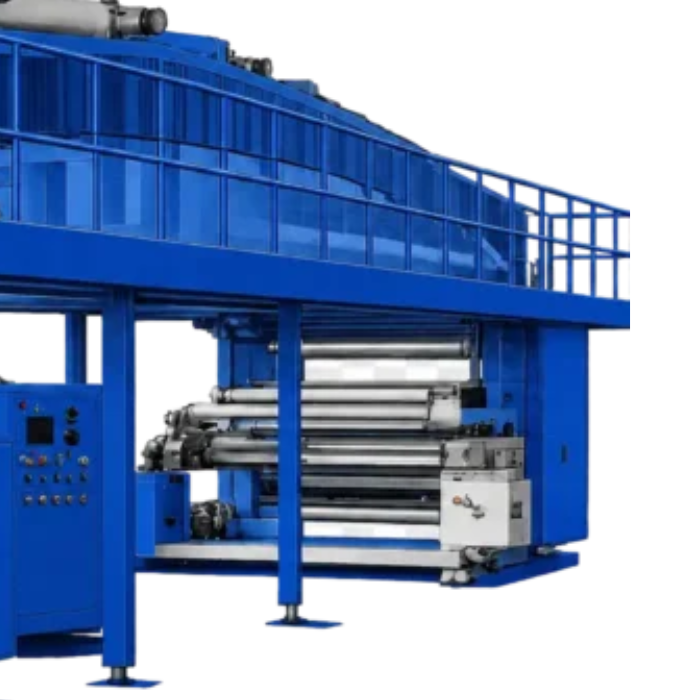

White Top Liner Paper Coating Machine

Name: White Top Liner Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

White Top Liner Paper Coating Machine Specification

Coating Transfer Method
Metering Rod / Mayer Bar

Machine Speed
150 m/m

Min. Sheet Area
12 Inch

Registration
Automatic / Manual

Sheet Thickness
50 - 300 GSM

Varnish Type
Aqueous / Pigment Dispersion

Max. Sheet Area
32 Inch

Max. Coating Area
32 Inch

Coating Format
Web / Roll

Coating Type
Pigment Coating / Water Based Barrier

Feeding Type
Roll to Roll

Power Requirement
25 kW

Product Type
Paper Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Stainless Steel

Type
Other

Weight (kg)
8500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 INCHS Inch (in)

Coating Material
Bopp Film

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
Coating, Printing, High Speed

Color
Blue & Dark Blue

Warranty
1 year

White Top Liner Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Western Europe, Middle East, Africa, Asia, Eastern Europe, Australia, Central America, North America, South America

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

White Top Liner Paper Coating Machine About

Mohindra Mechanical Works offers high-performance Automatic White Top Liner Paper Coating Machine specially engineered for applying uniform white pigment coatings, barrier dispersions, and functional coatings on Kraft paper and recycled linerboard substrates. Built with a heavy-duty steel structure, this machine enhances brightness, smoothness, and printability for premium corrugated box and linerboard manufacturing.

Equipped with a high-accuracy Mayer Bar / Metering Rod coating head, an efficient Hot Air drying system, duplex unwinder, duplex rewinder, and pneumatic tension controls, it operates seamlessly at operational speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface allows precise coating weight control, uniform tension management, and easy operation. Ideal for paper mills, packaging plants, and corrugated box manufacturers.
