Carbonless Paper Coating Machine

Name: Bopp Tape Coating Machines With Printing
Brand: MOHINDRA MECHANICAL WORKS
Price: 1500000.00 INR
Availability: InStock

Price 3000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Carbonless Paper Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Power Requirement
120 200 kW

Sheet Thickness
40 120 GSM

Registration
Automatic Web Alignment

Machine Speed
Up to 150 m/m

Max. Sheet Area
32 Inches

Coating Type
Carbonless Copy Paper Coating

Min. Sheet Area
As per Customer Requirement

Coating Format
Roll-to-Roll

Max. Coating Area
Full Web Width

Coating Transfer Method
Mayer Bar Coating

Varnish Type
Water-Based Chemical Coating

Product Type
Carbonless Paper Coating Machine

General Use
Applying Microcapsule and Developer Coatings on Carbonless Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, Coating, High Precision

Color
White, Orange or Customized

Warranty
1 year

Carbonless Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Units Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is protected with waterproof wrapping. Electrical panels, coating heads, rollers, motors and sensitive components are properly covered. Major assemblies are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging can be provided according to customer requirements.

Main Export Market(s)
Asia, Australia, North America, South America, Eastern Europe, Middle East, Western Europe, Central America, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Carbonless Paper Coating Machine About

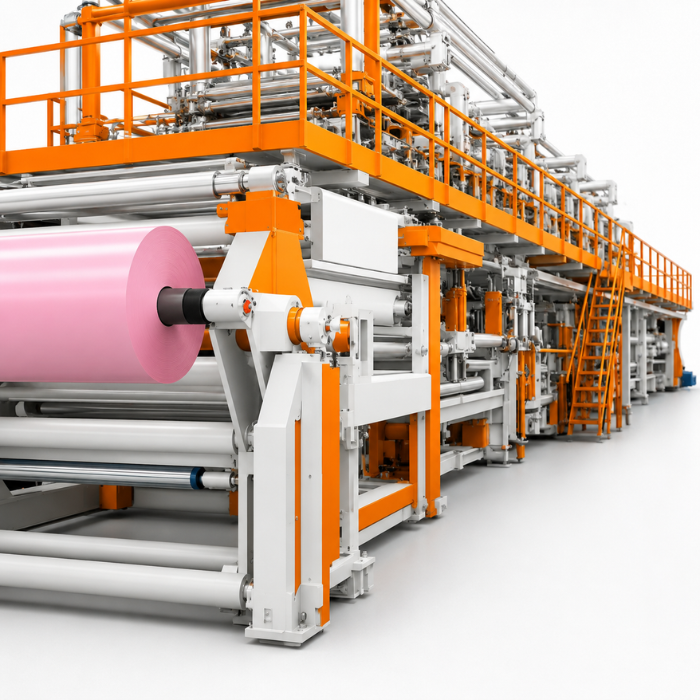

The Carbonless Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for producing NCR carbonless copy paper through controlled application of microcapsule and colour-developer coatings. Depending on the required paper grade, the machine can be configured for producing CB, CFB and CF carbonless paper.

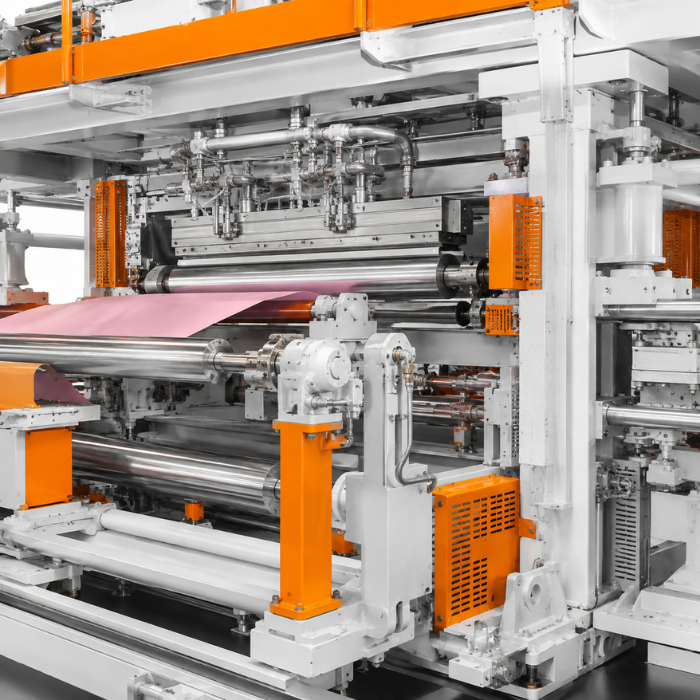

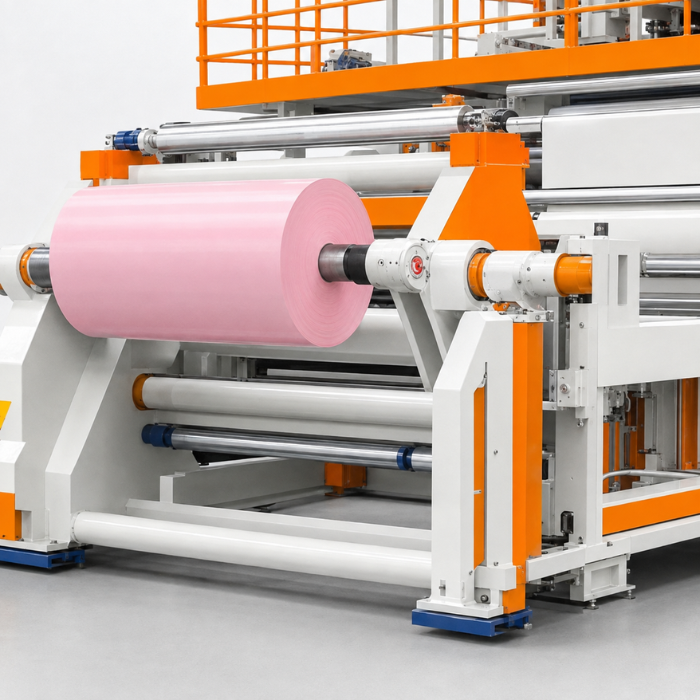

The equipment operates through a continuous roll-to-roll process comprising automatic unwinding, precision coating, controlled hot-air drying and uniform rewinding. Its Mayer Bar coating arrangement helps maintain consistent coating thickness across the paper web. The PLC control system allows operators to manage machine speed, web tension, coating operation and drying temperatures conveniently.

Automatic web guiding keeps the paper correctly aligned, while the multi-zone drying chamber removes moisture without damaging the sensitive coating. The working width, coating stations, drying length and chemical handling arrangement can be customized according to production requirements.

Key Features

Suitable for CB, CFB and CF paper production
Uniform microcapsule coating application
Precise developer-coating control
Mayer Bar coating arrangement
Automatic roll-to-roll operation
PLC-based control system
Automatic web-tension control
Automatic edge-guiding system
Multi-zone hot-air drying
Controlled temperature and airflow
Smooth and consistent rewinding
Reduced paper and chemical wastage
Heavy-duty industrial construction
Customizable coating stations and web width

Carbonless Paper Grades

Grade	Coating Arrangement
CB Coated Back	Microcapsule coating on the back side
CFB Coated Front and Back	Developer coating on front and microcapsule coating on back
CF Coated Front	Developer coating on the front side
