BOPP Tape Coating Machine

Name: BOPP Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3000000.0 INR
Availability: InStock

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BOPP Tape Coating Machine Specification

Min. Sheet Area
As per Customer Requirement

Machine Speed
Up to 150 m/m

Registration
Automatic Web Alignment

Coating Transfer Method
Gravure, Mayer Bar or Customized Precision Coating

Coating Format
Roll-to-Roll

Varnish Type
Water-Based Acrylic Adhesive

Coating Type
BOPP Pressure-Sensitive Adhesive Coating

Sheet Thickness
20 50 Microns

Max. Coating Area
Full Web Width

Max. Sheet Area
Up to 1600 mm

Feeding Type
Continuous Roll Feeding

Power Requirement
120 200 kW

Product Type
BOPP Tape Coating Machine

General Use
Manufacturing Self-Adhesive BOPP Packaging Tape

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
10000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Other

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Bopp Film

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2000 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Black, White, Red or Customized

Warranty
1 Year

BOPP Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating head, adhesive-contact rollers, drying chamber, cooling rollers, unwinders, rewinders, motors and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

BOPP Tape Coating Machine About

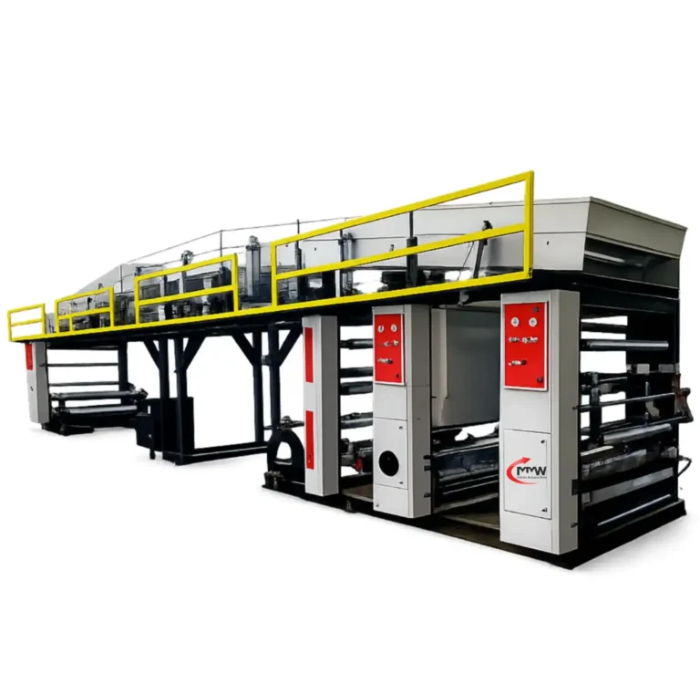

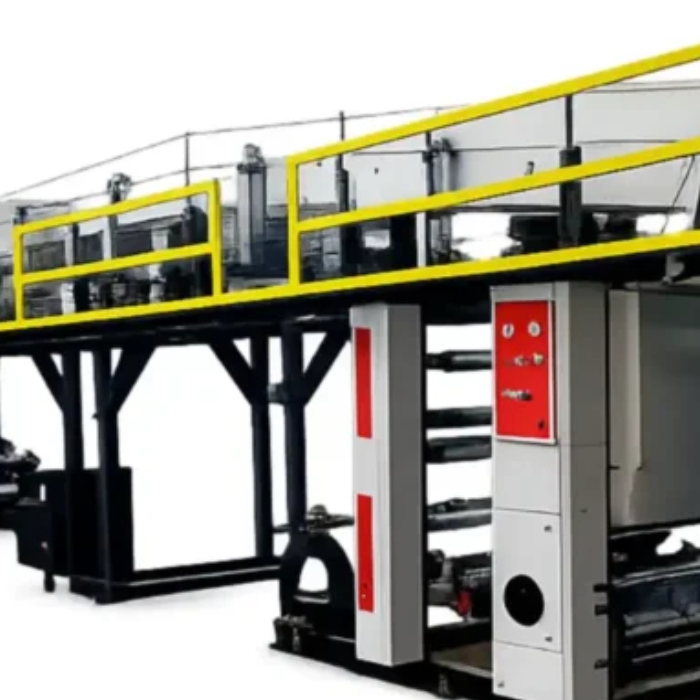

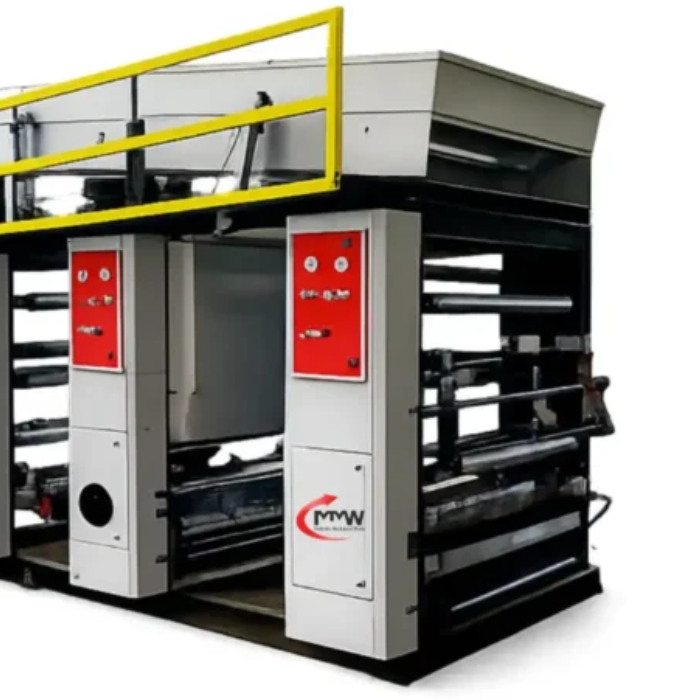

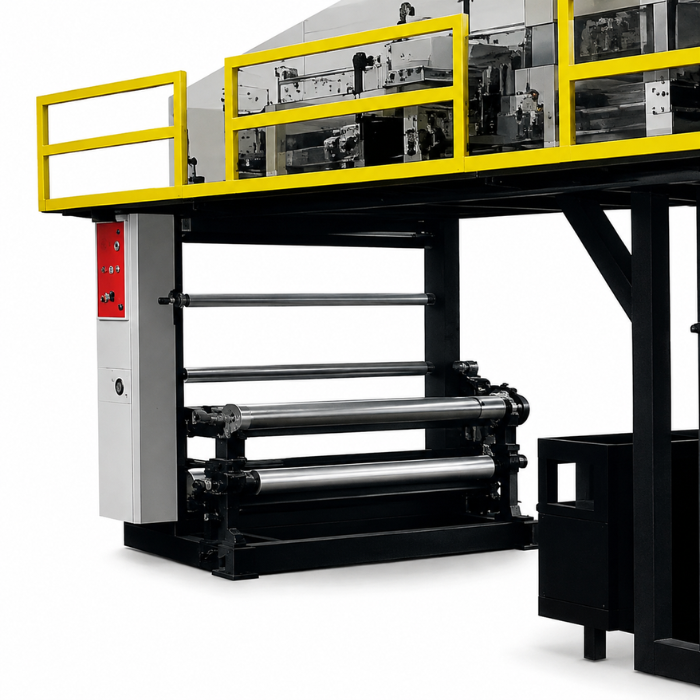

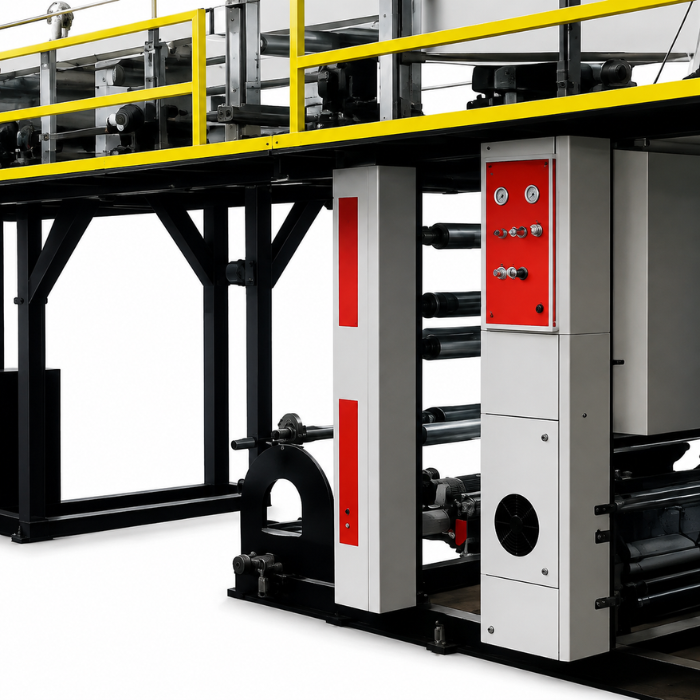

The BOPP Tape Coating Machine is designed to apply a uniform layer of pressure-sensitive adhesive onto BOPP film. Its continuous roll-to-roll system combines accurate adhesive coating, automatic web-tension control, multi-zone hot-air drying, film cooling and uniform jumbo-roll rewinding.

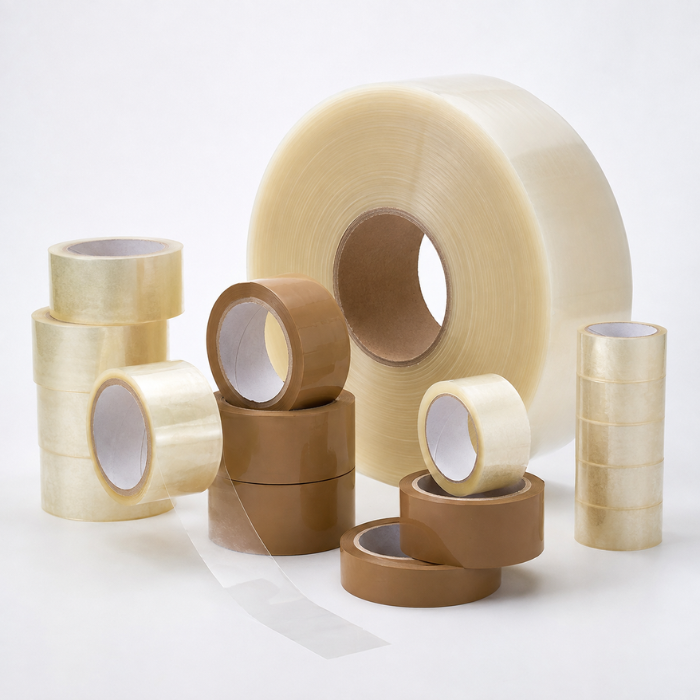

The machine helps manufacture adhesive-coated BOPP jumbo rolls for producing transparent tape, brown packing tape, printed tape, coloured tape and industrial carton-sealing tape. Working width, coating method, dryer length, production speed and adhesive-handling arrangement can be customized according to production requirements.
