Water-Resistant Paper Coating Machine

Name: BOPP Tape Adhesive Lamination Coating Plant
Brand: MOHINDRA MECHANICAL WORKS
Price: 2300000 INR
Availability: InStock

Price 3000000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Water-Resistant Paper Coating Machine Specification

Registration
Automatic Web Alignment

Min. Sheet Area
As per Customer Requirement

Sheet Thickness
30 300 GSM

Varnish Type
Water-Based Barrier Coating

Coating Transfer Method
Mayer Bar Coating

Coating Type
Water-Resistant Barrier Coating

Power Requirement
120 200 kW

Feeding Type
Continuous Roll Feeding

Machine Speed
Up to 150 m/m

Max. Coating Area
Full Web Width

Coating Format
Roll-to-Roll

Max. Sheet Area
32 Inches

Product Type
Water-Resistant Paper Coating Machine

General Use
Applying Water-Resistant Barrier Coating on Paper

Material
Stainless Steel

Type
Industrial Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
380-440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
White, Yellow or Customized

Warranty
1 Year

Water-Resistant Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, Australia, South America, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Water-Resistant Paper Coating Machine About

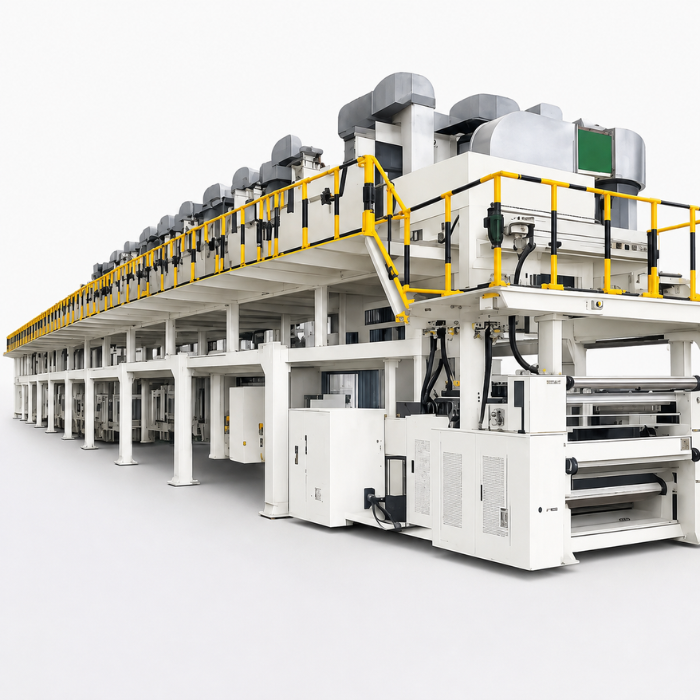

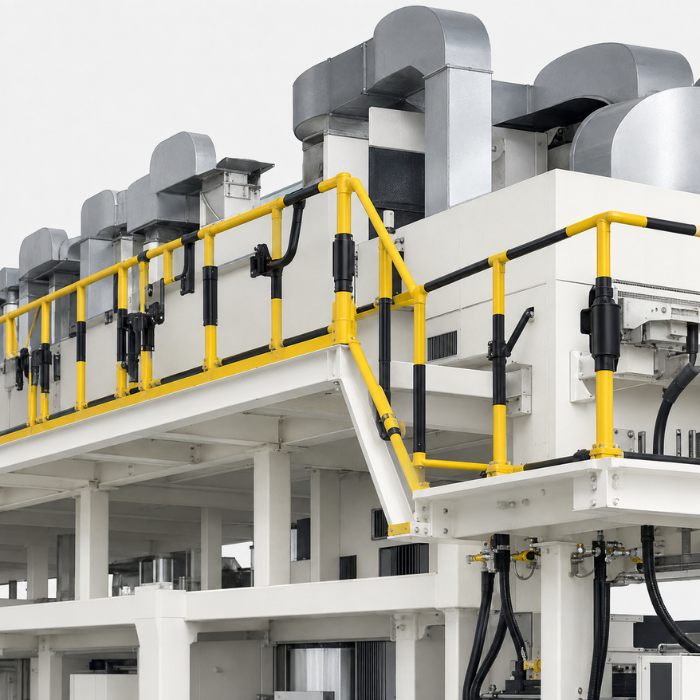

The Water-Resistant Paper Coating Machine manufactured by Mohindra Mechanical Works is designed to apply a controlled water-resistant barrier layer onto paper and paperboard rolls. The coating helps reduce water penetration and improves the papers performance in packaging, wrapping, labelling and other moisture-sensitive applications.

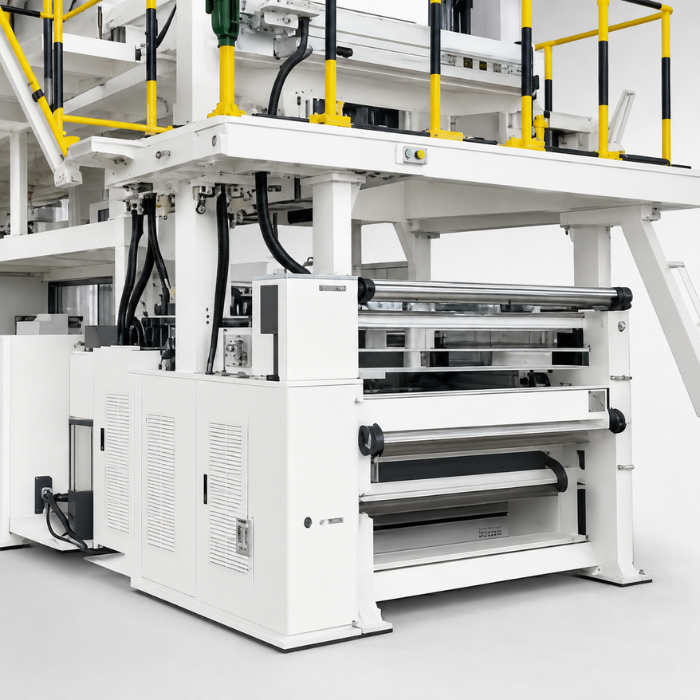

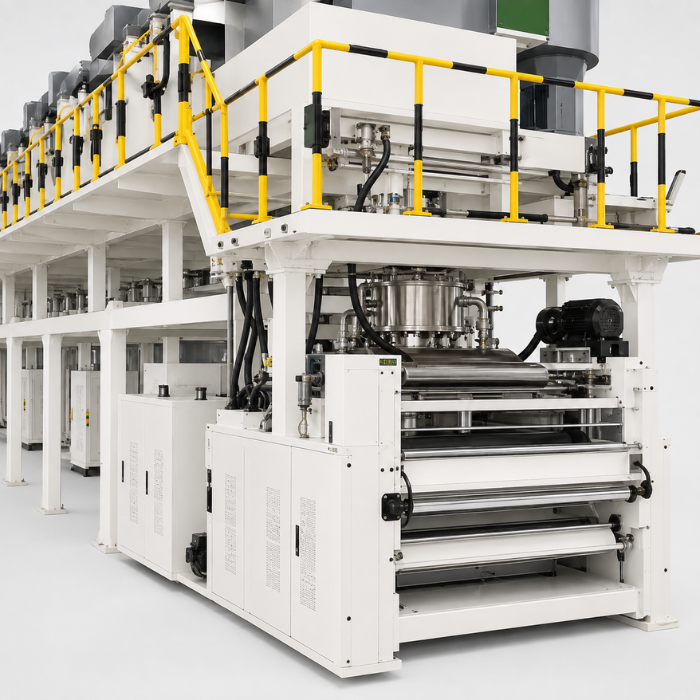

The machine operates through a continuous roll-to-roll process consisting of automatic unwinding, precision Mayer Bar coating, multi-zone hot-air drying and uniform rewinding. Its PLC control system enables the operator to manage machine speed, web tension, coating operation and drying temperature conveniently.

An automatic web-guiding arrangement maintains proper paper alignment, while the controlled drying system provides consistent moisture removal across the working width. The machine can process suitable water-based polymer, acrylic, PVA and customized barrier formulations. Working width, coating thickness, drying length and production speed can be customized according to requirements.
