Recyclable Paper Pouch Coating Machine

Name: Recyclable Paper Pouch Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Recyclable Paper Pouch Coating Machine Specification

Feeding Type
Roll to Roll

Coating Type
Sustainable Paper Pouch Coating / Recyclable Barrier Coating

Varnish Type
Heat Sealable Barrier Varnish / Aqueous Dispersion

Power Requirement
30 kW

Sheet Thickness
50 - 300 GSM

Coating Transfer Method
Metering Rod / Mayer Bar

Coating Format
Web / Roll

Min. Sheet Area
12 Inch

Registration
Automatic / Manual

Max. Sheet Area
32 INCHS Inch (in)

Max. Coating Area
32 Inch

Machine Speed
150 m/m

Product Type
Recyclable Paper Pouch Coating Machine

General Use
Paper & Sustainable Flexible Packaging Industry

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
10800 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
25 - 30 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
510 x 96 x 142 Inch (in)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Industrial Orange & Dark Slate Grey

Warranty
1 Year

Recyclable Paper Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cheque, Cash on Delivery (COD)

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Australia, Central America, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Recyclable Paper Pouch Coating Machine About

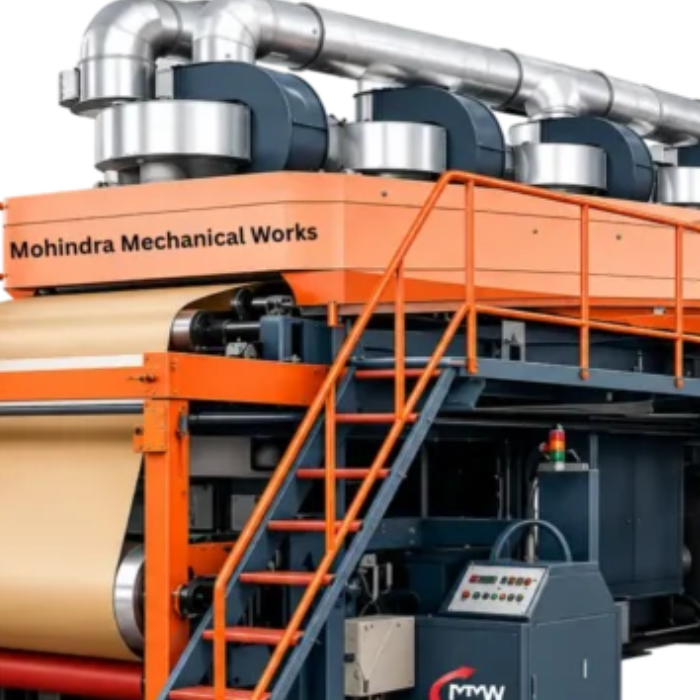

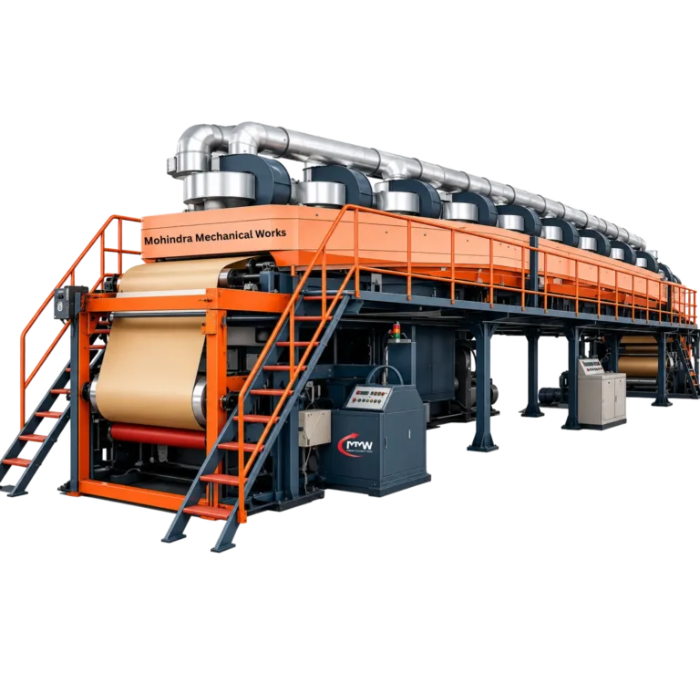

Mohindra Mechanical Works introduces the high-capacity Automatic Recyclable Paper Pouch Coating Machine, engineered to meet the growing global demand for sustainable, eco-friendly flexible packaging solutions. Designed to replace single-use plastics and non-recyclable foil multi-layers, this machine applies high-barrier, water-based dispersions, grease-proof coatings, and heat-sealable polymer layers onto paper substrates, creating 100% repulpable and recyclable pouch paper.

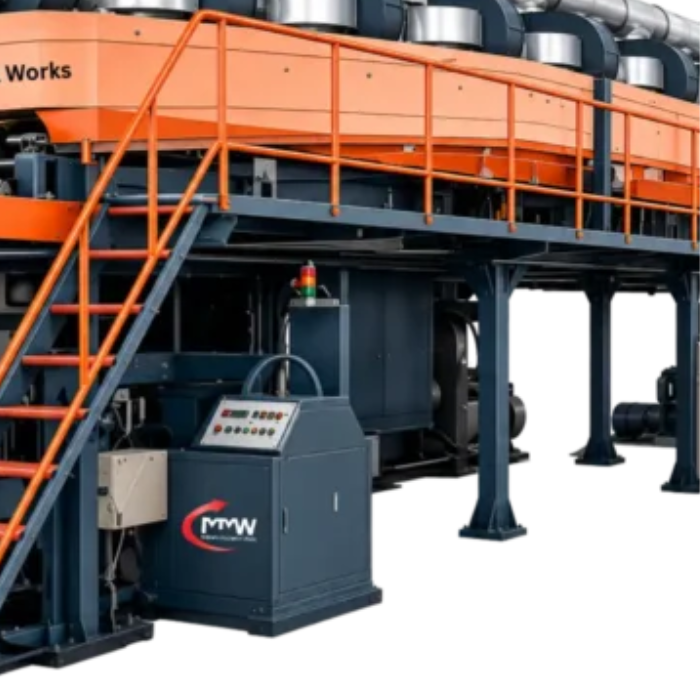

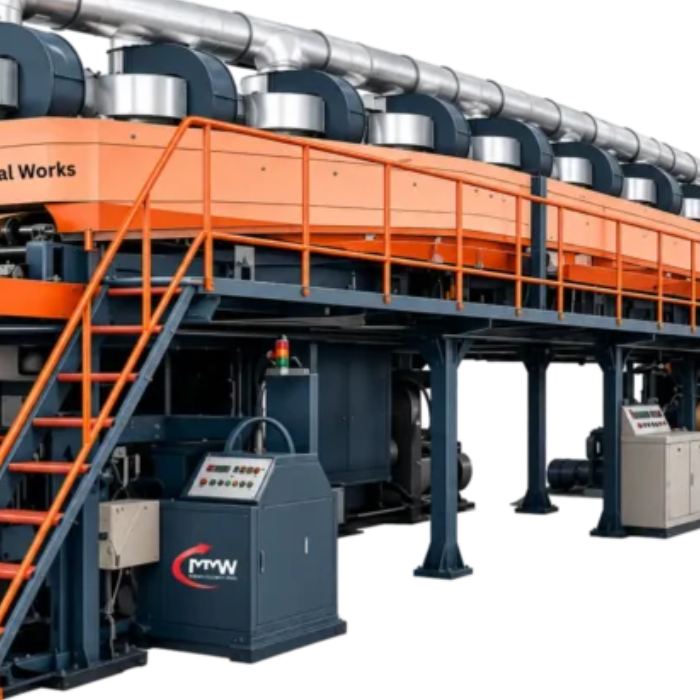

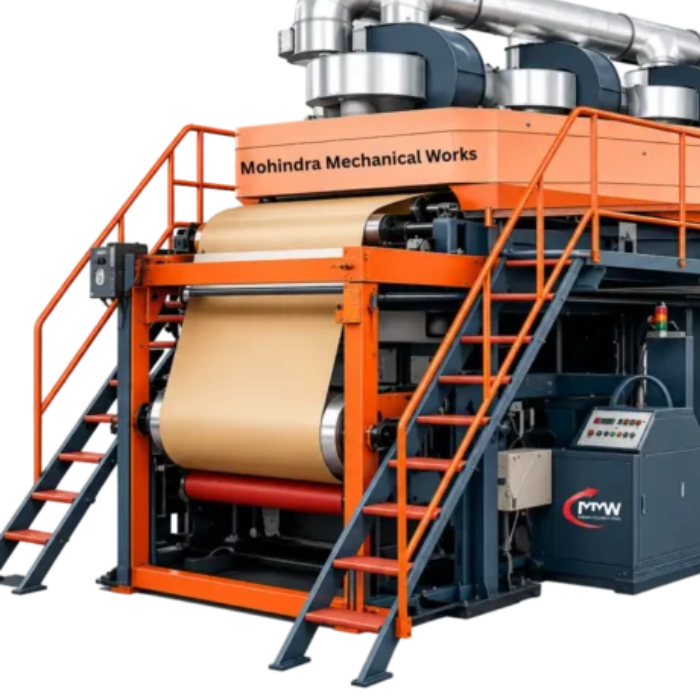

Built with an extended elevated drying tunnel, safety walkways, dual access staircases, and top-mounted hot-air exhaust blowers, it features a high-precision Mayer Bar / Metering Rod coating system, duplex unwinder, duplex rewinder, and automated web tension control. Operating at production speeds up to 150 m/min, the computerized PLC Control System with HMI touchscreen panel ensures precise coat weight distribution, high drying efficiency, and reliable continuous operation.
