Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine
Both Side Colour Paper Coating Machine

Both Side Colour Paper Coating Machine

Price 3000000.0 INR/ Piece

MOQ : 1 Piece

Both Side Colour Paper Coating Machine Specification

  • Varnish Type
  • Water-Based Colour Coating
  • Sheet Thickness
  • 40 300 GSM
  • Machine Speed
  • Up to 150 m/m
  • Registration
  • Automatic Web Alignment
  • Coating Transfer Method
  • Dual Mayer Bar Coating
  • Max. Coating Area
  • Full Web Width on Both Sides
  • Coating Format
  • Roll-to-Roll
  • Max. Sheet Area
  • 32 Inches
  • Power Requirement
  • 150 250 kW
  • Feeding Type
  • Continuous Roll Feeding
  • Min. Sheet Area
  • As per Customer Requirement
  • Coating Type
  • Double-Side Colour Paper Coating
  • Product Type
  • Both Side Colour Paper Coating Machine
  • General Use
  • Applying Coloured Coating on Both Sides of Paper
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 14000 Kilograms (kg)
  • Coating Speed
  • Up to 150 m/m
  • Coating Head
  • Mayer Bar
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 150 250 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 1800 450 500 Centimeter (cm)
  • Feature
  • High Speed, High Precision, Coating, Low Energy Consumption
  • Color
  • Blue, White or Customized
  • Warranty
  • 1 Year


Both Side Colour Paper Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Electrical panels, coating stations, rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe road or sea transportation. Export-worthy packaging can be supplied according to customer requirements.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery

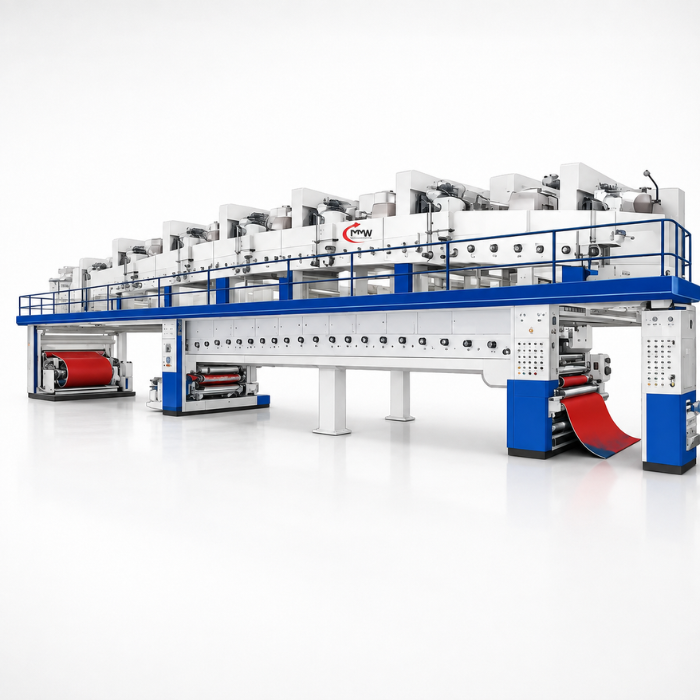

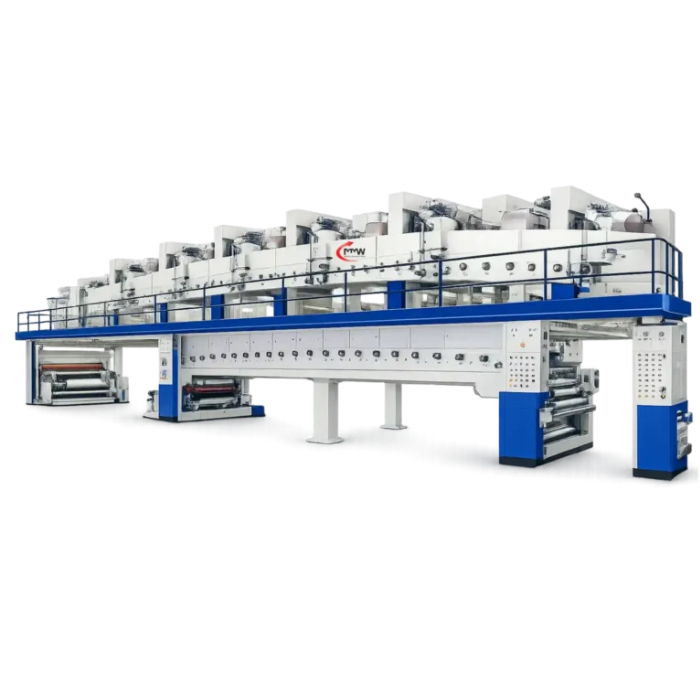

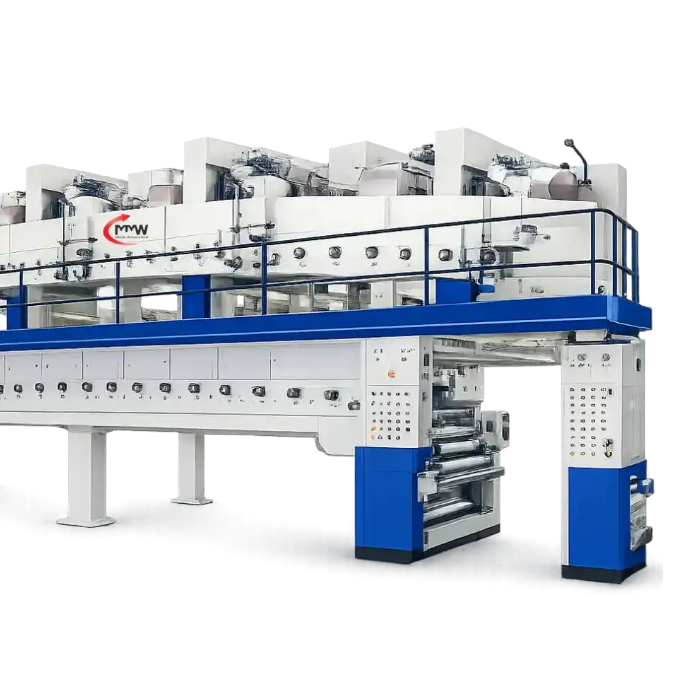

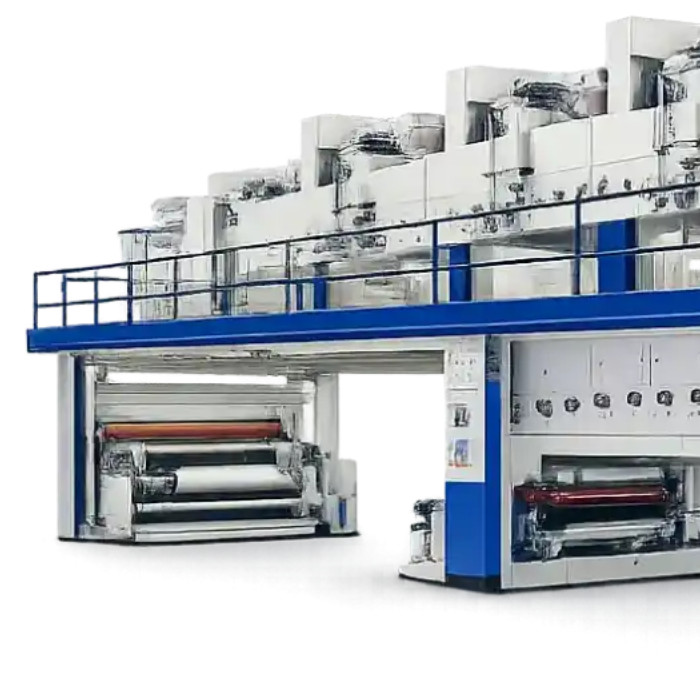

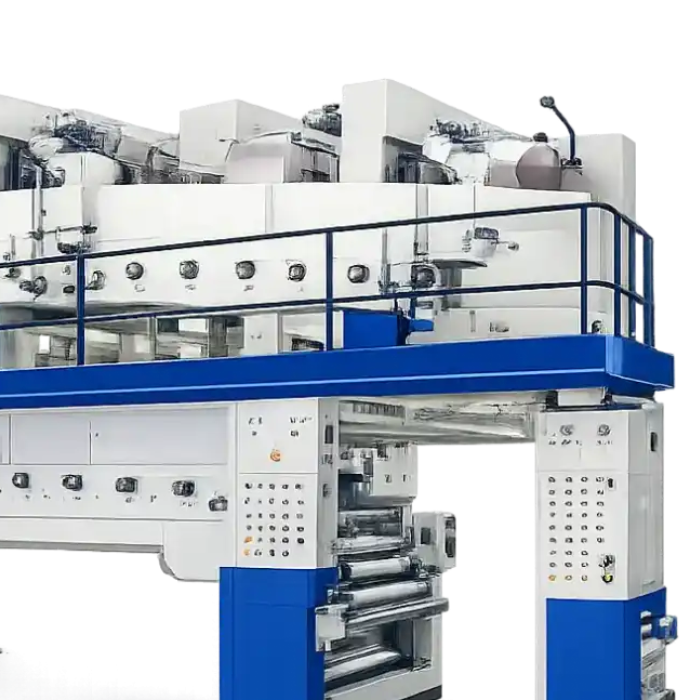

About Both Side Colour Paper Coating Machine

The Both Side Colour Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a smooth and uniform coloured coating to both sides of paper and paperboard rolls. The machine can be configured to apply the same shade or different colours on each side according to the required finished product.

The machine operates through a continuous roll-to-roll process comprising automatic unwinding, first-side coating, controlled drying, reverse-side coating, final drying and uniform rewinding. Dual Mayer Bar coating arrangements help maintain consistent coat weight, colour coverage and surface finish on both sides of the paper.

Its PLC-based control system allows the operator to regulate machine speed, web tension, coating parameters and drying temperature. Automatic web guiding maintains accurate paper alignment throughout production. Working width, number of coating stations, drying length, colour-circulation system and production speed can be customized.

Key Features

  • Uniform colour coating on both paper sides
  • Same or different colour application options
  • Separate coating arrangement for each side
  • Accurate coating-thickness control
  • PLC-based automatic operation
  • Automatic web-tension control
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chamber
  • Individual temperature control for drying zones
  • Controlled colour circulation
  • Smooth and uniform rewinding
  • Reduced colour and paper wastage
  • Heavy-duty industrial construction
  • Customized working width available

Suitable Raw Materials

  • Wood-free paper
  • Kraft paper
  • Art paper
  • Decorative paper
  • Label paper
  • Paperboard
  • Writing and printing paper
  • Specialty paper rolls

Suitable Coating Materials

  • Water-based pigment coating
  • Water-based colour dispersion
  • Acrylic colour coating
  • PVA-based colour coating
  • Clay and pigment formulation
  • Fluorescent colour coating
  • Customized coloured formulation

Finished Products

  • Double-side coloured paper rolls
  • Decorative craft paper
  • Gift-wrapping paper
  • Coloured label stock
  • File and folder paper
  • Notebook-cover paper
  • Invitation and greeting-card paper
  • Shopping-bag paper
  • Packaging paper
  • Specialty printing paper
