Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine
Double Side Silicone Coating Machine

Double Side Silicone Coating Machine

Price 3500000.0 INR/ Piece

MOQ : 1 Piece

Double Side Silicone Coating Machine Specification

  • Coating Type
  • Double-Side Silicone Release Coating
  • Power Requirement
  • 160 250 kW
  • Feeding Type
  • Continuous Roll Feeding
  • Coating Format
  • Roll to Roll
  • Varnish Type
  • Solventless, Emulsion or UV-Curable Silicone
  • Min. Sheet Area
  • As per Customer Requirement
  • Coating Transfer Method
  • Precision Multi-Roll Coating
  • Registration
  • Automatic Web Alignment
  • Max. Coating Area
  • Both Sides Across Full Web Width
  • Sheet Thickness
  • Paper: 40 250 GSM; Film: 12 200 Microns
  • Machine Speed
  • Up to 150 m/m
  • Max. Sheet Area
  • 32 Inch
  • Product Type
  • Double Side Silicone Coating Machine
  • General Use
  • Applying Silicone Release Coating on Both Sides of Paper or Film
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 16000 Kilograms (kg)
  • Coating Speed
  • Up to 150 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 160 250 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 2200 500 520 Centimeter (cm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • Green, White or Customized
  • Warranty
  • 1 Year


Double Side Silicone Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Dual coating assemblies, precision rollers, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for transportation by road or sea.
  • Main Export Market(s)
  • Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Double Side Silicone Coating Machine

The Double Side Silicone Coating Machine applies a controlled silicone layer to both sides of paper or film in one continuous process. Independent coating and curing arrangements help maintain uniform coat weight and the required release value on each surface. The finished material is suitable for adhesive tapes, labels, hygiene products and industrial release liners.

Key Features

  • Silicone coating on both substrate surfaces
  • Independent coat-weight adjustment
  • Same or differential release values
  • Precision dual-coating stations
  • Automatic roll-to-roll operation
  • PLC-based machine control
  • Automatic web-tension management
  • Automatic edge-guiding system
  • Multi-zone drying and curing system
  • Adjustable temperature and airflow
  • Stainless steel coating-contact components
  • Smooth and wrinkle-free rewinding
  • Reduced silicone and substrate wastage
  • Customized working width available

Suitable Raw Materials

  • Glassine paper
  • Kraft release paper
  • Super-calendered paper
  • Clay-coated paper
  • Poly-coated paper
  • PET film
  • BOPP film
  • Polyester film
  • PE film
  • Specialty release-liner material

Suitable Coating Materials

  • Solventless silicone
  • Water-based silicone emulsion
  • Thermal-curing silicone
  • UV-curable silicone
  • Platinum-catalysed silicone
  • Fluorosilicone coating
  • Low-release silicone formulation
  • High-release silicone formulation
  • Differential-release silicone systems
  • Customized release coating

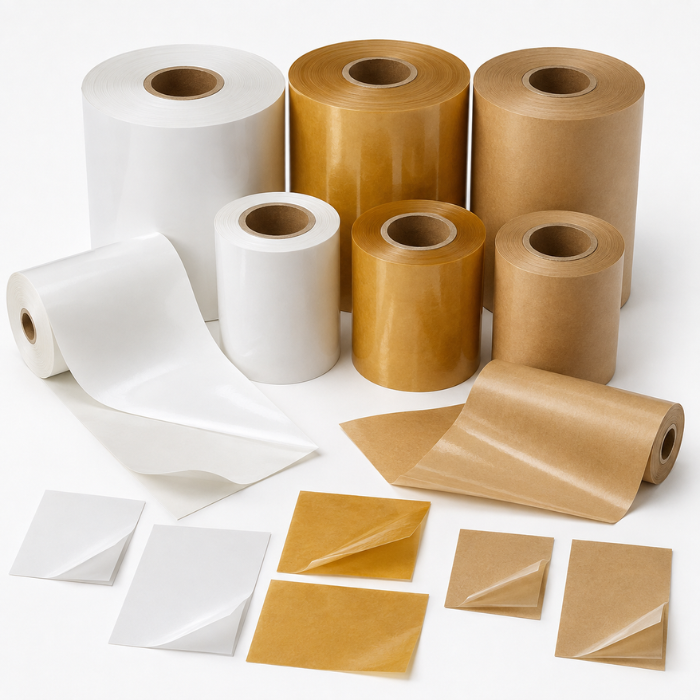

Finished Products

  • Double-side silicone release paper
  • Double-side release-film rolls
  • Double-sided tape liners
  • Transfer-tape release liners
  • Foam-tape backing liners
  • Label and sticker liners
  • Medical-tape release liners
  • Hygiene-product release paper
  • Protective-film release liners
  • Industrial adhesive liners
  • Composite release liners
  • Die-cutting release material
