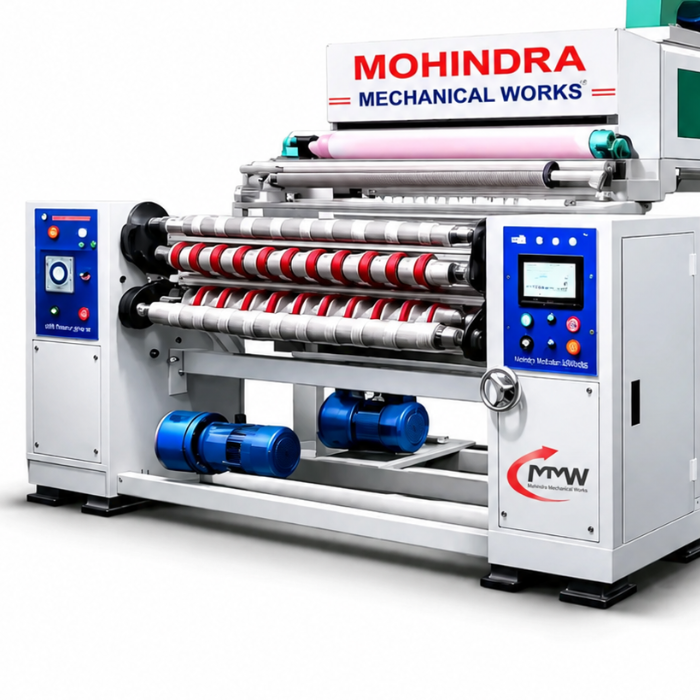

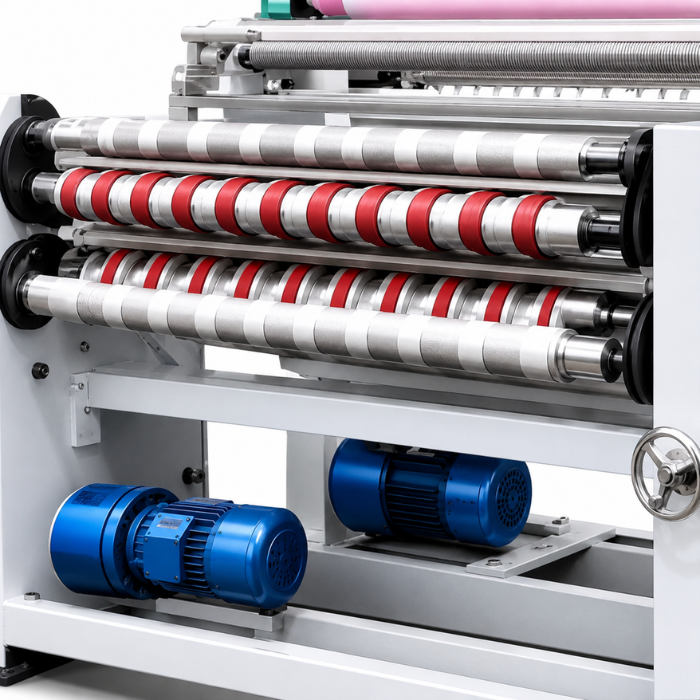

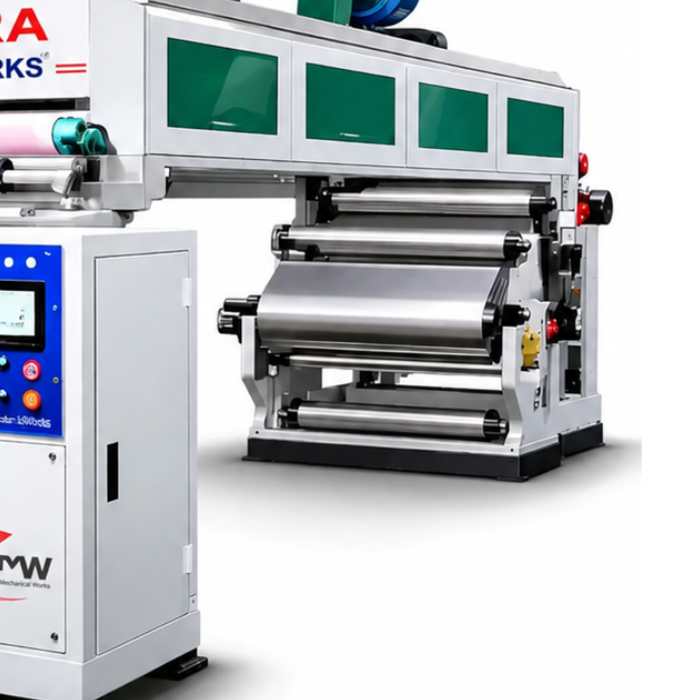

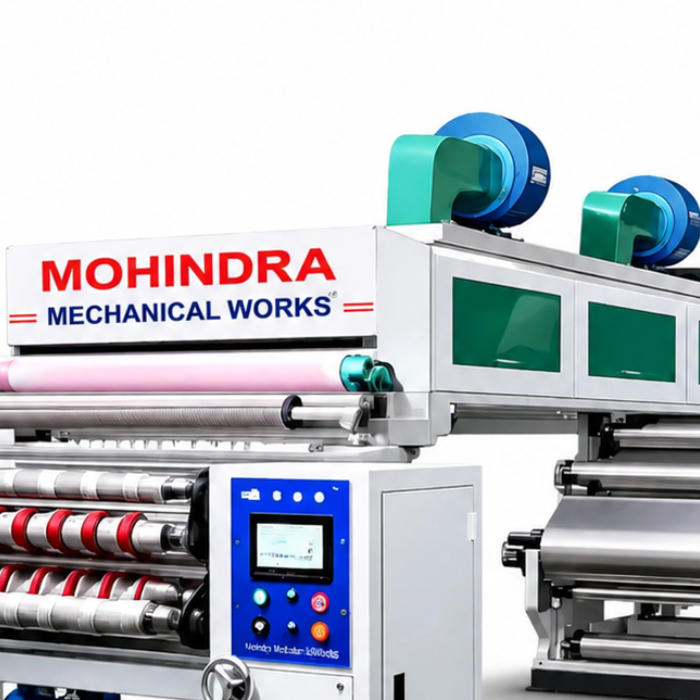

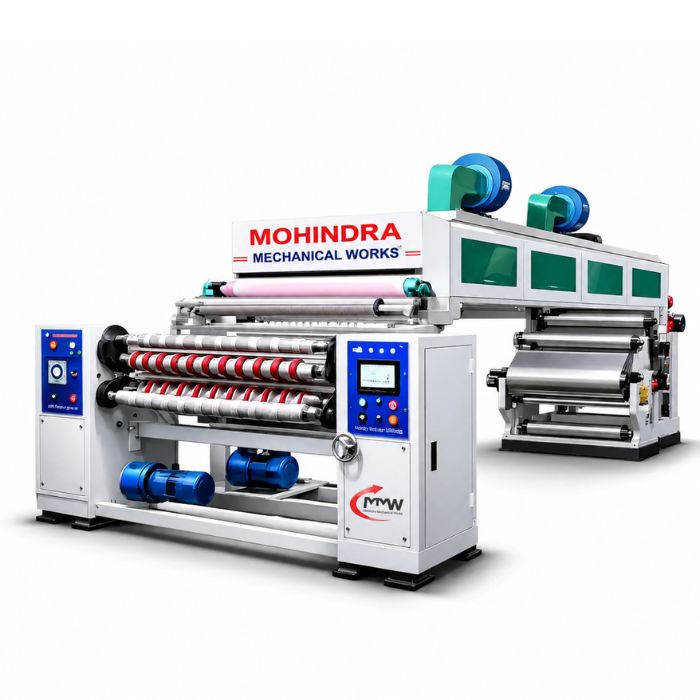

Brown Tape Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Brown Tape Coating Machine Specification

Min. Sheet Area
As per Customer Requirement

Coating Format
Roll to Roll

Registration
Automatic Web Alignment

Varnish Type
Water-Based Acrylic Adhesive

Coating Type
Brown BOPP Pressure-Sensitive Adhesive Coating

Max. Sheet Area
Up to 1600 mm

Feeding Type
Continuous Roll Feeding

Coating Transfer Method
Gravure, Mayer Bar or Customized Precision Coating

Power Requirement
100 180 kW

Sheet Thickness
20 50 Microns

Machine Speed
Up to 120 m/m

Max. Coating Area
Full Web Width

Product Type
Brown Tape Coating Machine

General Use
Manufacturing Brown Self-Adhesive BOPP Packing Tape

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
10000 Kilograms (kg)

Coating Speed
Up to 120 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 480 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
White, Green or Customized

Warranty
1 Year

Brown Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating head, adhesive-contact rollers, drying chamber, cooling rollers, unwinders, rewinders, motors, drives and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Africa, Central America, Australia, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Brown Tape Coating Machine About

The Brown Tape Coating Machine is designed to apply a uniform layer of pressure-sensitive adhesive onto brown BOPP film. Its continuous roll-to-roll system combines controlled film unwinding, precision adhesive coating, hot-air drying, cooling and uniform jumbo-roll rewinding.

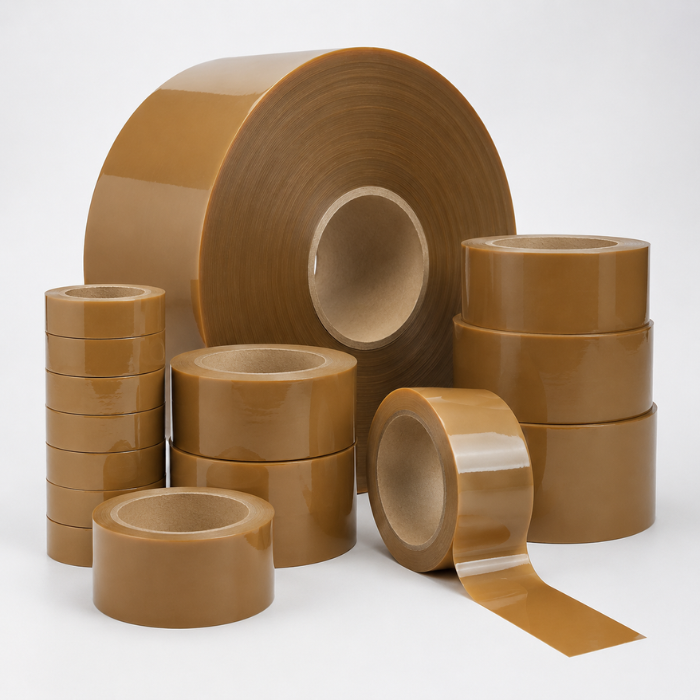

The machine helps manufacture brown adhesive jumbo rolls that can be converted into carton-sealing tape, packing tape, courier tape, industrial tape and other packaging products. Working width, production speed, dryer length and coating system can be customized according to the required output and adhesive formulation.
