Registered UV Paper Coating Machine

Name: Release Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1050000.00 INR
Availability: InStock

Price 1500000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Registered UV Paper Coating Machine Specification

Registration
Automatic Registered Control

Max. Coating Area
32 Inch

Coating Type
Registered UV / Spot Coating

Feeding Type
Roll to Roll

Machine Speed
150 m/m

Max. Sheet Area
32 Inch

Sheet Thickness
50 - 300 GSM

Coating Format
Web / Roll

Min. Sheet Area
12 Inch

Power Requirement
25 kW

Varnish Type
UV Varnish / Aqueous Varnish

Coating Transfer Method
Metering Rod / Mayer Bar

Product Type
Registered UV Coating Machine

General Use
Paper & Packaging Coating Industry

Material
Other

Type
Paper Coating Machine, Pvc Coating Machine

Weight (kg)
8500 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
420 x 96 x 120 Inch (in)

Feature
Low Energy Consumption, High Precision, High Speed

Color
Red & Grey

Warranty
1 year

Registered UV Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Africa, South America, Eastern Europe, Middle East, Asia, Australia, Central America, North America, Western Europe

Main Domestic Market
Delhi

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Registered UV Paper Coating Machine About

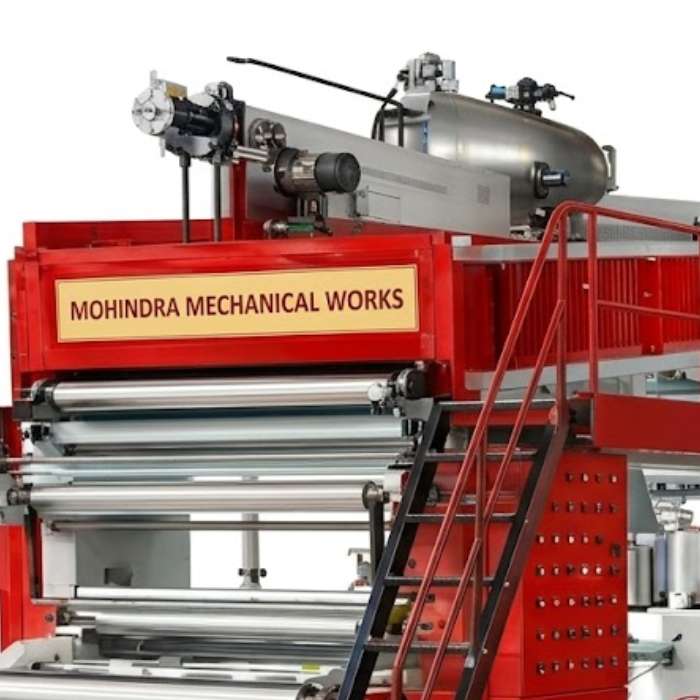

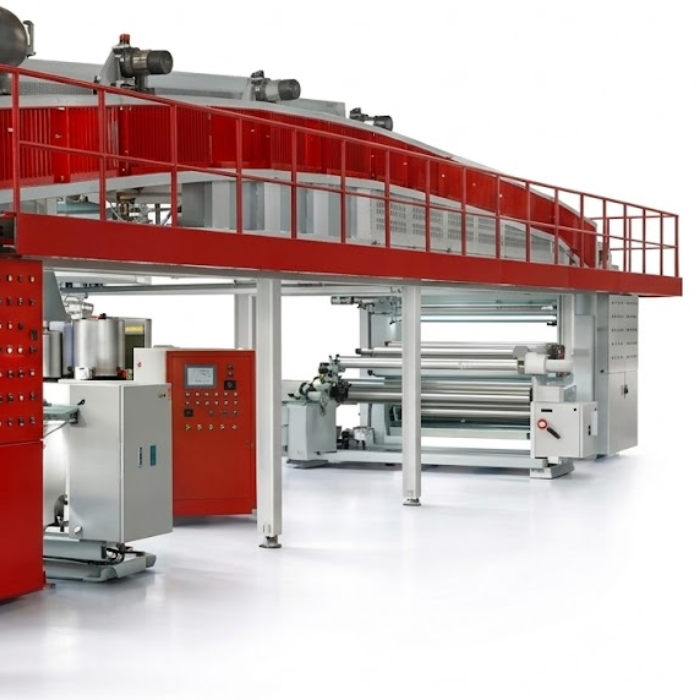

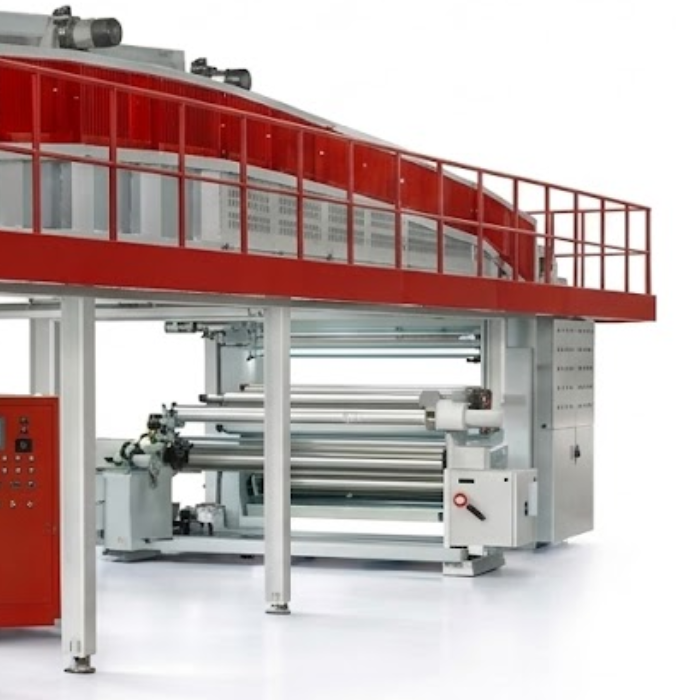

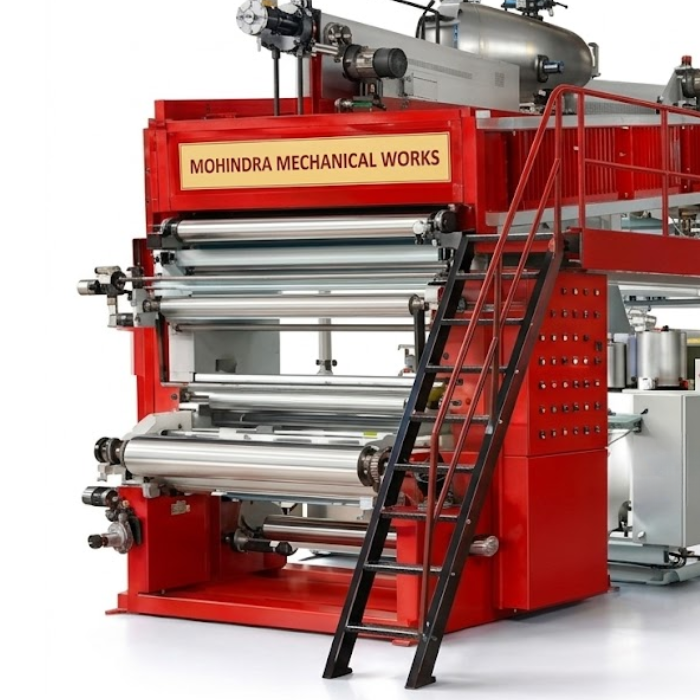

Mohindra Mechanical Works presents the heavy-duty Automatic Registered UV Paper Coating Machine, designed for high-precision registered UV varnish and spot coating applications on paper and packaging substrates. Built with an ultra-rigid steel frame structure, this machine guarantees perfect registration accuracy, sharp edge definition, and high-gloss print finishing for commercial packaging and specialty products.

Equipped with a high-accuracy Mayer Bar / Metering Rod coating head, an integrated UV Curing & Hot Air drying system, duplex unwinder, duplex rewinder, and pneumatic tension control, it runs smoothly at speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface offers automated registration control, precise coating weight management, and reliable operation.
