Air Knife Paper Coating Machine

Name: Masking Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 3800000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Air Knife Paper Coating Machine Specification

Feeding Type
Roll Feeding

Registration
Automatic Web Alignment

Coating Transfer Method
Air Knife Metering System

Max. Sheet Area
42 Inches

Coating Format
Continuous Web

Max. Coating Area
Continuous Roll-to-Roll Coating

Power Requirement
Three-Phase Industrial Power Supply

Min. Sheet Area
12 Inches

Sheet Thickness
40 400 GSM

Machine Speed
150 m/min m/m

Varnish Type
Water-Based

Coating Type
Single-Side Paper Coating

Product Type
Coating Machine

General Use
Paper and paperboard coating

Material
Other

Type
Other

Weight (kg)
8500 kg Approx. Kilograms (kg)

Coating Speed
Up to 150 m/min m/m

Coating Head
Gravure Roller

Coating Width
Up to 1550 mm Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 100 150 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
280-420 Volt (v)

Humidification System
No

Glue Type
Solvent Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 mm Millimeter (mm)

Unwinding Width
Up to 1600 mm Millimeter (mm)

Dimension (L*W*H)
12000 3500 4200 mm Millimeter (mm)

Feature
Low Energy Consumption, High Speed, Coating

Color
Blue and White

Warranty
1 Year

Air Knife Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Air Knife Paper Coating Machine is packed using moisture-resistant protective wrapping, wooden supports and export-worthy packaging. Electrical panels, rollers, coating components and other sensitive parts are separately protected to help prevent damage during handling and transportation.

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system with quality-checked mechanical, electrical and safety components. Applicable certification documents can be provided according to the selected machine configuration and order requirements.

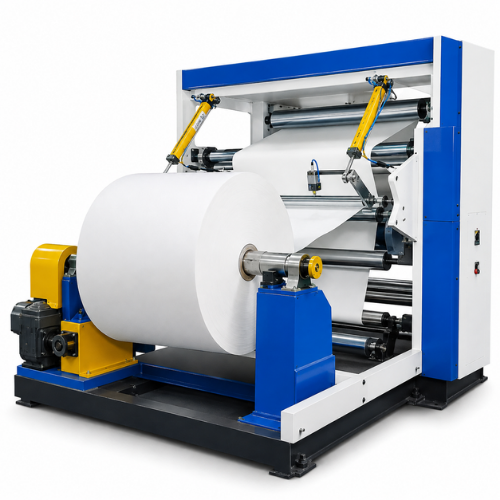

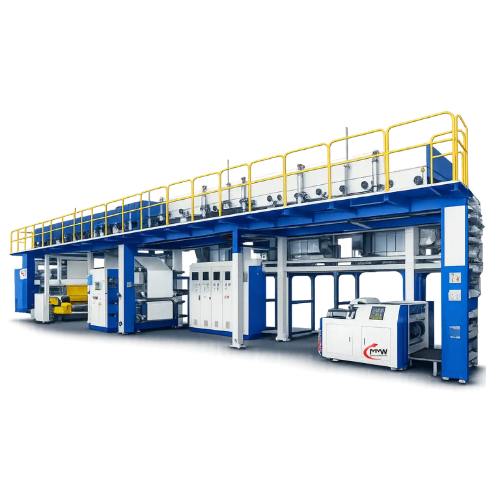

About Air Knife Paper Coating Machine

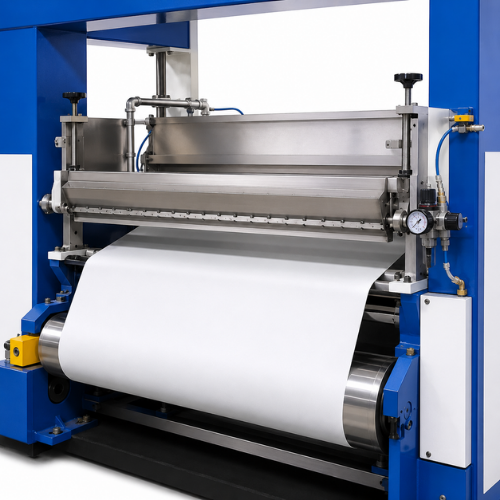

The Air Knife Paper Coating Machine manufactured by Mohindra Mechanical Works is designed to apply a smooth and accurately controlled coating layer on paper and paperboard. Its air knife system uses a regulated stream of air to remove excess coating material and maintain a uniform coating thickness across the complete web width.
This machine is suitable for water-based barrier coatings, pigment coatings, starch, latex and other functional paper-coating applications.

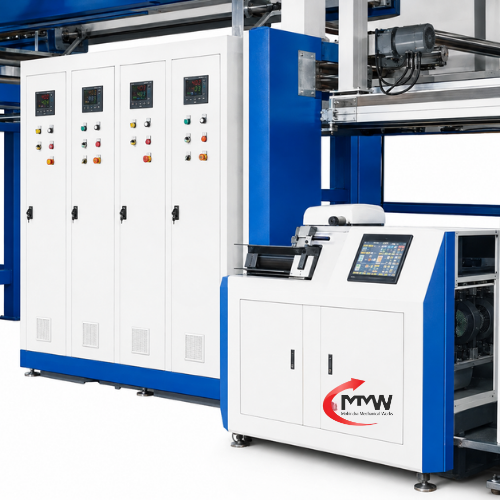

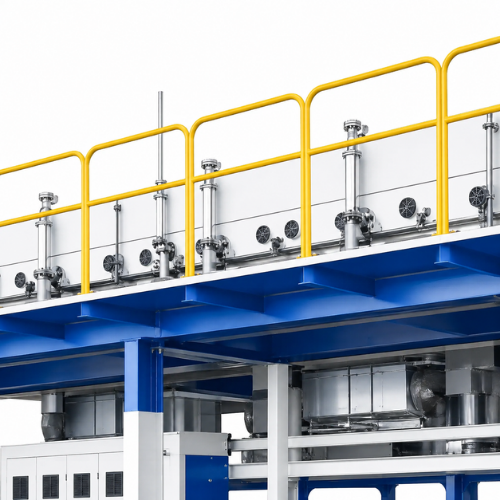

It incorporates an automatic unwinding unit, precision coating section, adjustable air knife, multi-zone hot-air drying chamber and controlled rewinding system. PLC and HMI controls allow the operator to manage machine speed, drying temperature, web tension and coating parameters conveniently. Its heavy-duty construction provides stable, low-vibration operation during continuous production. Machine width, drying length, heating method and operating speed can be customized according to the buyers paper grade and production requirements.
