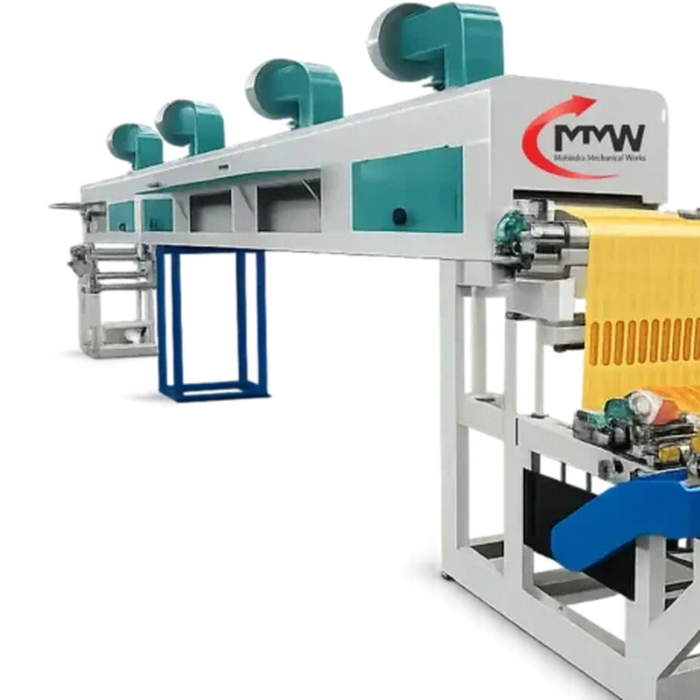

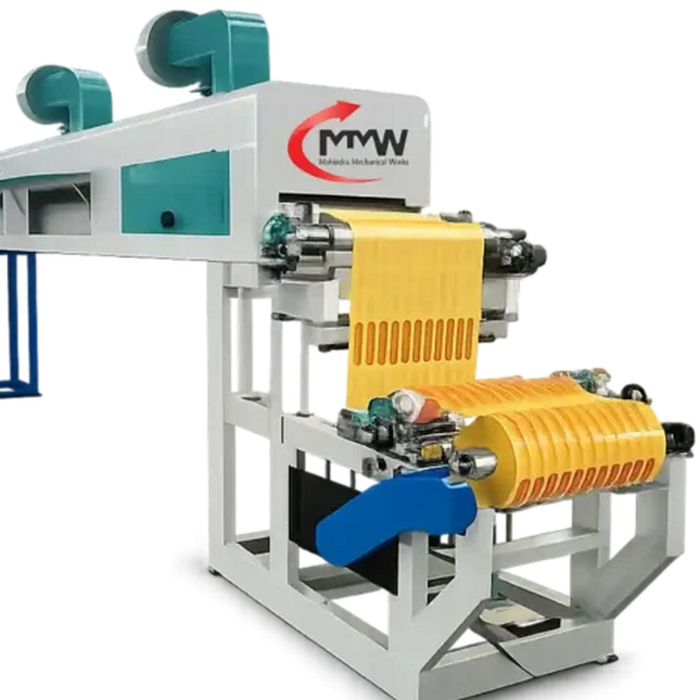

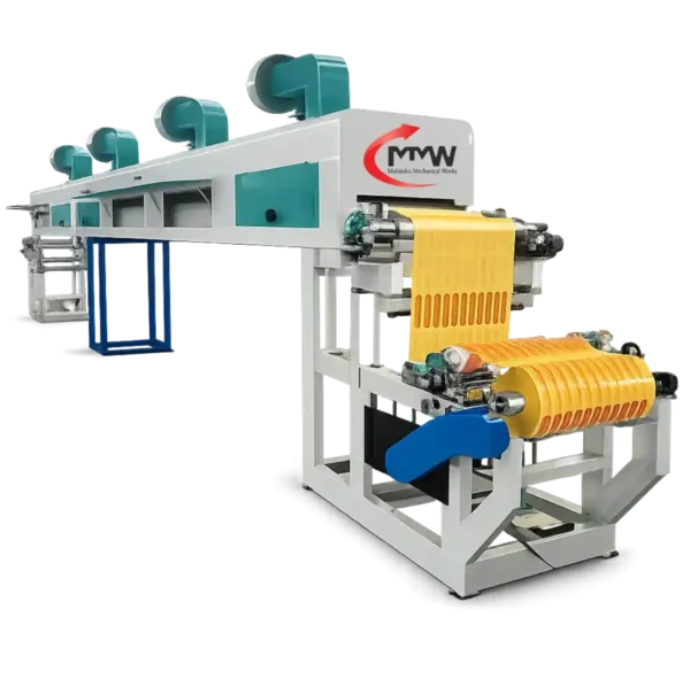

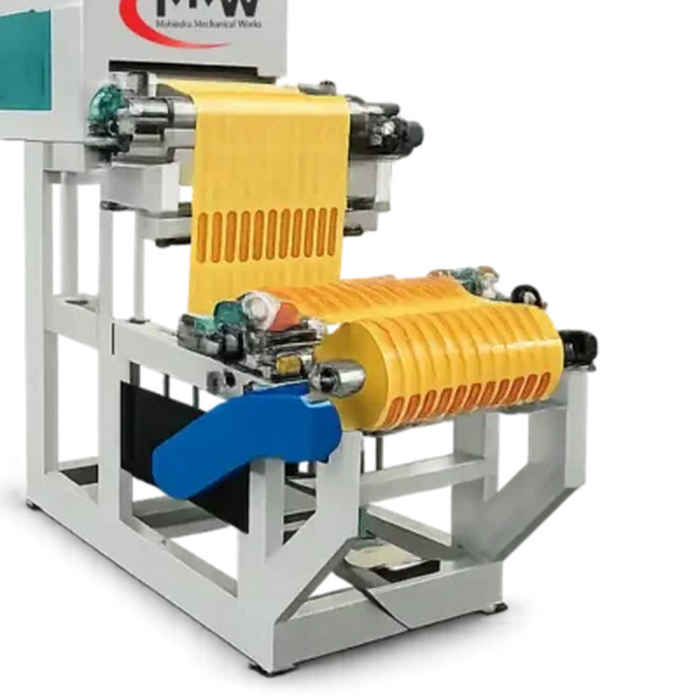

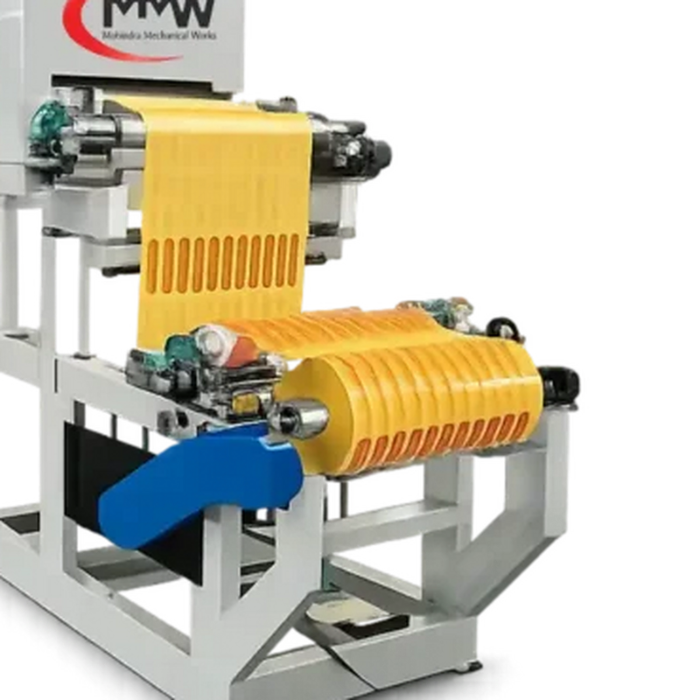

Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine
Duct Tape Coating Machine

Duct Tape Coating Machine

Price 2000000.0 INR/ Piece

MOQ : 1 Piece

Duct Tape Coating Machine Specification

  • Power Requirement
  • 100 170 kW
  • Max. Coating Area
  • Full Web Width
  • Machine Speed
  • Up to 100 m/m
  • Registration
  • Automatic Web Alignment
  • Feeding Type
  • Continuous Roll Feeding
  • Sheet Thickness
  • 100 500 Microns
  • Coating Format
  • Roll to Roll
  • Varnish Type
  • Pressure-Sensitive Adhesive
  • Coating Transfer Method
  • Comma Coating
  • Min. Sheet Area
  • As per Customer Requirement
  • Max. Sheet Area
  • 32 inch
  • Coating Type
  • Duct-Tape Adhesive Coating
  • Product Type
  • Duct-Tape Adhesive Coating
  • General Use
  • Applying Strong Adhesive Coating on Duct-Tape Substrates
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 10000 Kilograms (kg)
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 100 170 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 1600 420 450 Centimeter (cm)
  • Feature
  • High Precision, Coating, Low Energy Consumption, High Speed
  • Color
  • White, Green or Customized
  • Warranty
  • 1 Year


Duct Tape Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cheque, Cash on Delivery (COD)
  • Supply Ability
  • 2 Pieces Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, precision rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.
  • Main Export Market(s)
  • North America, South America, Central America, Eastern Europe, Western Europe, Asia, Australia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery


About Duct Tape Coating Machine

The Duct Tape Coating Machine is built for coating fabric-reinforced and polyethylene-laminated materials with a strong pressure-sensitive adhesive. It combines accurate adhesive application, controlled drying, stable web tension and uniform rewinding to produce durable duct-tape jumbo rolls. The machine is suitable for manufacturing tapes used in sealing, repairing, bundling, waterproofing and industrial maintenance.

Key Features

  • High-strength adhesive application
  • Uniform coating across the complete web
  • Accurate adhesive coat-weight control
  • Precision Comma coating arrangement
  • Heavy-duty substrate-handling system
  • Automatic roll-to-roll operation
  • PLC-based machine controls
  • Automatic web-tension management
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chamber
  • Adjustable temperature and airflow
  • Smooth and compact jumbo-roll rewinding
  • Reduced adhesive and substrate wastage
  • Customized working width available

Suitable Raw Materials

  • Polyethylene-laminated cloth
  • Cotton scrim
  • Polyester fabric
  • Rayon fabric
  • Woven fabric
  • Non-woven fabric
  • Waterproof coated fabric
  • Fabric-reinforced polyethylene film
  • Release paper or release liner

Suitable Coating Materials

  • Natural rubber-based adhesive
  • Synthetic rubber adhesive
  • Hot-melt pressure-sensitive adhesive
  • Acrylic pressure-sensitive adhesive
  • Solvent-based adhesive
  • Waterproof adhesive formulation
  • High-tack industrial adhesive
  • Customized duct-tape adhesive

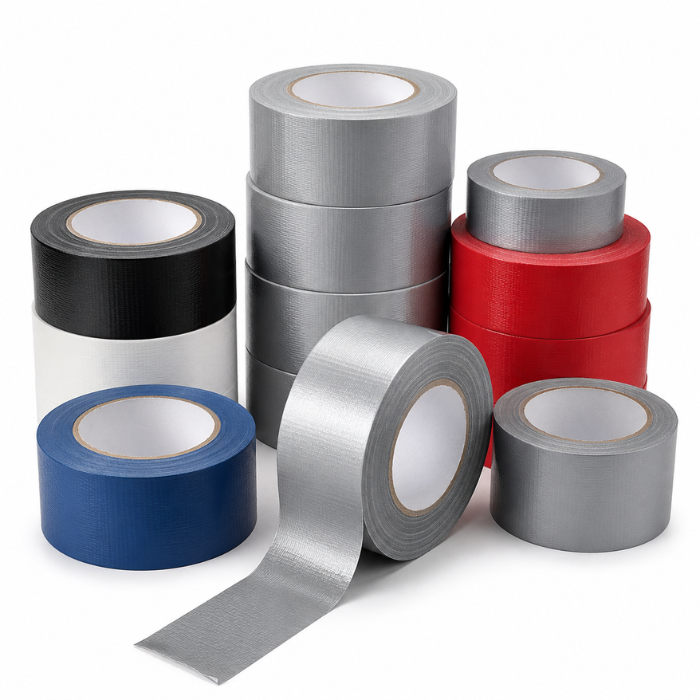

Finished Products

  • General-purpose duct tape
  • Waterproof duct tape
  • Industrial repair tape
  • Heavy-duty sealing tape
  • HVAC duct-sealing tape
  • Fabric-reinforced adhesive tape
  • Packaging and bundling tape
  • Construction repair tape
  • Coloured duct tape
  • Duct-tape jumbo rolls
