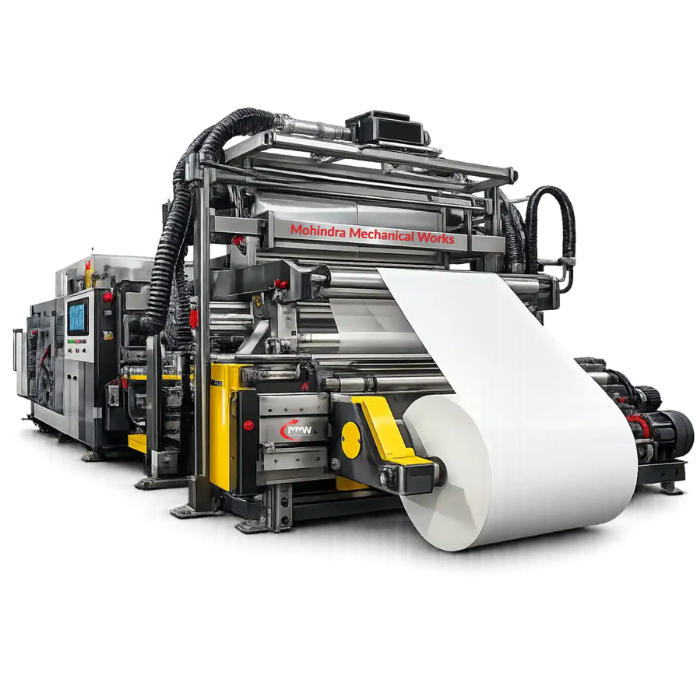

Reverse Paper Coating Machine

Name: Colour Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 1500000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reverse Paper Coating Machine Specification

Registration
Automatic Web Alignment

Machine Speed
150 m/m

Max. Sheet Area
42 inch

Coating Type
Single-Side Paper Coating

Max. Coating Area
Continuous Roll-to-Roll Coating

Power Requirement
Three-Phase Industrial Power Supply

Coating Transfer Method
Reverse Roll Transfer

Varnish Type
Water-Based or Solvent-Based

Sheet Thickness
40 400 GSM

Feeding Type
Roll Feeding

Coating Format
Continuous Web Coating

Min. Sheet Area
12 inch

Product Type
Coating Machine

General Use
Precision coating of paper and paper-based materials

Material
Other

Type
Other

Weight (kg)
8000 kg Approx. Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 75 125 kW Watt (W)

Heating System
Hot Air

Drive Type
Electric

Voltage
440 V Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
1600 Millimeter (mm)

Unwinding Width
1600 Millimeter (mm)

Dimension (L*W*H)
10000 3200 3500 mm Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision, Magnetic Tension Control

Color
Grey, Black and Yellow

Warranty
1 Year

Reverse Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Reverse Paper Coating Machine is securely packed using moisture-resistant protective material, export-quality wrapping and strong wooden supports. Electrical panels, precision coating rollers and other sensitive components are separately protected to help prevent damage during transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical and safety components are inspected before dispatch. Applicable certification documents can be provided according to the final machine configuration.

Reverse Paper Coating Machine About

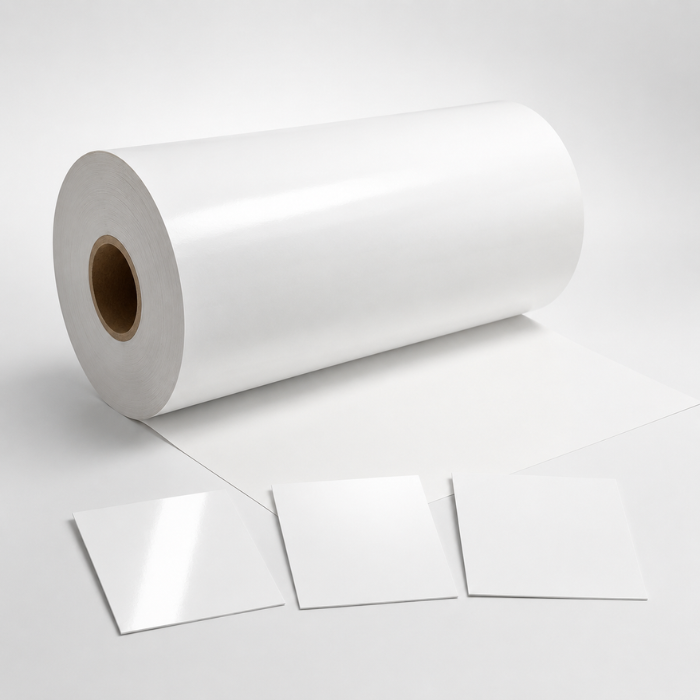

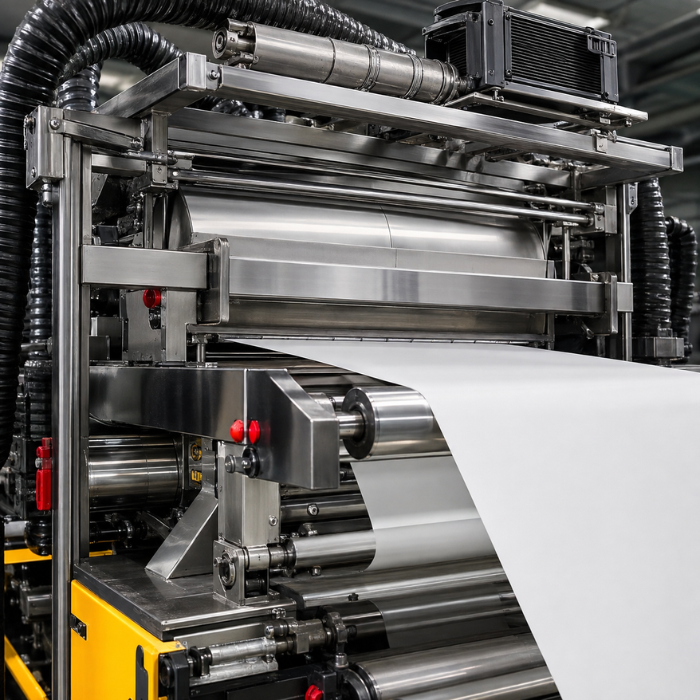

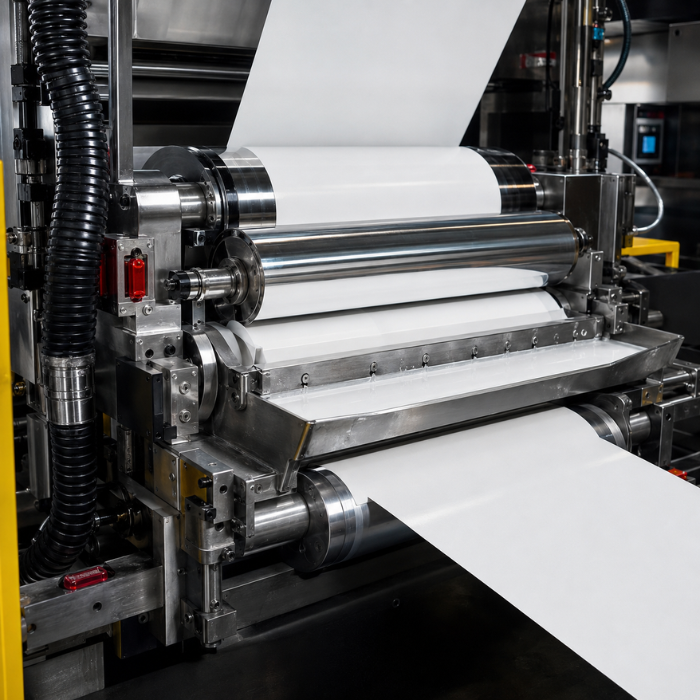

The Automatic Reverse Paper Coating Machine manufactured by Mohindra Mechanical Works is designed to apply an accurate and uniform coating layer on paper, kraft paper, paperboard and other paper-based roll materials. Its reverse-roll coating system rotates the coating roller against the direction of the moving paper web, providing precise control over coating thickness and a smooth finished surface.

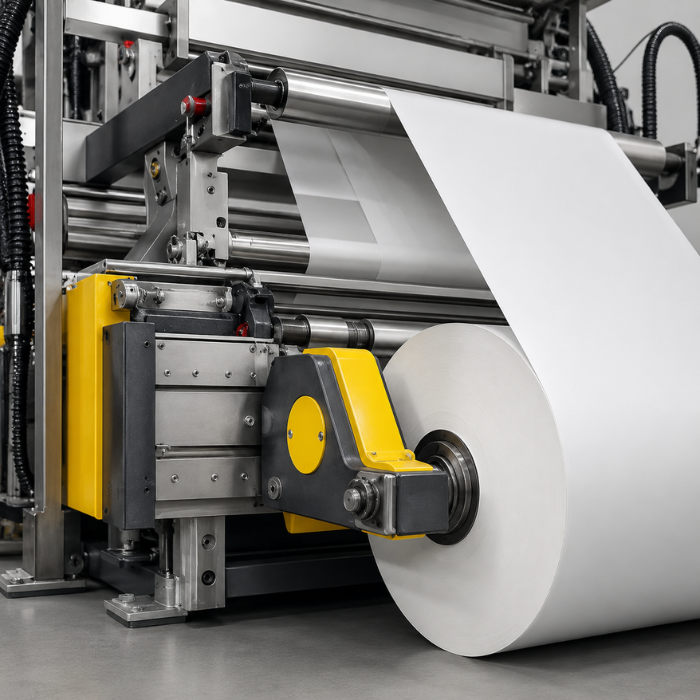

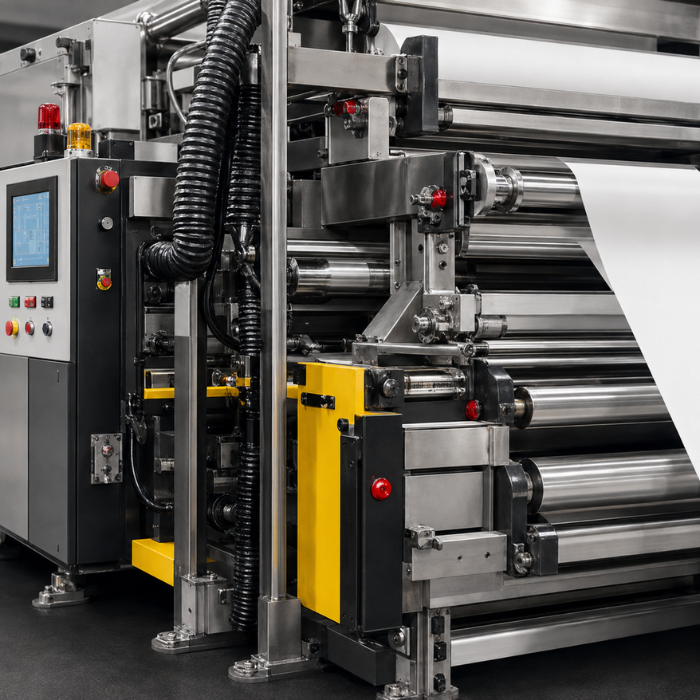

The machine is suitable for water-based coatings, adhesive, varnish, resin, barrier chemicals and other functional paper coatings. It incorporates automatic unwinding, web guiding, closed-loop tension control, reverse-roll coating, multi-zone hot-air drying and controlled rewinding systems. The PLC and HMI control panel enables easy adjustment of production speed, web tension, drying temperature and coating parameters. Its rigid structure and precision-ground rollers ensure stable performance during continuous production. Working width, coating range, drying length and heating method can be customized.
