Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine
Elastic Adhesive Bandage Coating Machine

Elastic Adhesive Bandage Coating Machine

Price 2000000.0 INR/ Unit

MOQ : 1 Unit

Elastic Adhesive Bandage Coating Machine Specification

  • Sheet Thickness
  • 100 600 GSM
  • Min. Sheet Area
  • As per Customer Requirement
  • Registration
  • Knife-Over-Roll Coating
  • Varnish Type
  • Medical-Grade Pressure-Sensitive Adhesive
  • Coating Type
  • Elastic Bandage Adhesive Coating
  • Machine Speed
  • Up to 100 m/m
  • Feeding Type
  • Continuous Roll Feeding
  • Power Requirement
  • 120 200 kW
  • Coating Transfer Method
  • Knife-Over-Roll Coating
  • Max. Coating Area
  • Full Web Width
  • Max. Sheet Area
  • 36 Inch
  • Coating Format
  • Roll to Roll
  • Product Type
  • Elastic Bandage Adhesive Coating
  • General Use
  • Applying Adhesive Coating on Elastic Bandage Fabric
  • Material
  • Stainless Steel
  • Type
  • Industrial Coating Machine, Adhesive Coating Machine
  • Weight (kg)
  • 12000 Kilograms (kg)
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 120 200 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Rewinding Width
  • Up to 1600 Millimeter (mm)
  • Unwinding Width
  • Up to 1600 Millimeter (mm)
  • Dimension (L*W*H)
  • 1800 450 500 cm Millimeter (mm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • Orange, White or Customized
  • Warranty
  • 1 Year


Elastic Adhesive Bandage Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cash on Delivery (COD), Cheque
  • Supply Ability
  • 2 Units Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. Coating assemblies, rollers, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery

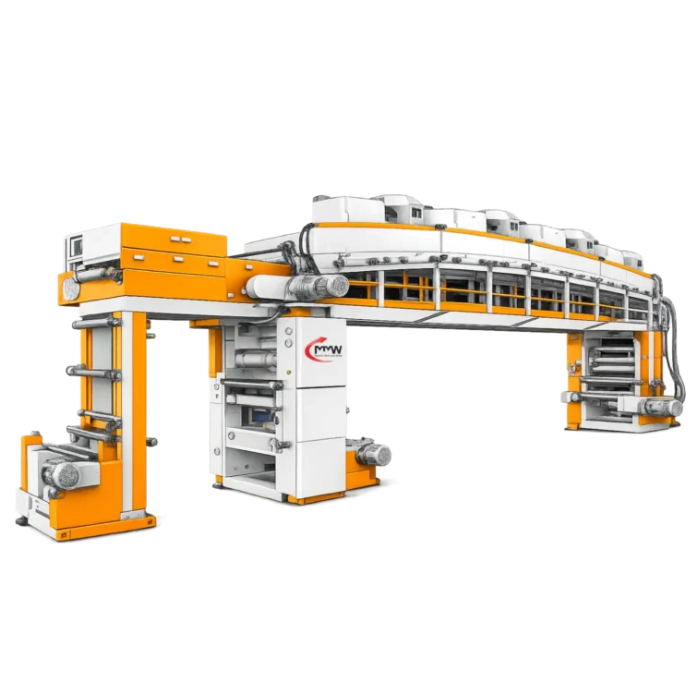

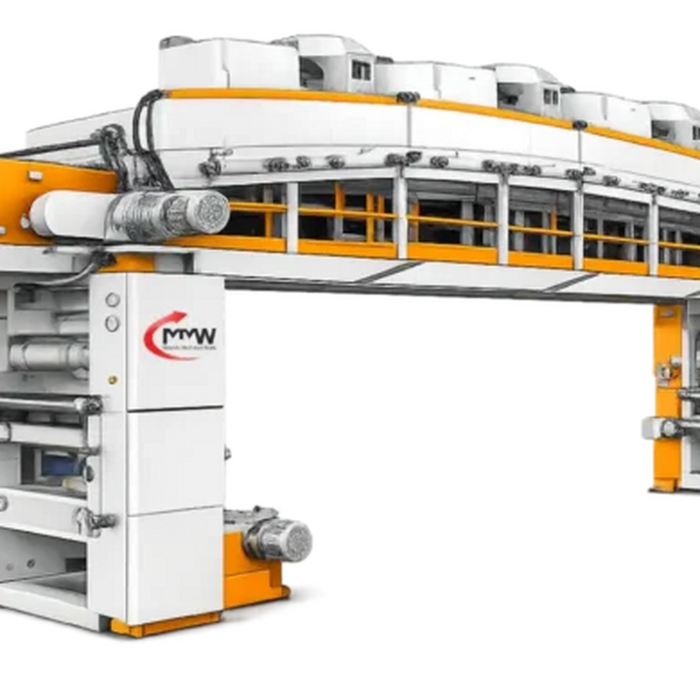

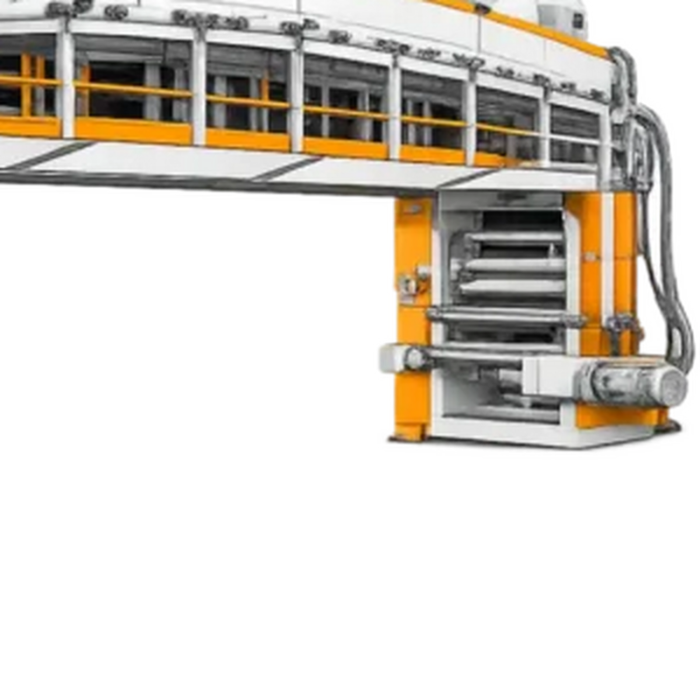

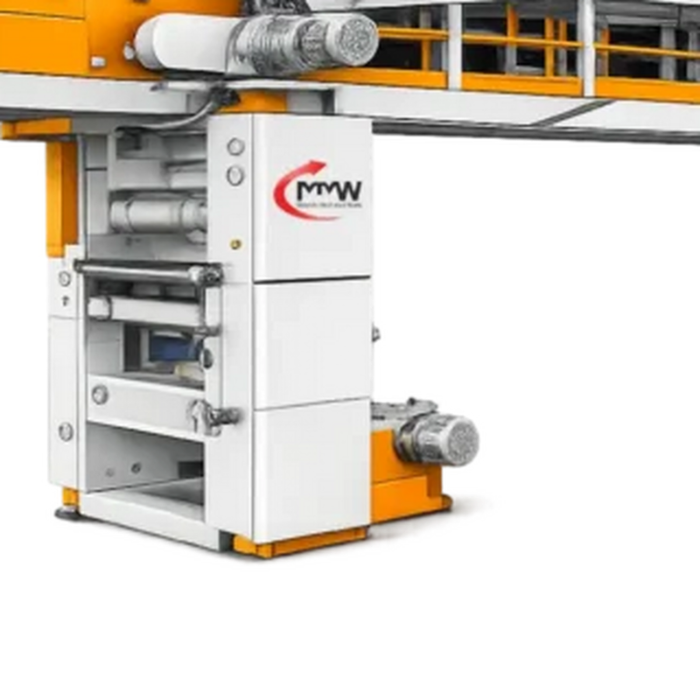

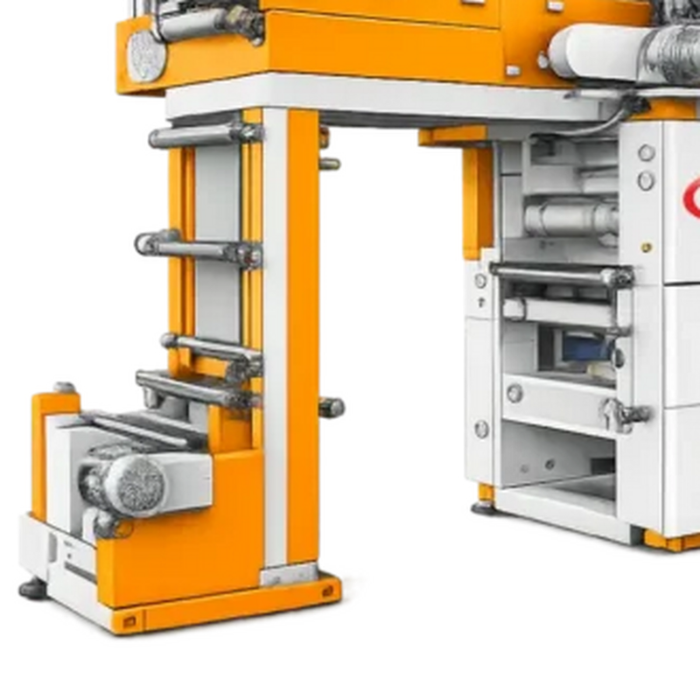

About Elastic Adhesive Bandage Coating Machine

The Elastic Adhesive Bandage Coating Machine is designed for applying a controlled layer of medical-grade adhesive onto elastic woven or non-woven fabric rolls. Its continuous roll-to-roll system combines precise coating, controlled web tension, hot-air drying and uniform rewinding. The machine helps produce consistent adhesive bandage material for medical dressings, sports-support tapes and compression products.

Key Features

  • Uniform adhesive application
  • Precise coat-weight adjustment
  • Controlled handling of stretchable fabric
  • Automatic roll-to-roll operation
  • PLC-based operating controls
  • Automatic web-tension control
  • Automatic edge-guiding system
  • Multi-zone hot-air drying chamber
  • Adjustable temperature and airflow
  • Stainless steel adhesive-contact components
  • Smooth and wrinkle-free rewinding
  • Reduced adhesive and fabric wastage
  • Heavy-duty industrial construction
  • Customized working width available

Suitable Raw Materials

  • Elastic woven cotton fabric
  • Elastic non-woven fabric
  • Cotton bandage cloth
  • Spandex-blended fabric
  • Rayon fabric
  • Polyester-cotton fabric
  • Medical textile rolls
  • Sports-support fabric

Suitable Coating Materials

  • Medical-grade pressure-sensitive adhesive
  • Zinc oxide adhesive
  • Hot-melt adhesive
  • Acrylic adhesive
  • Rubber-based adhesive
  • Hypoallergenic adhesive formulation
  • Latex-free adhesive formulation
  • Customized medical adhesive

Finished Products

  • Elastic adhesive bandages
  • Elastic plaster bandages
  • Sports-support tape
  • Compression bandages
  • Orthopaedic support tape
  • Cohesive support bandages
  • Medical adhesive fabric rolls
  • First-aid bandage material
  • Strapping tape
  • Healthcare dressing rolls
