Gravure Paper Coating Machine

Name: Gravure Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Gravure Paper Coating Machine Specification

Registration
Automatic Web Alignment

Varnish Type
Water-Based or Solvent-Based

Max. Coating Area
Continuous Roll-to-Roll Coating

Coating Transfer Method
Engraved Gravure Roller

Coating Type
Single-Side Precision Coating

Max. Sheet Area
42 Inches

Sheet Thickness
40 400 GSM

Min. Sheet Area
12 Inches

Coating Format
Continuous Web Coating

Feeding Type
Roll Feeding

Power Requirement
Three-Phase Industrial Power Supply

Machine Speed
150 m/m

Product Type
Automatic Gravure Paper Coater

General Use
Precision coating of paper and paper-based substrates

Material
Stainless Steel

Type
Other

Weight (kg)
40 400 GSM Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 75 150 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
120-440 Volt (v)

Humidification System
No

Glue Type
Solvent Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
12000 3500 4200 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision, Magnetic Tension Control

Color
Black, White and Silver

Warranty
1 Year

Gravure Paper Coating Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Gravure Paper Coating Machine is packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, gravure cylinders, coating assemblies and precision rollers are separately protected during transportation.

Main Export Market(s)
Australia, Central America, Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable machine documents can be provided according to the final configuration and purchase order.

Gravure Paper Coating Machine About

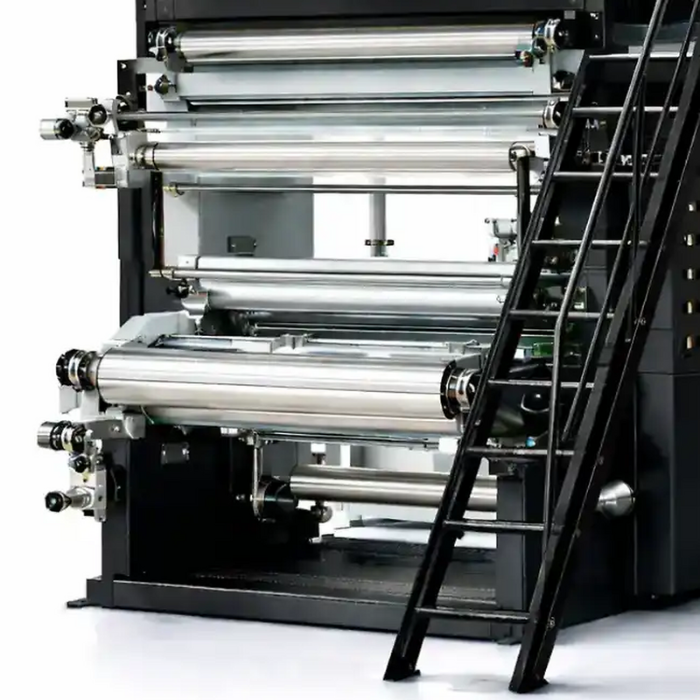

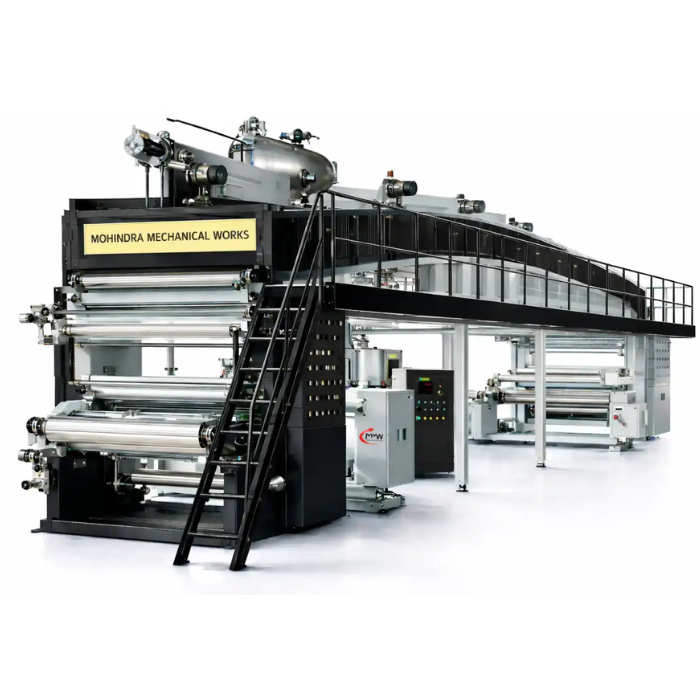

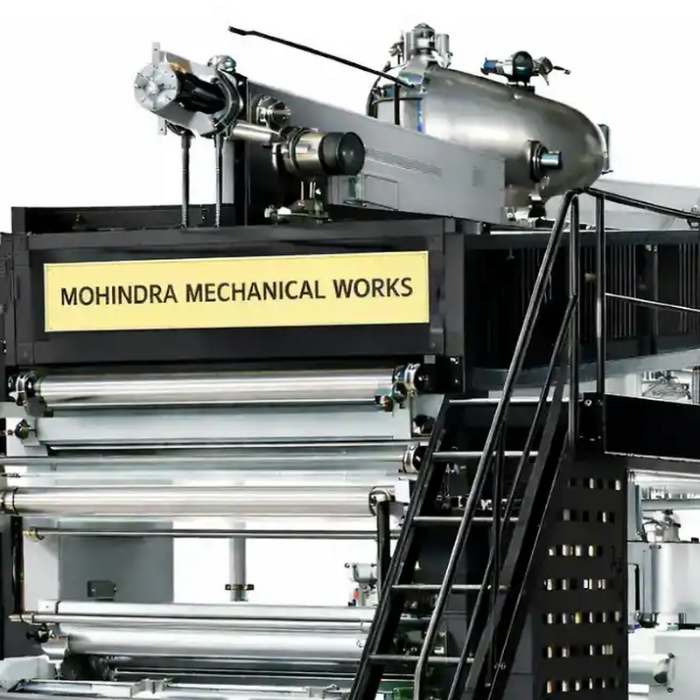

The Automatic Gravure Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying a precise and uniform coating layer on paper, kraft paper, paperboard and other paper-based roll materials. Its engraved gravure cylinder transfers a controlled quantity of coating material, while the doctor blade removes excess liquid and helps maintain consistent coating GSM across the complete web width.

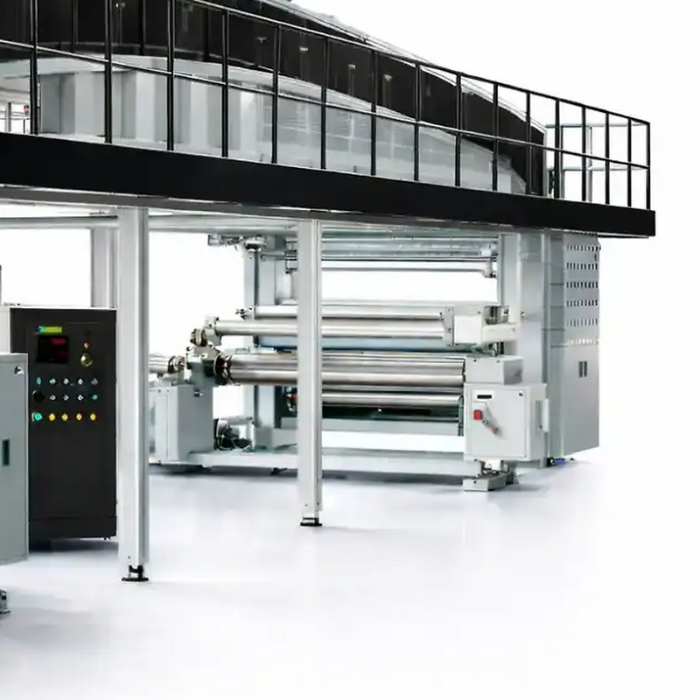

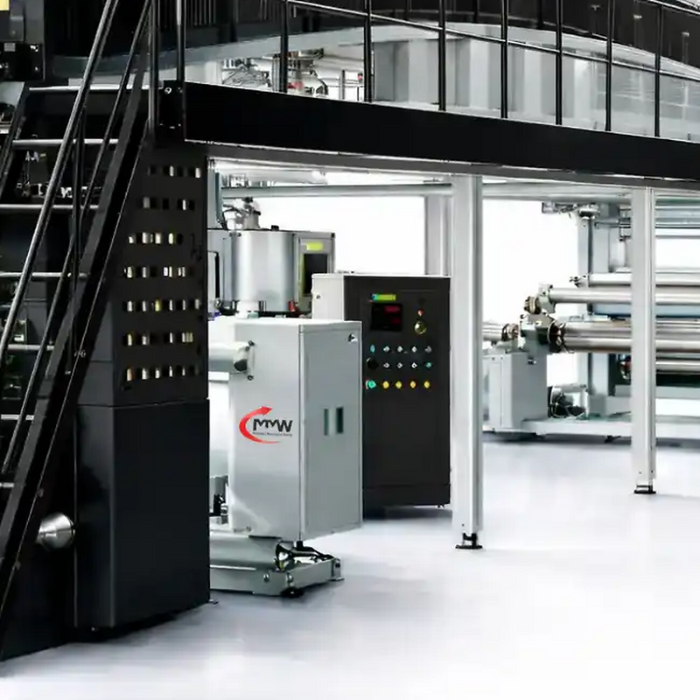

The machine incorporates automatic unwinding, web guiding, closed-loop tension control, gravure coating, multi-zone hot-air drying, cooling and controlled rewinding systems. Its PLC and HMI touchscreen enables convenient adjustment of machine speed, drying temperature, web tension and coating parameters. The machine can process compatible water-based and solvent-based adhesives, barrier chemicals, varnishes and functional coatings. Working width, gravure-cylinder specification, drying length and heating source can be customized according to production requirements.
