Gutka Pouch Coating Machine

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Gutka Pouch Coating Machine Specification

Sheet Thickness
40 200 GSM

Coating Type
Flexible-Packaging Barrier Coating

Coating Format
Roll to Roll

Feeding Type
Continuous Roll Feeding

Max. Coating Area
Full Web Width

Max. Sheet Area
Up to 1600 mm Working Width

Registration
Automatic Web Alignment

Coating Transfer Method
Gravure, Reverse Gravure, Comma-Roll or Mayer-Bar Coating

Min. Sheet Area
As per Customer Requirement

Varnish Type
Water-Based Protective and Barrier Coating

Power Requirement
140 220 kW

Machine Speed
Up to 120 m/m

Product Type
Gutka Pouch Coating Machine

General Use
Applying Barrier Coating on Paper and Film for Flexible Pouch Packaging

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
15000 Kilograms (kg)

Coating Speed
Up to 120 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
140 220 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2200 500 520 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
White, Blue or Customized

Warranty
1 Year

Gutka Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Coating heads, gravure rollers, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Western Europe, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Gutka Pouch Coating Machine About

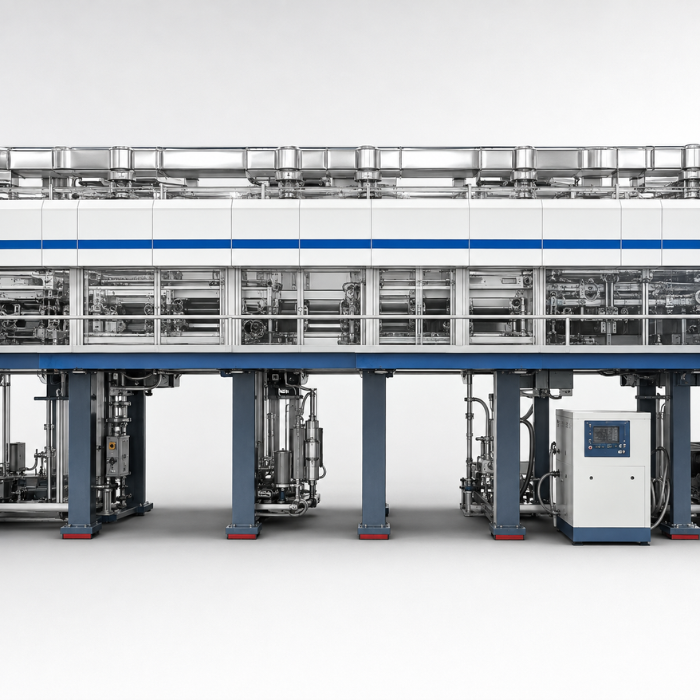

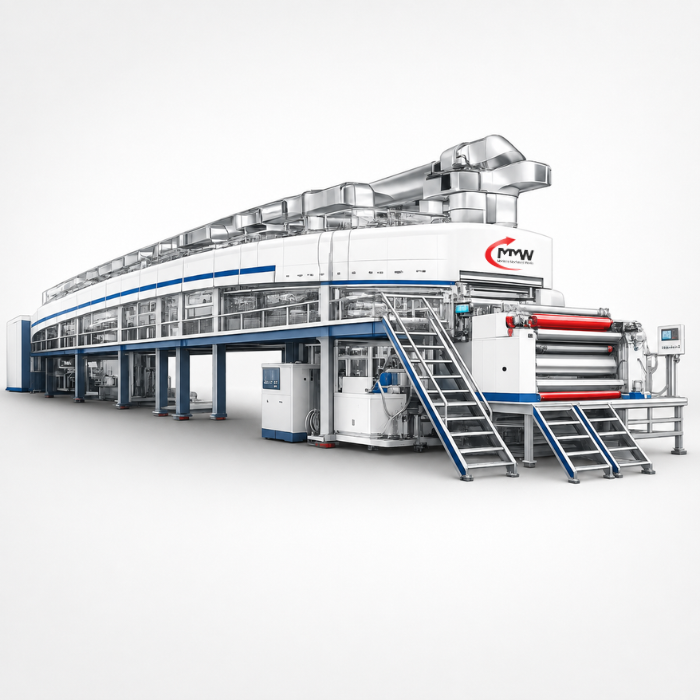

The Gutka Pouch Coating Machine applies a controlled barrier or functional coating onto paper, film and other approved flexible-packaging substrates. It is suitable for preparing roll material subsequently printed and converted into small sachets and pouches for pan masala, mouth freshener, spices and similar dry products.
The machine operates through a continuous roll-to-roll process combining precision coating, automatic web-tension control, web alignment, multi-zone hot-air drying and smooth rewinding. Depending on the coating formulation and packaging structure, it can use gravure, reverse-gravure, comma-roll, Mayer-bar or other approved coating methods.
Compatible water-based barrier coatings can improve moisture resistance, oil and grease resistance, aroma retention, printability and heat-sealing performance. Solvent-based or specialty coatings can also be processed when the machine is equipped with the required exhaust, solvent-handling and flameproof safety arrangements.
The machine manufactures coated packaging material in roll form. Separate printing, slitting and pouch-making equipment is generally required to produce finished printed pouches.
