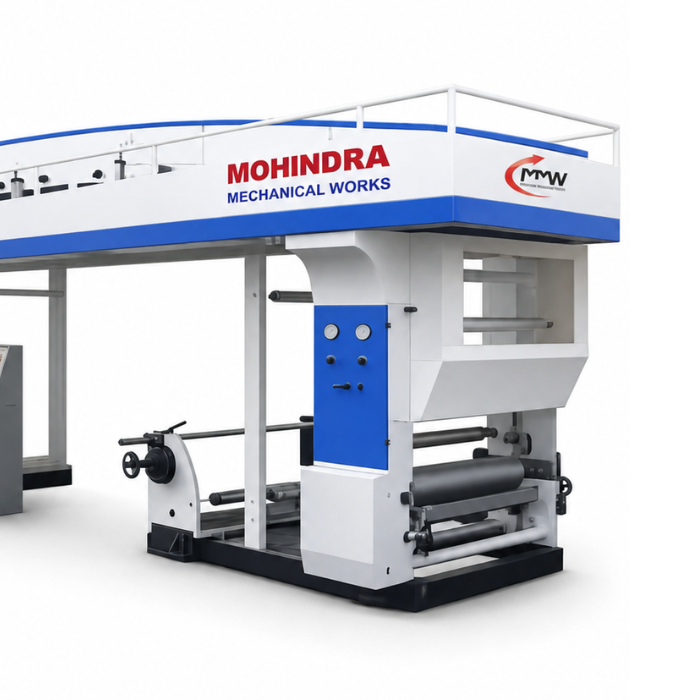

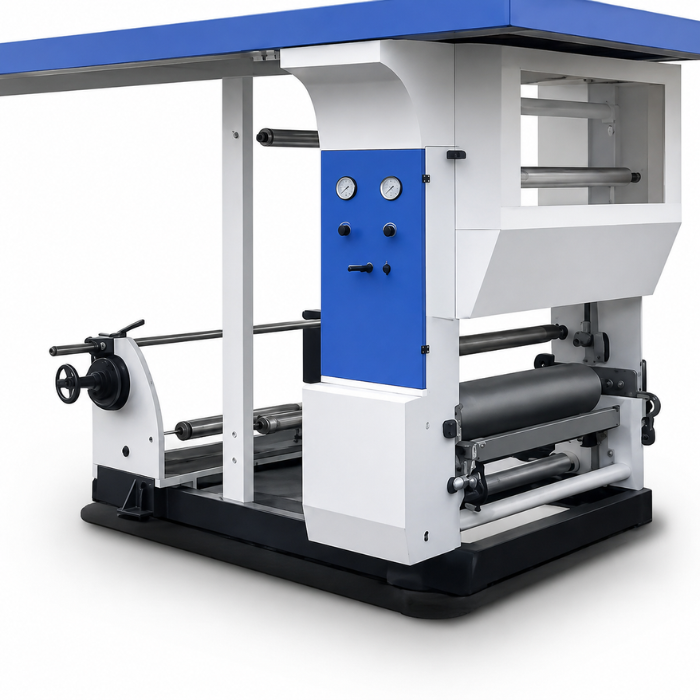

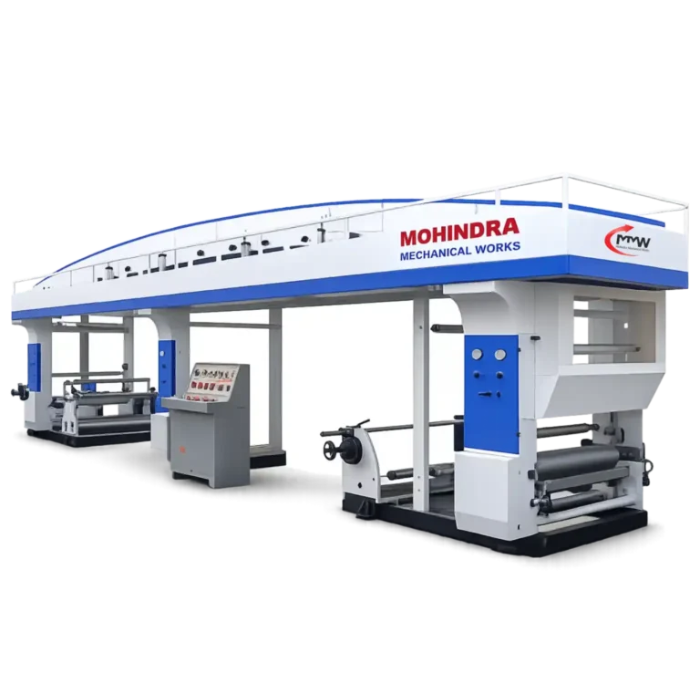

Surface Protection Film Coating Machine

Name: Surface Protection Film Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3000000.0 INR
Availability: InStock

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Surface Protection Film Coating Machine Specification

Min. Sheet Area
As per Customer Requirement

Max. Sheet Area
Up to 1600 mm

Registration
Automatic Web Alignment

Feeding Type
Continuous Roll Feeding

Coating Type
Removable Protective-Film Adhesive Coating

Coating Transfer Method
Gravure, Mayer Bar, Comma or Knife-Over-Roll

Power Requirement
100 180 kW

Machine Speed
Up to 120 m/m

Sheet Thickness
20 150 Microns

Varnish Type
Water-Based or Solvent-Based Removable Acrylic Adhesive

Coating Format
Roll to Roll

Max. Coating Area
Full Web Width

Product Type
Surface Protection Film Coating Machine

General Use
Manufacturing Self-Adhesive Surface Protection Film

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
10000 Kilograms (kg)

Coating Speed
Up to 120 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

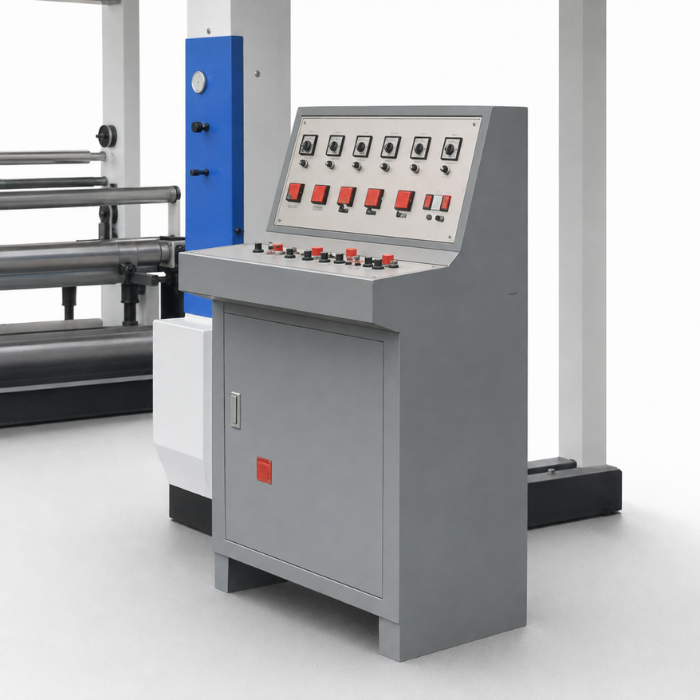

Control System
PLC Control

Power Source
Electric

Power Consumption
100 180 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

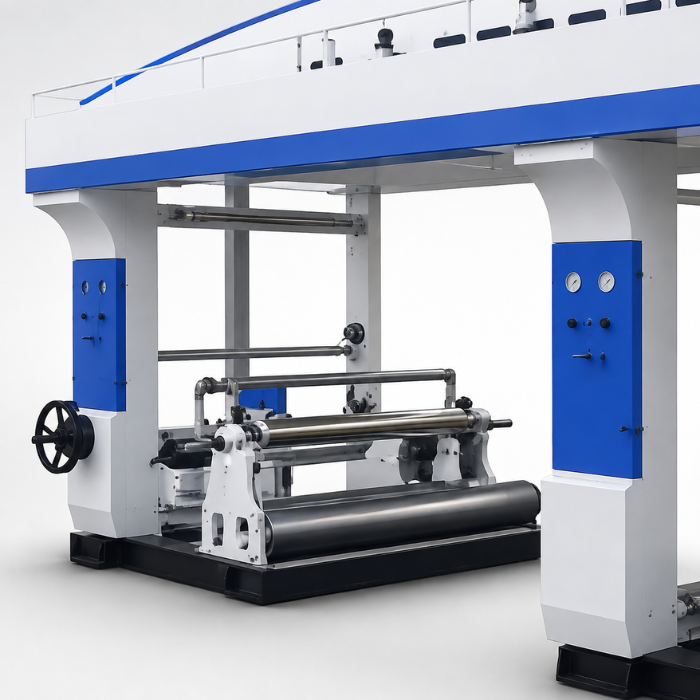

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
White, Blue or Customized

Warranty
1 Year

Surface Protection Film Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating head, adhesive-contact rollers, drying chamber, cooling rollers, unwinders, rewinders, motors, drives, sensors and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, Middle East, Africa, Australia, Central America, North America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Surface Protection Film Coating Machine About

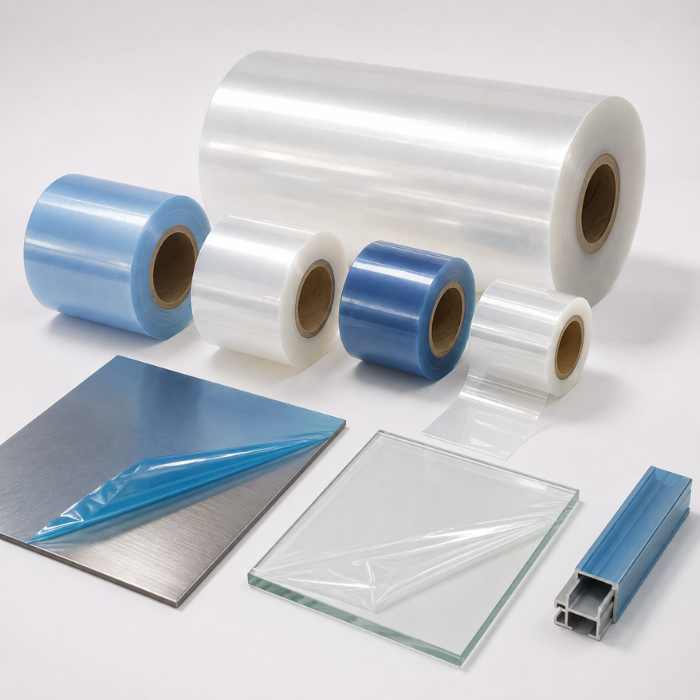

The Surface Protection Film Coating Machine applies a uniform layer of removable pressure-sensitive adhesive onto PE, PET or other compatible protective films. The coated film temporarily protects finished surfaces against scratches, dust, stains, moisture and handling damage during manufacturing, fabrication, transportation and installation.
Its continuous roll-to-roll system combines precision adhesive application, automatic web-tension control, multi-zone hot-air drying, controlled film cooling and smooth rewinding. The machine can be configured for low-tack, medium-tack and high-tack protective-film formulations according to the surface being protected.
