Polyester DG Lacquer Coating Machine

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Polyester DG Lacquer Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Machine Speed
Up to 150 m/m

Max. Sheet Area
Up to 1600 mm Working Width

Registration
Automatic Web Alignment

Min. Sheet Area
As per Customer Requirement

Sheet Thickness
12 100 Microns

Max. Coating Area
Full Web Width

Coating Format
Roll to Roll

Coating Transfer Method
Direct Gravure Coating

Power Requirement
180 280 kW

Coating Type
Polyester Film Lacquer Coating

Varnish Type
Clear, Coloured, Protective or Release Lacquer

Product Type
Polyester DG Lacquer Coating Machine

General Use
Applying Lacquer and Functional Coatings on Polyester or PET Film

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
15000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
180 280 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2400 550 550 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Green, Black or Customized

Warranty
1 Year

Polyester DG Lacquer Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Gravure coating heads, engraved cylinders, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Polyester DG Lacquer Coating Machine About

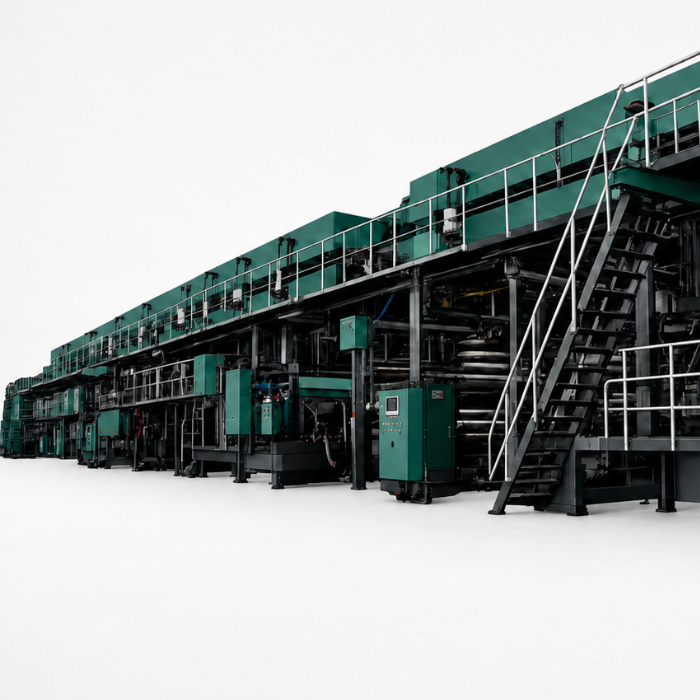

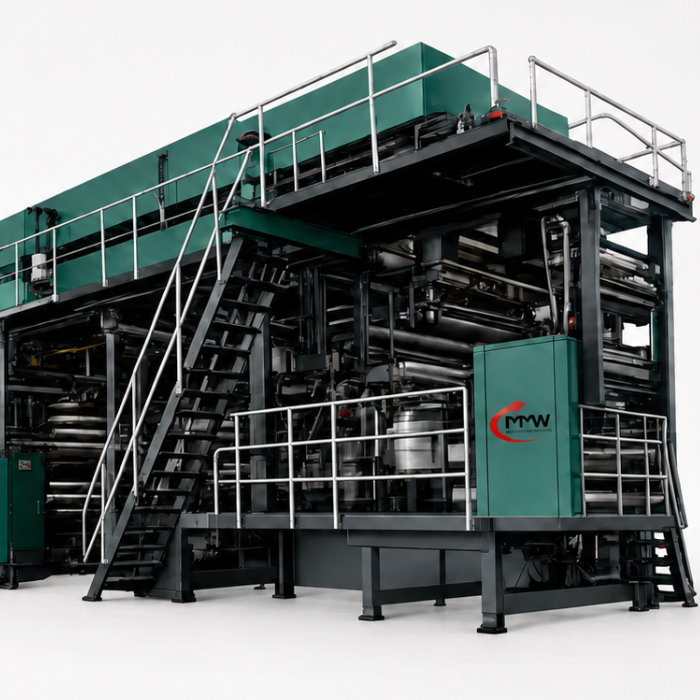

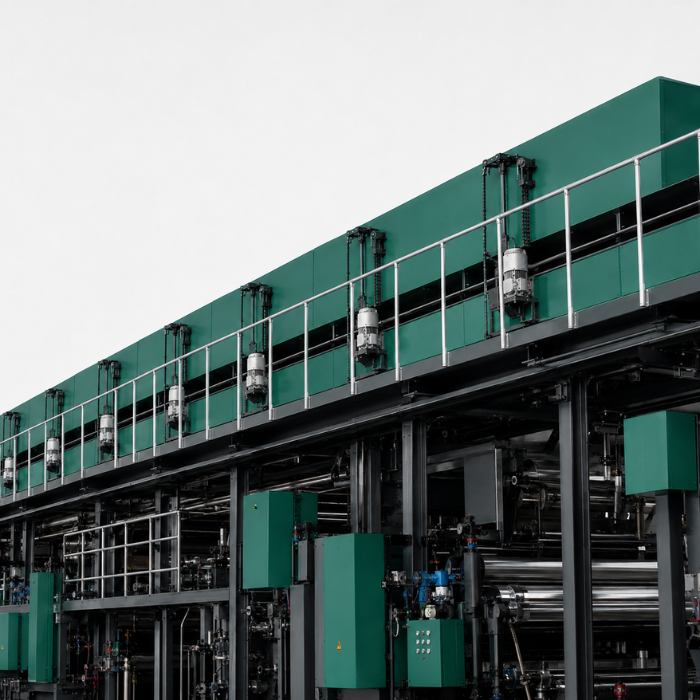

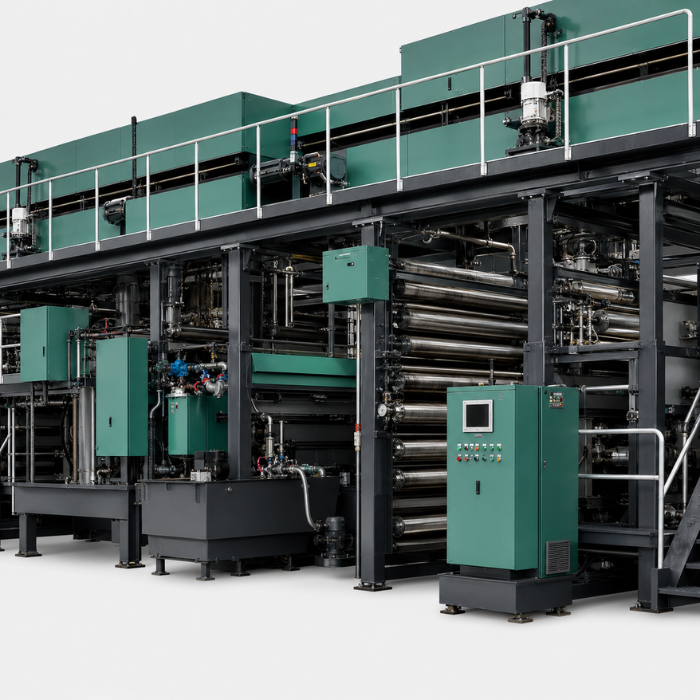

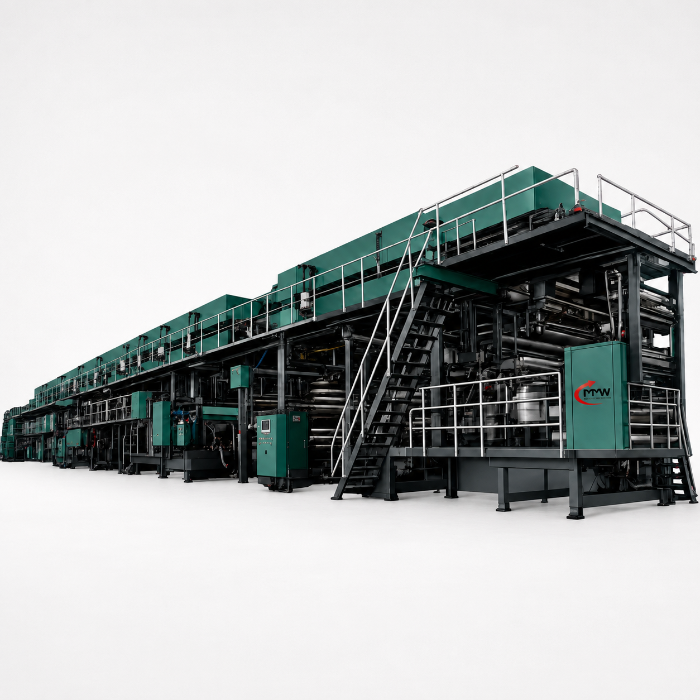

The Polyester DG Lacquer Coating Machine is designed to apply a precise and uniform lacquer layer onto polyester and PET film rolls. DG refers to the direct-gravure coating process, in which an engraved gravure cylinder picks up a controlled quantity of lacquer and transfers it directly onto the moving film.

The machine combines precision gravure coating, automatic web-tension control, web alignment, multi-zone hot-air drying, controlled exhaust and smooth rewinding. It can apply clear lacquer, coloured lacquer, release coating, protective coating, adhesion primer and other compatible functional formulations.

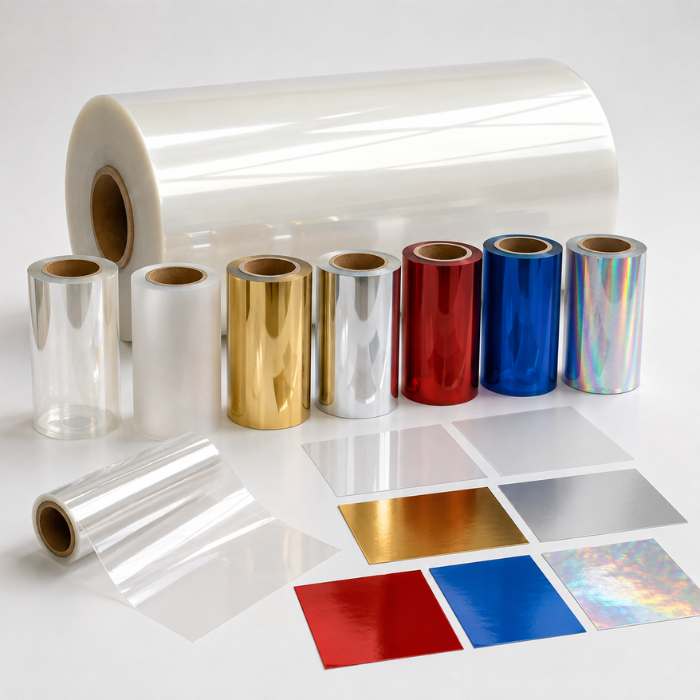

Depending on its approved configuration, the machine can process transparent, printed, coloured or metallized polyester film. The coated material is suitable for flexible packaging, decorative film, labels, transfer foil, print-protection and other industrial applications.
