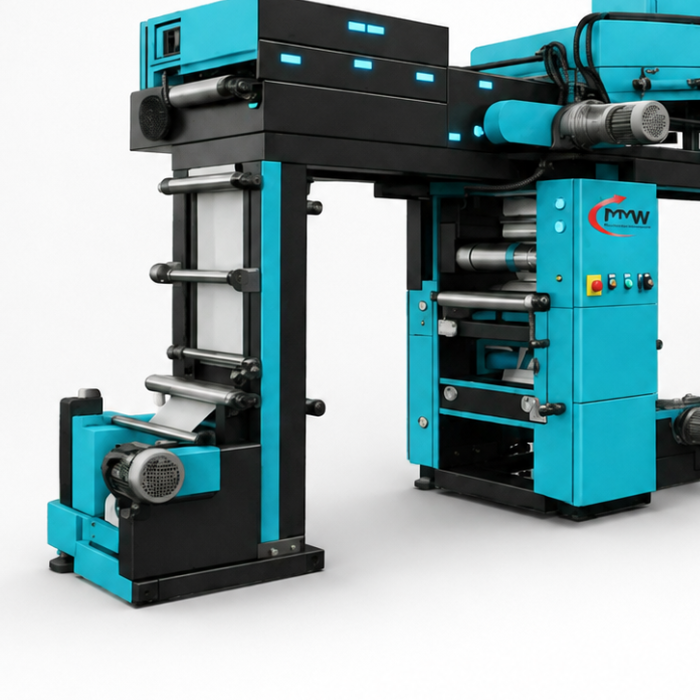

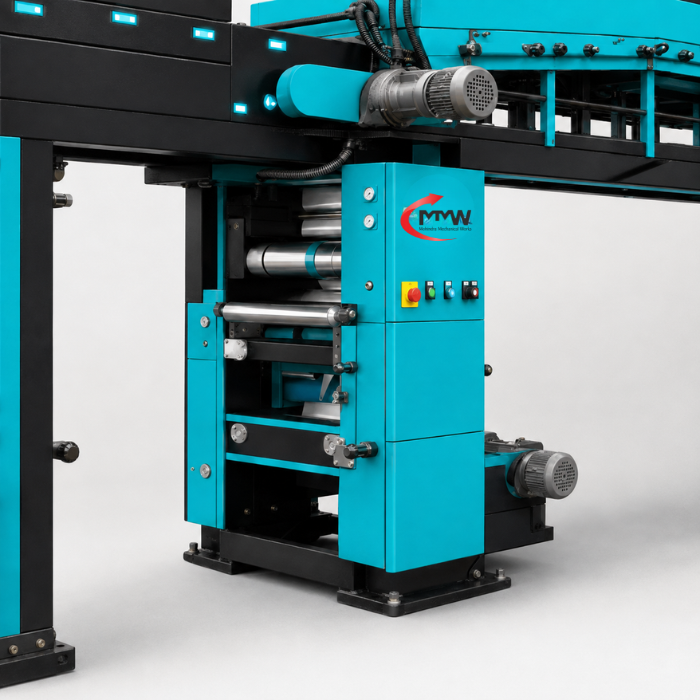

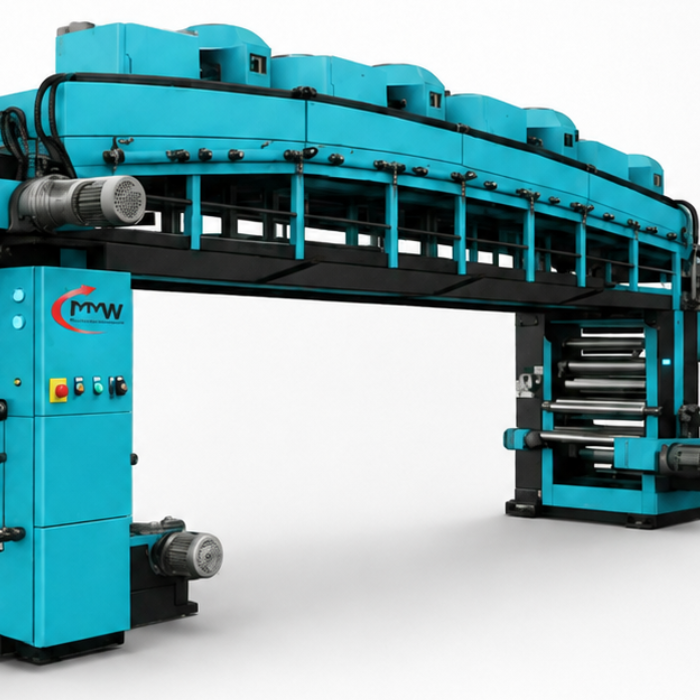

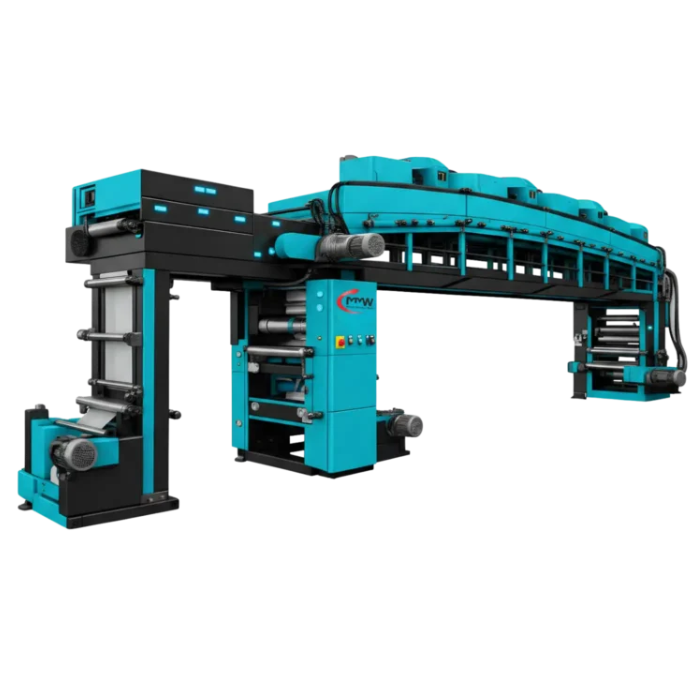

Mini BOPP Packing Tape Making Machine

Name: Mini BOPP Packing Tape Making Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 3000000.0 INR
Availability: InStock

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mini BOPP Packing Tape Making Machine Specification

Sheet Thickness
20 60 Microns

Max. Sheet Area
Up to 1000 mm Working Width

Machine Speed
Up to 80 m/m

Coating Type
Pressure-Sensitive Adhesive Coating

Max. Coating Area
Full Web Width

Min. Sheet Area
As per Customer Requirement

Coating Transfer Method
Mayer-Bar or Comma-Roll Coating

Varnish Type
Water-Based Acrylic Adhesive

Registration
Automatic Web Alignment

Coating Format
Roll to Roll

Power Requirement
60 100 kW

Feeding Type
Continuous Roll Feeding

Product Type
Mini BOPP Packing Tape Making Machine

General Use
Manufacturing Self-Adhesive BOPP Packing Tape

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
7000 Kilograms (kg)

Coating Speed
Up to 80 m/m

Coating Head
Other

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
60 100 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1000 Millimeter (mm)

Unwinding Width
Up to 1000 Millimeter (mm)

Dimension (L*W*H)
1200 350 400 Millimeter (mm)

Feature
High Speed, High Precision, Coating, Low Energy Consumption

Color
Turquoise Blue, Black or Customized

Warranty
1 Year

Mini BOPP Packing Tape Making Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cheque, Cash on Delivery (COD)

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating unit, precision rollers, hot-air drying chamber, unwinder, rewinder, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Africa, South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America, North America

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Mini BOPP Packing Tape Making Machine About

The Mini BOPP Packing Tape Making Machine is a compact roll-to-roll coating line designed to manufacture self-adhesive packaging tape from BOPP film. It applies a controlled layer of water-based pressure-sensitive acrylic adhesive to the film, dries the coated web through a hot-air chamber and rewinds the material into jumbo rolls.
The machine combines precision adhesive coating, controlled web tension, adjustable drying temperature, web alignment and smooth rewinding. Its compact construction makes it suitable for small and medium-sized tape manufacturers, new production units and businesses that require flexible production with lower space and power requirements.
The coated jumbo rolls can subsequently be processed using a slitting-rewinding machine and core-cutting machine to produce finished transparent, brown, coloured and printed packing-tape rolls.

Key Features

Compact design requiring less floor space
Uniform water-based adhesive application
Adjustable adhesive coat weight
Continuous roll-to-roll coating operation
PLC-based machine controls
Automatic web-tension management
Automatic edge-guiding system

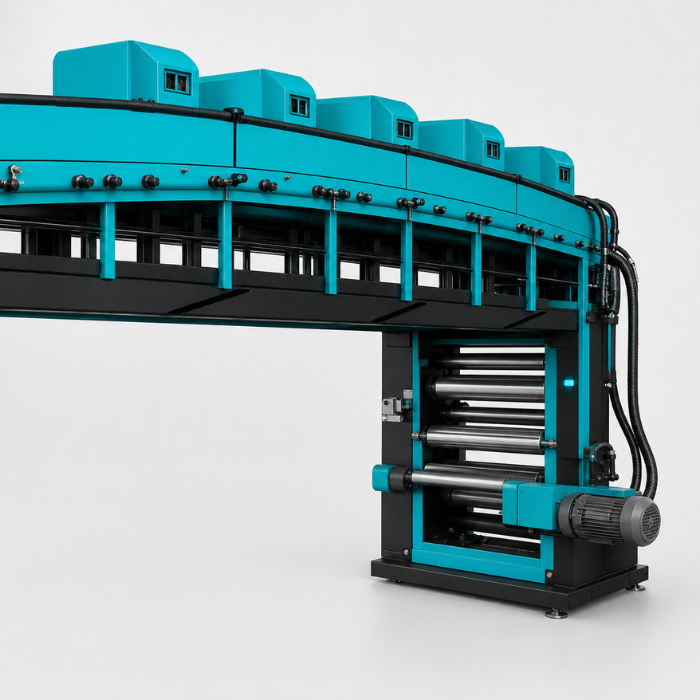

Multi-zone hot-air drying chamber
Individually adjustable drying zones
Energy-efficient hot-air circulation
Smooth handling of thin BOPP film
Duplex unwinding and rewinding arrangement
Uniform jumbo-roll formation
Reduced film and adhesive wastage
Simple operation and maintenance
Suitable for small and medium production units
Customized working width available
Optional corona-treatment unit
Optional inline printing attachment
Optional automatic roll-changing system

Suitable Raw Materials

Transparent BOPP film
Brown or tan BOPP film
Coloured BOPP film
Printed BOPP film
Corona-treated BOPP film
Customized packaging film
Paper winding cores
Plastic winding cores

Suitable Coating Materials

Water-based acrylic pressure-sensitive adhesive
Emulsion acrylic adhesive
High-tack acrylic adhesive
Low-noise tape adhesive
Freezer-grade adhesive
Heat-resistant adhesive
UV-resistant adhesive
Customized pressure-sensitive adhesive formulation

Finished Products

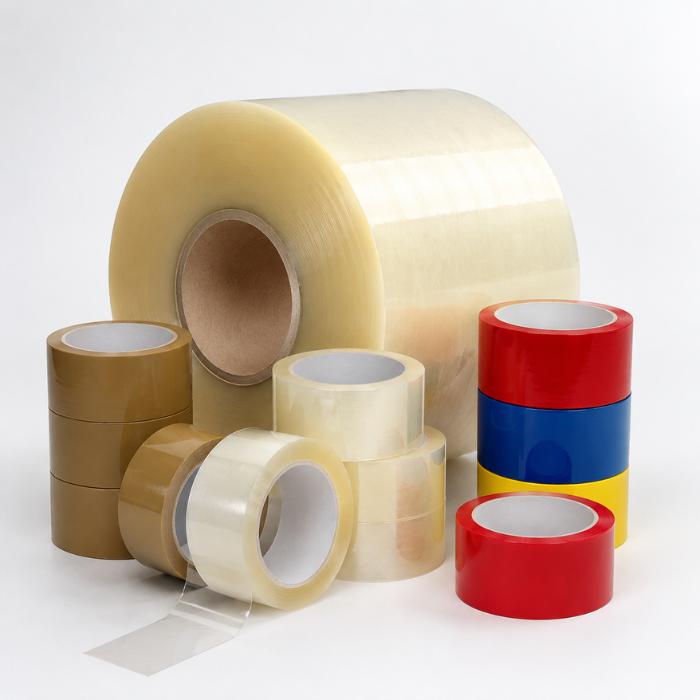

Transparent BOPP packing tape
Brown carton-sealing tape
Coloured packaging tape
Printed packing tape
Logo-printed adhesive tape
Low-noise packaging tape
High-tack carton-sealing tape
Stationery tape
E-commerce packaging tape
Industrial packaging tape
BOPP adhesive jumbo rolls
Customized packing-tape rolls

Suitable Applications

Corrugated-carton sealing
E-commerce order packaging
Warehouse packaging
Logistics and transportation
Export-carton sealing
Food and beverage carton packaging
Pharmaceutical carton packaging
Stationery products
Industrial bundling
General-purpose packaging

Machines Required for Complete Tape Production

The Mini BOPP Packing Tape Making Machine generally manufactures adhesive-coated jumbo rolls. The following additional equipment may be used for producing finished retail-size packing-tape rolls:
