Pan Masala Pouch Coating Machine

Name: Thermal Paper Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pan Masala Pouch Coating Machine Specification

Max. Coating Area
Continuous Roll-to-Roll Coating

Min. Sheet Area
12 Inches

Sheet Thickness
12 300 Micron

Feeding Type
Roll Feeding

Machine Speed
150 m/m

Coating Transfer Method
Gravure/Mayer Bar Transfer

Max. Sheet Area
42 Inches

Varnish Type
Water-Based or Solvent-Based

Power Requirement
Three-Phase Industrial Power Supply

Registration
Automatic Web Alignment

Coating Format
Continuous Web Coating

Coating Type
Single-Side Barrier/Heat-Seal Coating

Product Type
Thermal Paper Coating Machine

General Use
Barrier, protective and heat-seal coating of pouch material

Material
Stainless Steel

Type
Other

Weight (kg)
4-6 Tonne

Coating Speed
150 m/m

Coating Head
Gravure Roller

Coating Width
600 1600 mm Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 100 175 kW Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
120-440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
15000 4000 4500 Millimeter (mm)

Feature
Low Energy Consumption, High Speed, High Precision

Color
White, Blue and Silver

Warranty
1 Year

Pan Masala Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Pan Masala Pouch Coating Machine is packed using moisture-resistant wrapping, protective sheets, wooden supports and export-worthy packaging. Electrical panels, coating assemblies, precision rollers and sensitive components are separately protected during transportation.

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical, heating and safety components are inspected before dispatch. Applicable machine documents can be supplied according to the final configuration and purchase order.

About Pan Masala Pouch Coating Machine

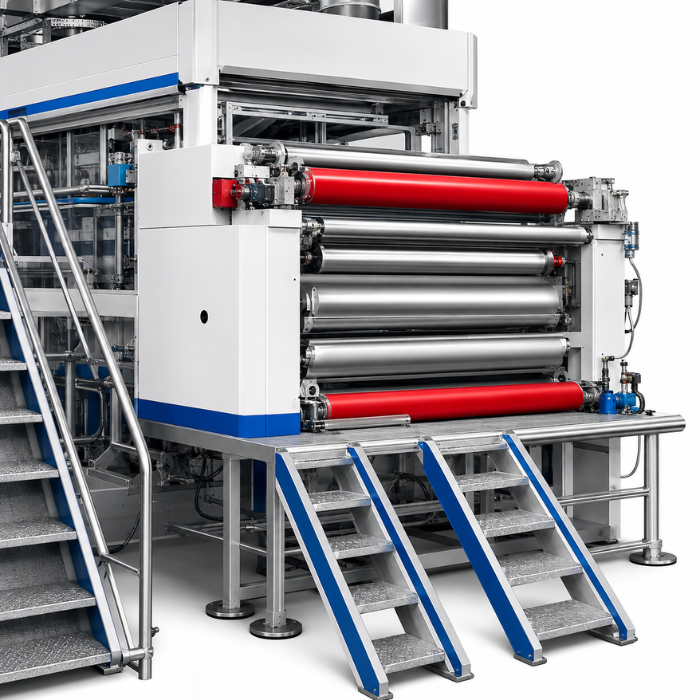

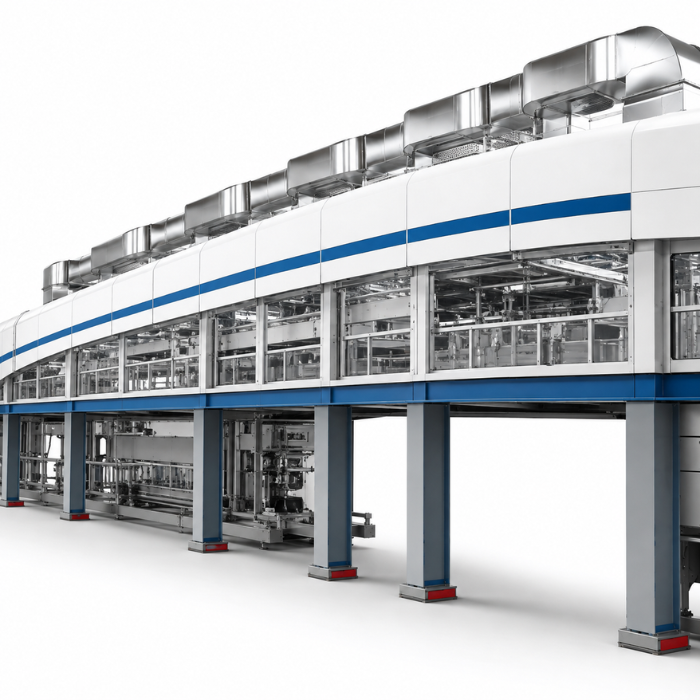

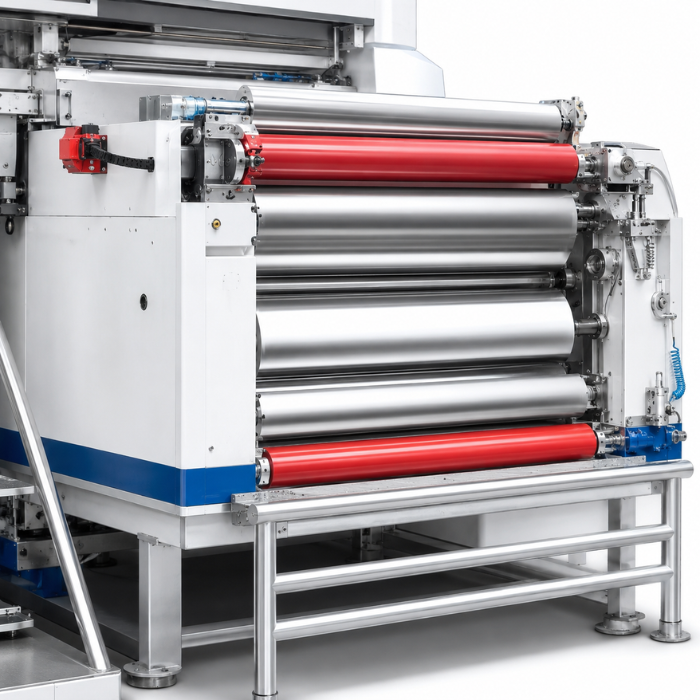

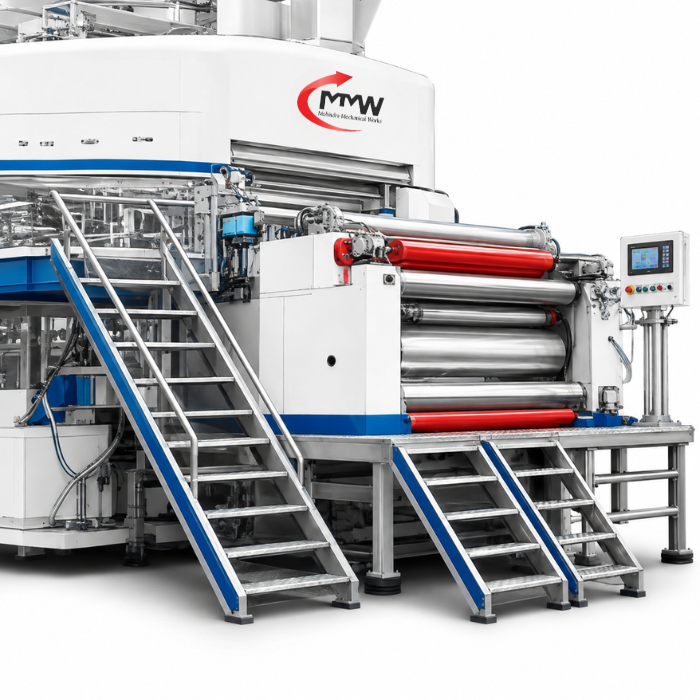

The Automatic Pan Masala Pouch Coating Machine manufactured by Mohindra Mechanical Works is designed for applying uniform barrier, protective and heat-seal coatings on paper and flexible packaging materials used for producing pan masala pouches. The machine helps improve moisture resistance, aroma retention, sealing performance and surface protection according to the selected substrate and coating formulation.

It incorporates automatic unwinding, edge guiding, closed-loop tension control, precision coating, multi-zone hot-air drying, cooling and controlled rewinding systems. Its PLC and HMI touchscreen enables convenient adjustment of machine speed, drying temperature, web tension and coating thickness. Precision-ground rollers ensure consistent coating across the complete web width. The machine can be customized for different pouch substrates, coating chemicals, working widths and production speeds. Packaging suitability depends on the substrate and approved coating formulation selected by the buyer.
