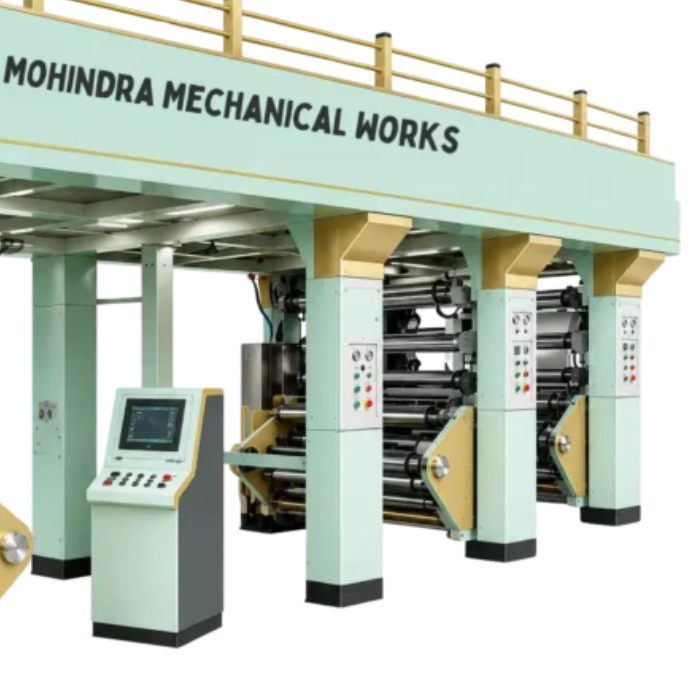

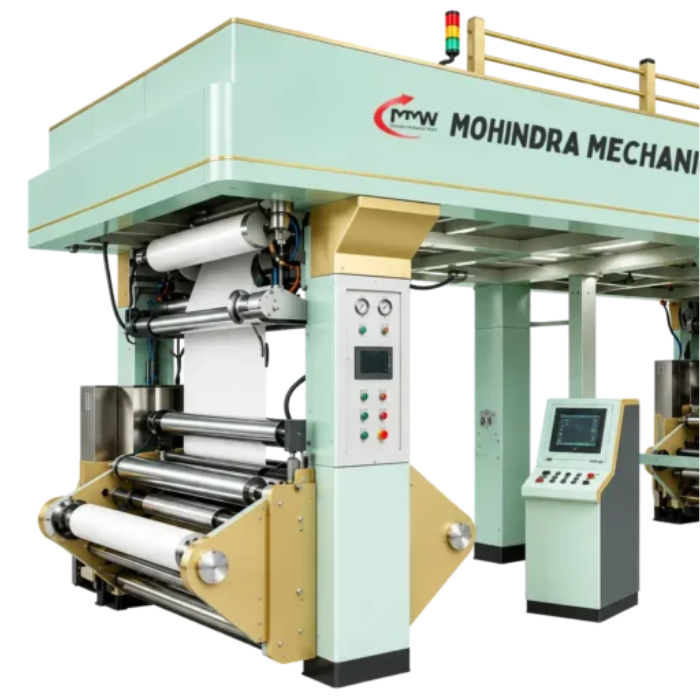

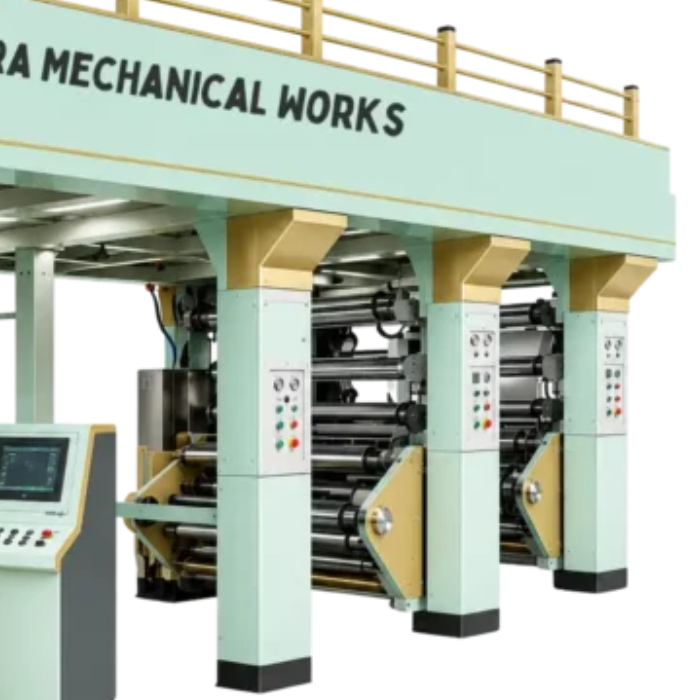

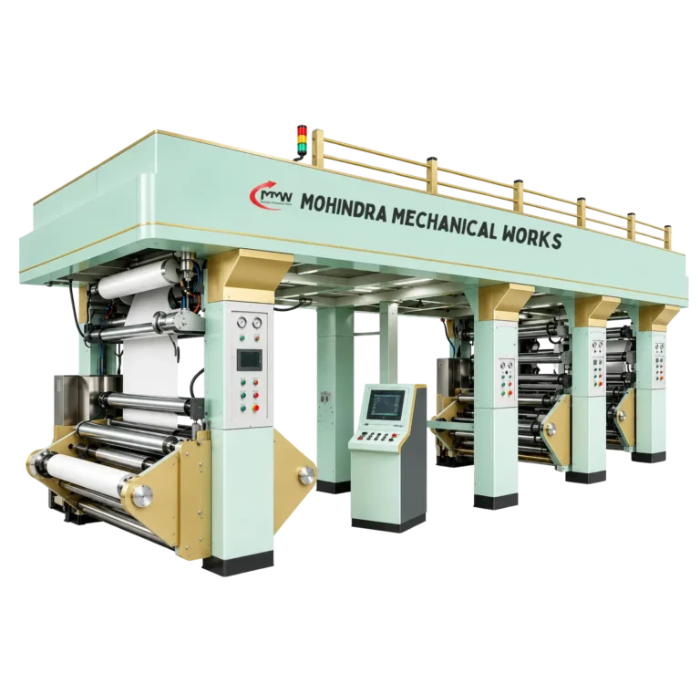

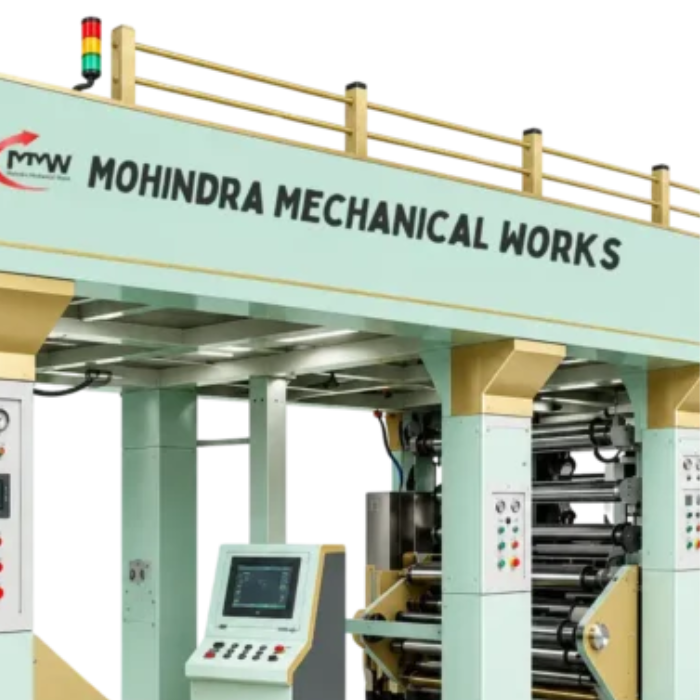

Paper Based Gutka Pouch Coating Machine

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paper Based Gutka Pouch Coating Machine Specification

Coating Transfer Method
Metering Rod / Mayer Bar

Power Requirement
25 kW

Max. Sheet Area
32 INCHS Inch (in)

Registration
Automatic / Manual

Max. Coating Area
32 Inch

Coating Type
Paper-Based Gutka Barrier Coating / Moisture-Proof Coating

Sheet Thickness
50 - 300 GSM

Coating Format
Web / Roll

Min. Sheet Area
12 Inch

Machine Speed
150 m/m

Feeding Type
Roll to Roll

Varnish Type
Heat Sealable Varnish / Aqueous Barrier Dispersion

Product Type
Paper Based Pouch Coating Machine

General Use
Paper & Flexible Packaging Coating Industry

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
9200 Kilograms (kg)

Coating Speed
150 m/m

Coating Head
Mayer Bar

Coating Width
32 Inch (in)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
20 - 25 Horsepower (HP)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
32 Inch (in)

Unwinding Width
32 Inch (in)

Dimension (L*W*H)
430 x 96 x 125 Inch (in)

Feature
Coating, Low Energy Consumption, High Speed, High Precision

Color
Mint Green, Champagne Gold & Cream

Warranty
1 Year

Paper Based Gutka Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva / Mundra / ICD Tughlakabad

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Heavy-Duty Industrial Wooden Box Packaging with Moisture-Proof Stretch Wrapping for Safe Transit

Main Export Market(s)
Middle East, Africa, Western Europe, Asia, Australia, Central America, North America, South America, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Paper Based Gutka Pouch Coating Machine About

Mohindra Mechanical Works presents the high-performance Automatic Paper Based Gutka Pouch Coating Machine, engineered specifically for converting plain and printed paper webs into high-barrier, moisture-proof, and heat-sealable gutkha packaging materials. Built to support eco-friendly paper-based pouch manufacturing, this robust machine applies specialized barrier dispersions directly onto paper substrates to replace non-recyclable multi-layer plastics and foils.

Featuring a high-precision Mayer Bar / Metering Rod coating head, an advanced Hot Air drying tunnel system, duplex unwinder, duplex rewinder, and automatic pneumatic web tension control, it operates smoothly at production speeds up to 150 m/min. The computerized PLC Control System with HMI touchscreen interface guarantees automated web alignment, uniform coating thickness, high seal strength, and reliable continuous operation.
