Silicone Coating Machine

Name: BOPP Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS

Price 3500000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Silicone Coating Machine Specification

Max. Coating Area
Continuous Roll-to-Roll Coating

Registration
Automatic Web Alignment

Varnish Type
Silicone Release Coating

Coating Type
Single-Side Silicone Coating

Max. Sheet Area
42 Inches

Machine Speed
150 m/m

Coating Transfer Method
Gravure/Reverse Gravure Transfer

Power Requirement
Three-Phase Industrial Power Supply

Coating Format
Continuous Web Coating

Min. Sheet Area
12 Inches

Feeding Type
Roll Feeding

Sheet Thickness
12 300 Micron

Product Type
Coating Machine

General Use
Silicone coating on paper, film and flexible substrates

Material
Other

Type
Other

Weight (kg)
10000 kg Approx. Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Gravure Roller

Coating Width
1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 100 175 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440 V Volt (v)

Humidification System
No

Glue Type
Solvent Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
15000 4000 4500 mm Millimeter (mm)

Feature
Low Energy Consumption, High Speed, Slitting, High Precision, Magnetic Tension Control, Printing, Coating, Auto Exchange Rolls

Color
White, Grey and Red

Warranty
1 Year

Silicone Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, New Delhi

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
2 Pieces Per Month

Delivery Time
60 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The Silicone Coating Machine is securely packed using moisture-resistant protective material, export-quality wrapping and strong wooden supports. Electrical panels, precision rollers, coating assemblies and sensitive components are separately protected to minimize transit damage.

Main Export Market(s)
Asia, Australia, Central America, North America, Western Europe, South America, Eastern Europe, Middle East, Africa

Main Domestic Market
Delhi

Certifications
Manufactured under an ISO-certified quality management system. Mechanical, electrical and safety components are inspected before machine dispatch. Applicable documents are provided according to the final machine configuration and purchase order.

Silicone Coating Machine About

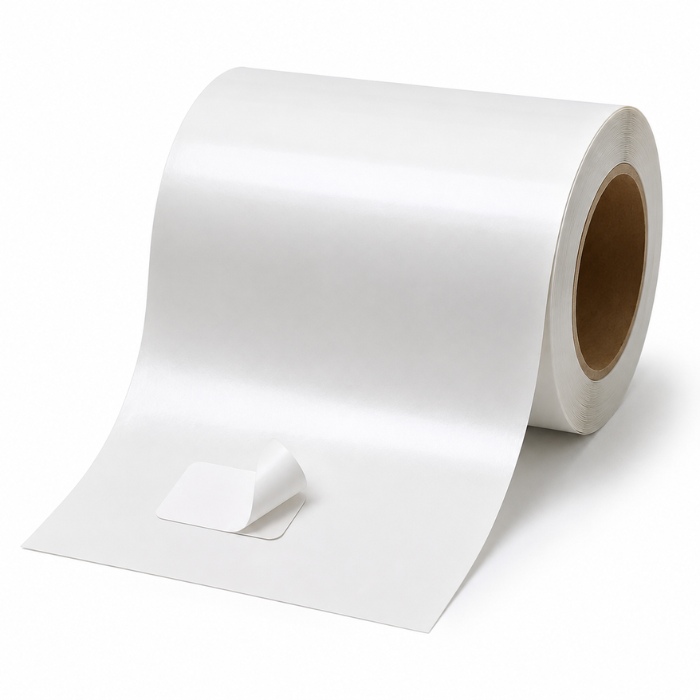

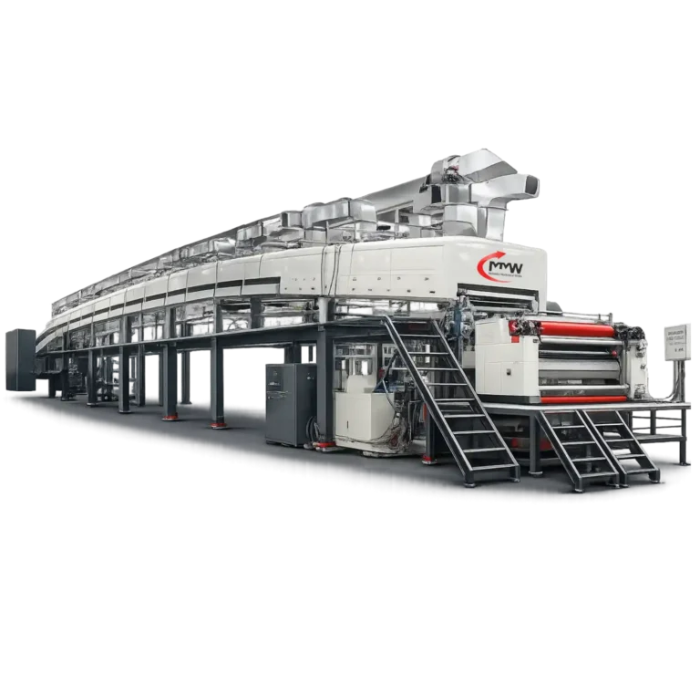

The Automatic Silicone Coating Machine from Mohindra Mechanical Works is designed for the precise and consistent application of silicone release coatings on paper, film and other flexible roll materials. It produces a smooth, controlled and uniform release surface suitable for labels, adhesive tapes, protective films and industrial release-liner applications.

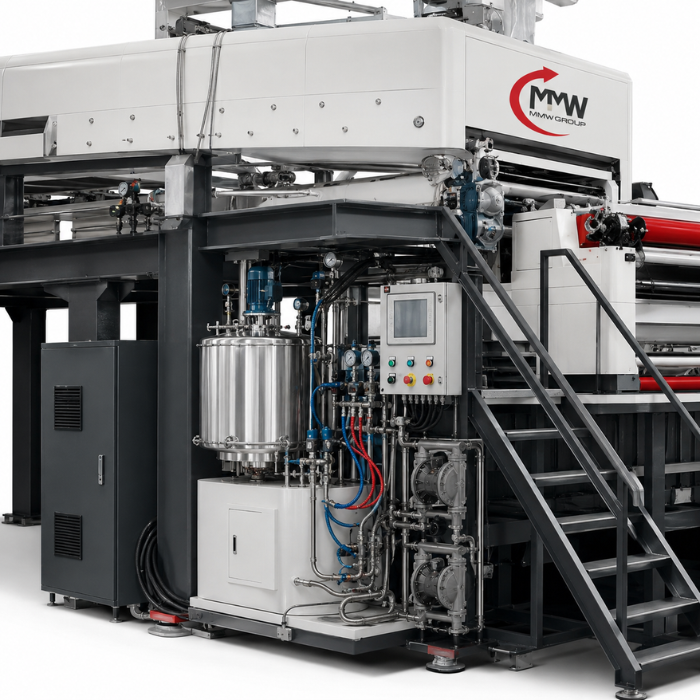

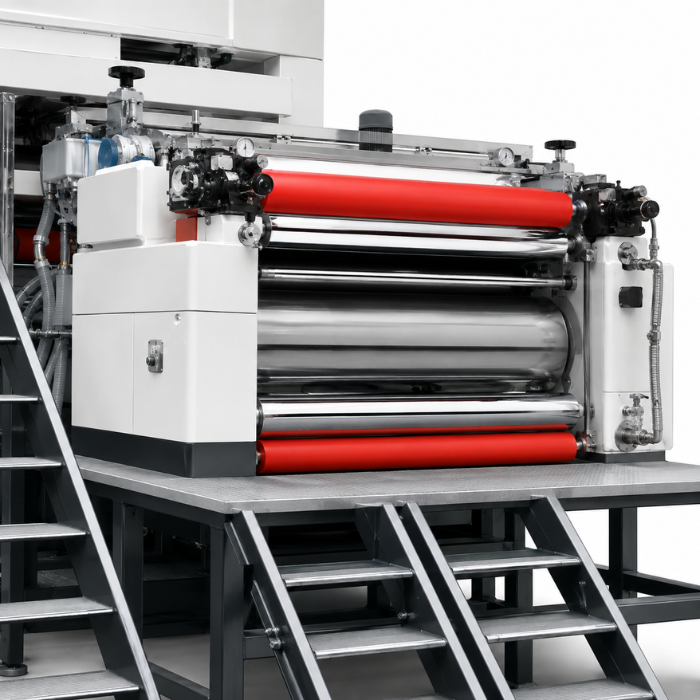

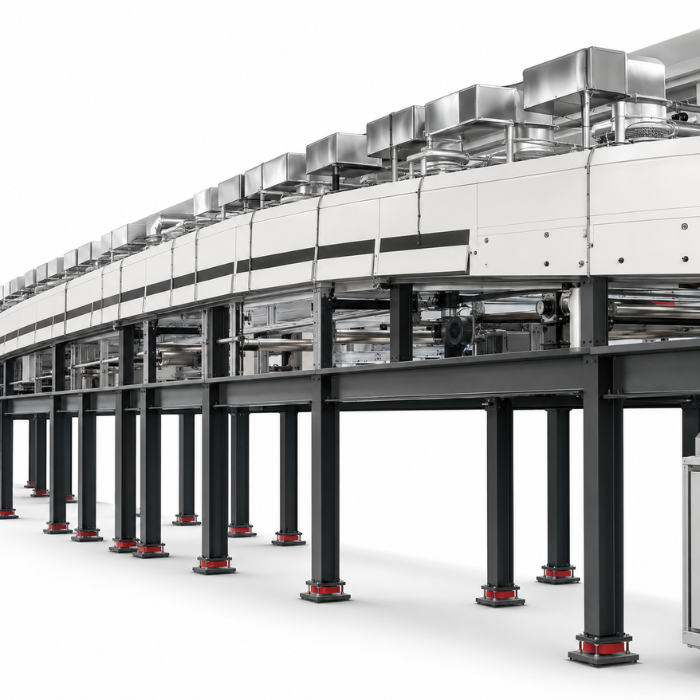

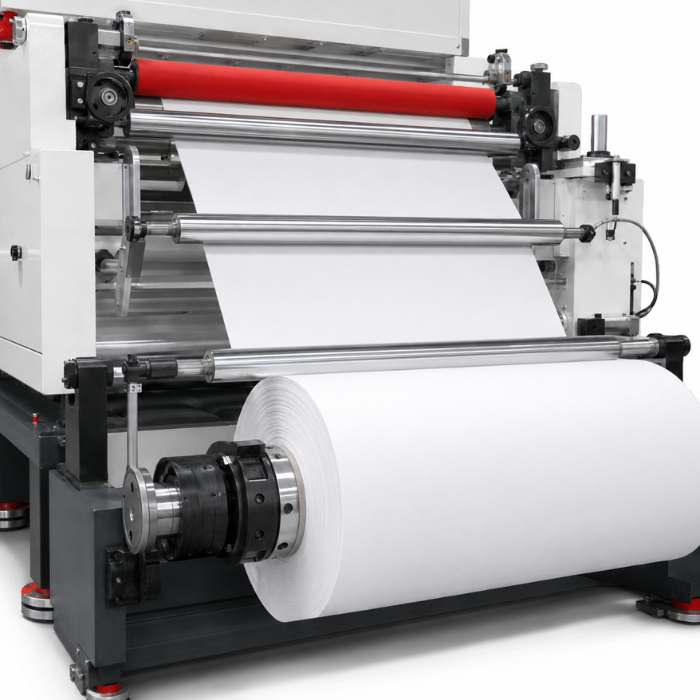

The machine incorporates automatic unwinding, web guiding, closed-loop tension control, precision coating, multi-zone drying and controlled rewinding systems. Its PLC and HMI control panel allows operators to manage coating speed, web tension, drying temperature and other production parameters conveniently. Precision-ground coating rollers help maintain uniform silicone deposition across the entire material width. The heavy-duty machine structure provides stable and low-vibration performance during continuous production. Working width, coating method, curing arrangement, speed and drying length can be customized according to the substrate and silicone formulation.
