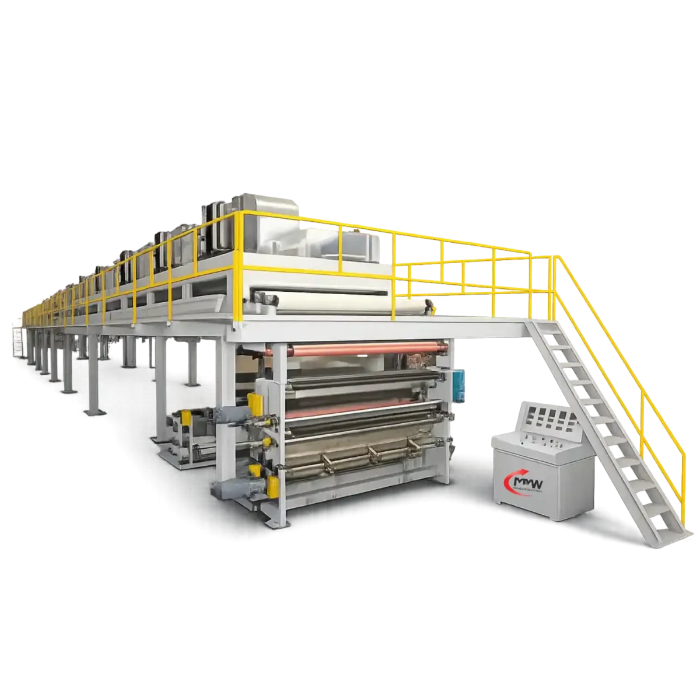

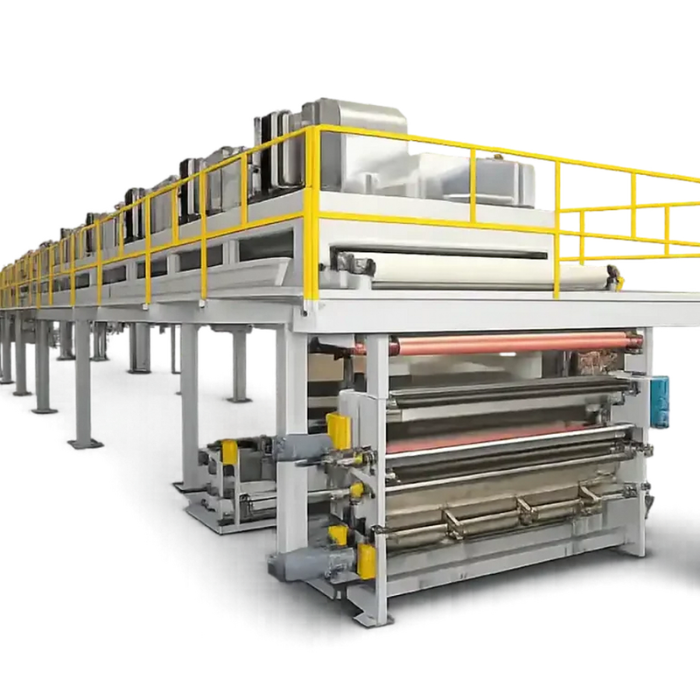

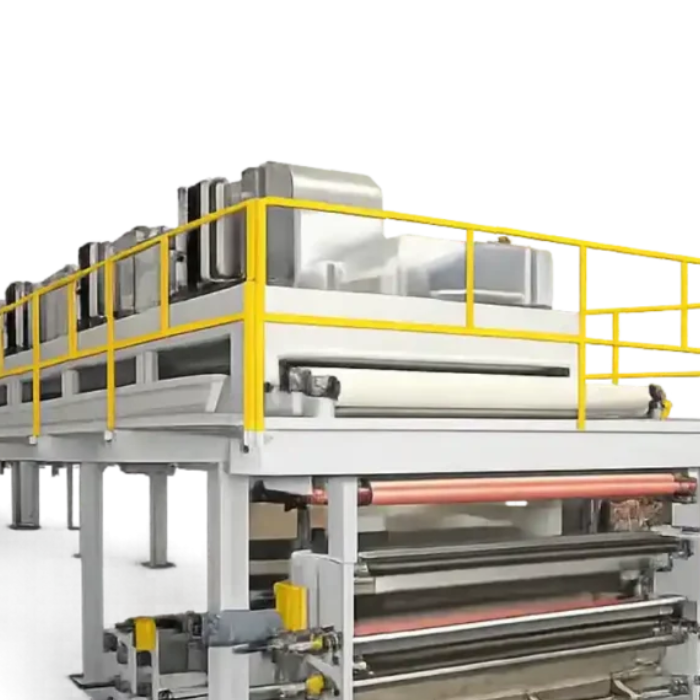

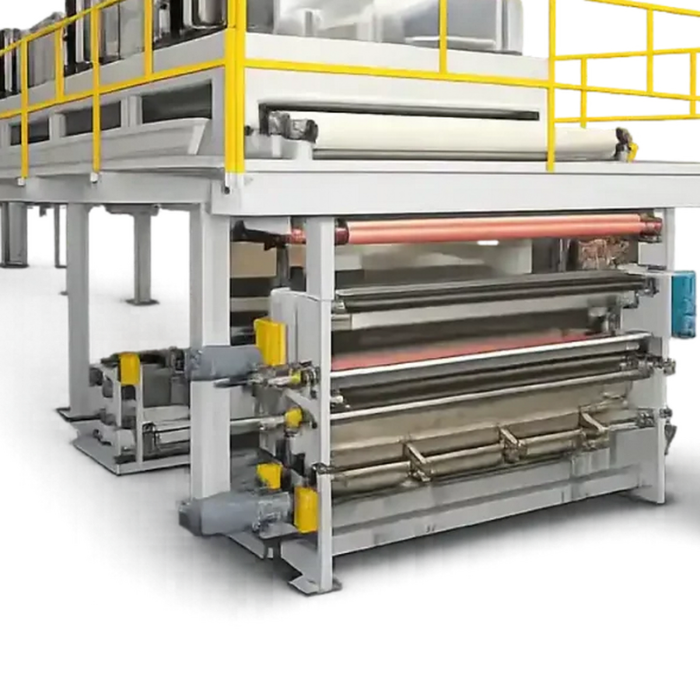

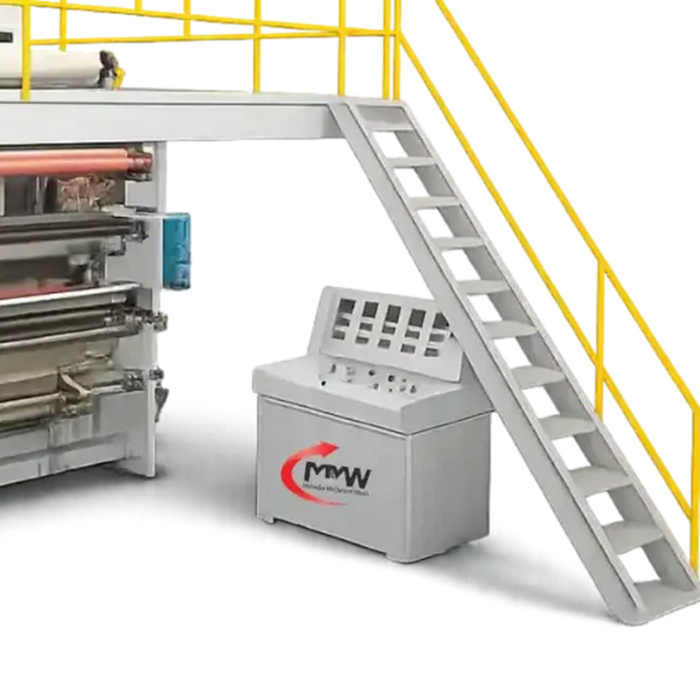

PVC Electrical Insulation Tape Coating Machine

Name: PVC Electrical Insulation Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 2000000.0 INR
Availability: InStock

Price 2000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PVC Electrical Insulation Tape Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Machine Speed
Up to 100 m/m

Varnish Type
Pressure-Sensitive Adhesive Coating

Sheet Thickness
20 500 Microns

Min. Sheet Area
As per Customer Requirement

Max. Coating Area
Full Web Width

Registration
Automatic Web Alignment

Max. Sheet Area
32 Inch

Coating Type
Electrical Insulation Tape Adhesive Coating

Power Requirement
90 160 kW

Coating Format
Roll To Roll

Coating Transfer Method
Comma COating

Product Type
Electrical Insulation Tape Adhesive Coating

General Use
Applying Adhesive Coating on Electrical-Insulation Tape Substrates

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
9000 Kilograms (kg)

Coating Speed
Up to 100 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
90 160 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440 Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1300 Millimeter (mm)

Unwinding Width
Up to 1300 Millimeter (mm)

Dimension (L*W*H)
1500 400 420 Centimeter (cm)

Feature
High Speed, High Precision, Coating, Low Energy Consumption

Color
White, Yellow or Customized

Warranty
1 Year

PVC Electrical Insulation Tape Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating assemblies, precision rollers, motors and other sensitive components are properly protected. Major sections are securely fastened on wooden or steel supports for transportation by road or sea. Export-worthy packaging can be supplied according to customer requirements.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

PVC Electrical Insulation Tape Coating Machine About

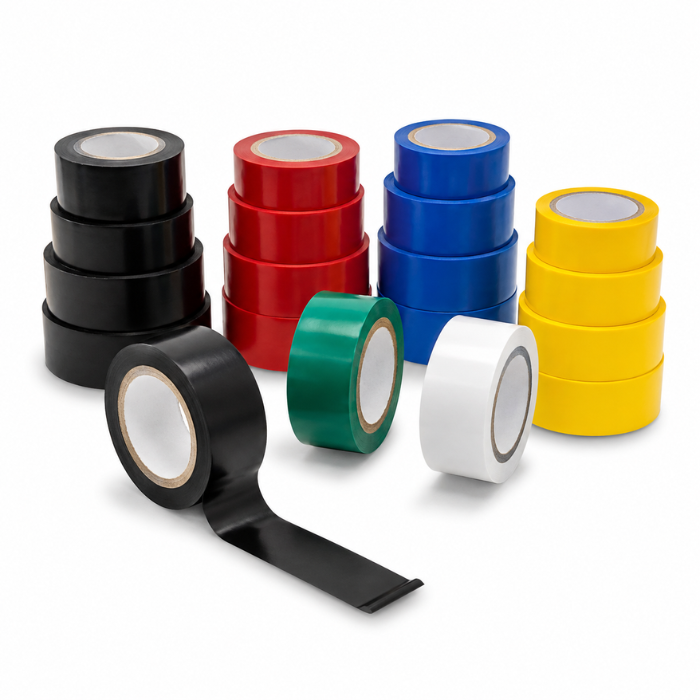

The Electrical Insulation Tape Coating Machine is designed to apply a uniform pressure-sensitive adhesive onto PVC, PET, polyimide and other electrical-insulation substrates. Its controlled roll-to-roll process, multi-zone drying system and automatic web alignment support consistent coating and smooth rewinding. The finished tapes are suitable for wire harnessing, cable wrapping, motor winding, transformer insulation and electronic applications.
