BOPP Tape Coating Machine with Dryer

Name: BOPP Tape Coating Machine with Dryer
Brand: MOHINDRA MECHANICAL WORKS
Price: 3500000.0 INR
Availability: InStock

Price 3500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BOPP Tape Coating Machine with Dryer Specification

Max. Sheet Area
Up to 1600 mm

Power Requirement
180 300 kW

Min. Sheet Area
As per Customer Requirement

Coating Format
Roll to Roll

Coating Transfer Method
Gravure, Mayer Bar or Customized Precision Coating

Sheet Thickness
20 50 Microns

Max. Coating Area
Full Web Width

Coating Type
BOPP Pressure-Sensitive Adhesive Coating

Machine Speed
Up to 150 m/m

Varnish Type
Water-Based Acrylic Adhesive

Registration
Automatic Web Alignment

Feeding Type
Continuous Roll Feeding

Product Type
BOPP Tape Coating Machine with Dryer

General Use
Manufacturing Adhesive-Coated BOPP Tape Jumbo Rolls

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
14000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Other

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Bopp Film

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
180 300 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
3000 500 550 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
White, Yellow or Customized

Warranty
1 Year

BOPP Tape Coating Machine with Dryer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. The coating head, adhesive-contact rollers, drying zones, air ducts, exhaust components, cooling rollers, unwinders, rewinders, drives, motors and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

BOPP Tape Coating Machine with Dryer About

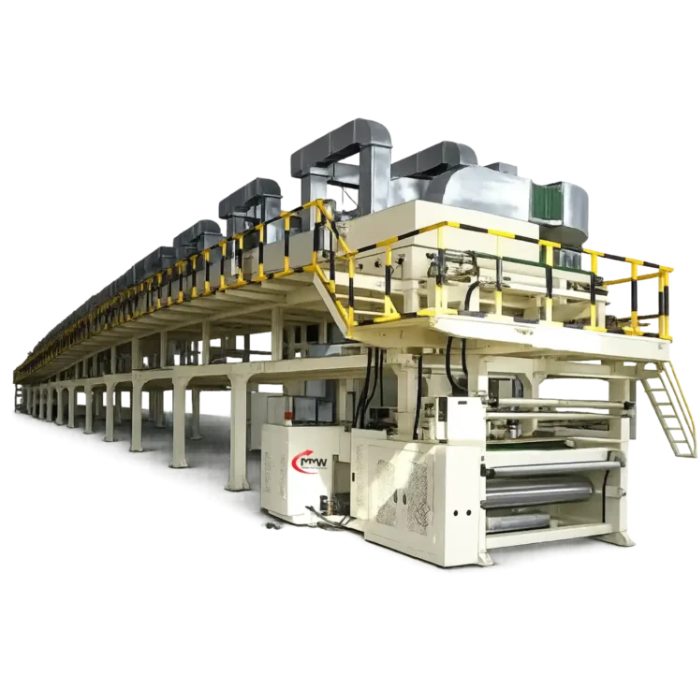

The BOPP Tape Coating Machine with Dryer is designed for applying a uniform layer of pressure-sensitive adhesive onto BOPP film and drying it under controlled conditions. Its roll-to-roll production system combines precise adhesive coating, automatic web-tension control, a multi-zone hot-air dryer, controlled film cooling and smooth jumbo-roll rewinding.

The extended drying chamber provides sufficient dwell time for effective moisture removal from water-based acrylic adhesive. Independent temperature and airflow controls help maintain consistent drying across the entire film width. The coated jumbo rolls can subsequently be slit and rewound into transparent tape, brown packing tape, printed tape and other self-adhesive BOPP tape products.
