Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine

Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine

Price 2000000.0 INR/ Unit

MOQ : 1 Unit

Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine Specification

  • Varnish Type
  • Water-Based or Bio-Based Heat-Seal Coating
  • Coating Format
  • Roll-to-Roll
  • Min. Sheet Area
  • As per Customer Requirement
  • Sheet Thickness
  • 120 450 GSM
  • Max. Sheet Area
  • 36 Inch
  • Max. Coating Area
  • Full Web Width
  • Coating Type
  • Waterproof and Heat-Sealable Paper Coating
  • Registration
  • Automatic Web Alignment
  • Power Requirement
  • 160 250 kW
  • Coating Transfer Method
  • Reverse-Roll Coating
  • Machine Speed
  • Up to 100 m/m
  • Feeding Type
  • Continuous Roll Feeding
  • Product Type
  • Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine
  • General Use
  • Manufacturing Waterproof and Heat-Sealable Paper-Cup Stock
  • Material
  • Stainless Steel
  • Type
  • Adhesive Coating Machine, Industrial Coating Machine
  • Weight (kg)
  • 14000 Kilograms (kg)
  • Coating Speed
  • Up to 100 m/m
  • Coating Head
  • Gravure Roller
  • Coating Width
  • Up to 1600 Millimeter (mm)
  • Coating Material
  • Other
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Power Source
  • Electric
  • Power Consumption
  • 160 250 Kilowatt (kW)
  • Heating System
  • Hot Air
  • Drive Type
  • Pneumatic
  • Voltage
  • 440v Volt (v)
  • Humidification System
  • No
  • Glue Type
  • Water Based
  • Rewinder Type
  • Duplex Rewinder
  • Unwinder Type
  • Duplex Unwinder
  • Dimension (L*W*H)
  • 2200 500 520 Centimeter (cm)
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Coating
  • Color
  • White, Yellow or Customized
  • Warranty
  • 1 Year


Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • FOB Port
  • ICD Tughlakabad, Delhi
  • Payment Terms
  • Cheque, Cash on Delivery (COD)
  • Supply Ability
  • 2 Units Per Month
  • Delivery Time
  • 90 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • The machine is covered with waterproof protective wrapping. The reverse-roll coating assembly, precision rollers, drying sections, electrical panels, motors and sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
  • Main Export Market(s)
  • Australia, North America, Western Europe, Africa, Asia, Central America, South America, Eastern Europe, Middle East
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 Certified, CE Certified Standard Machinery

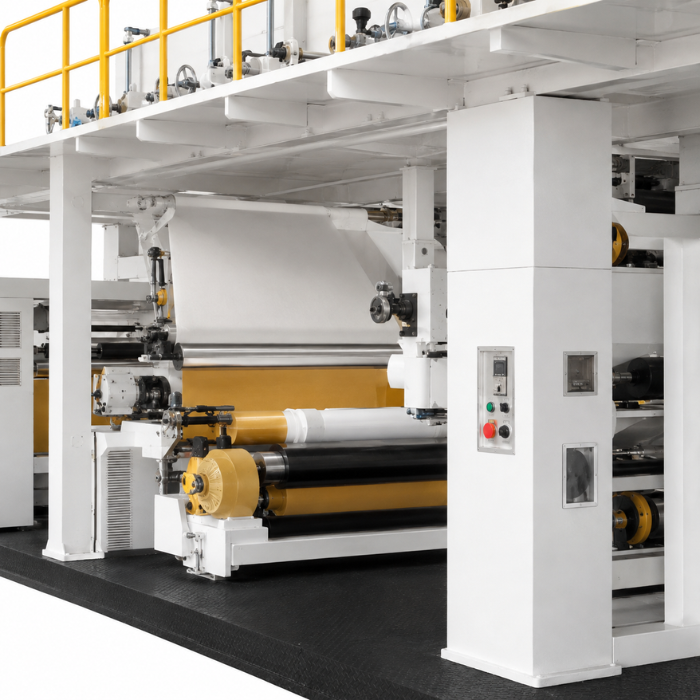

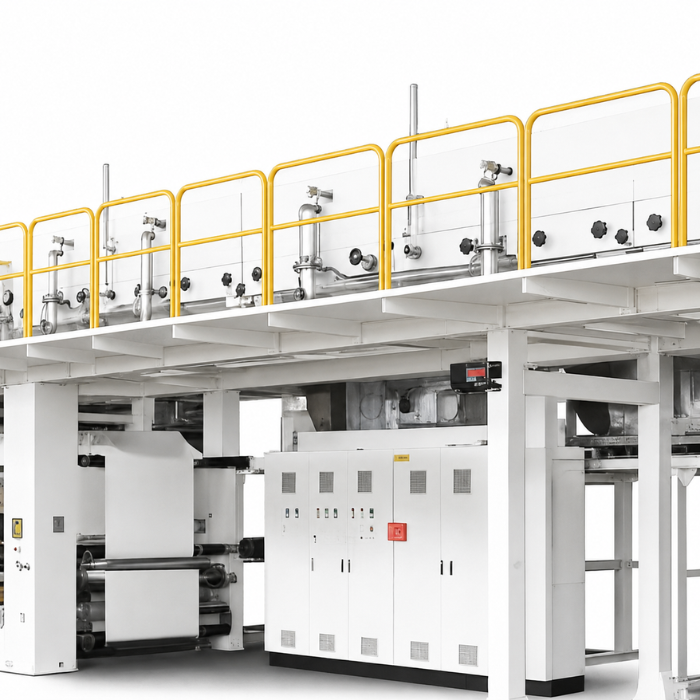

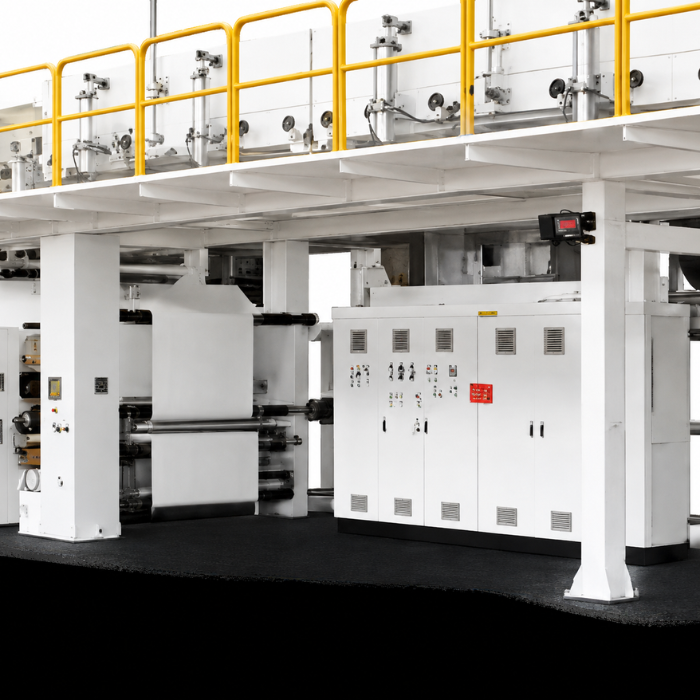

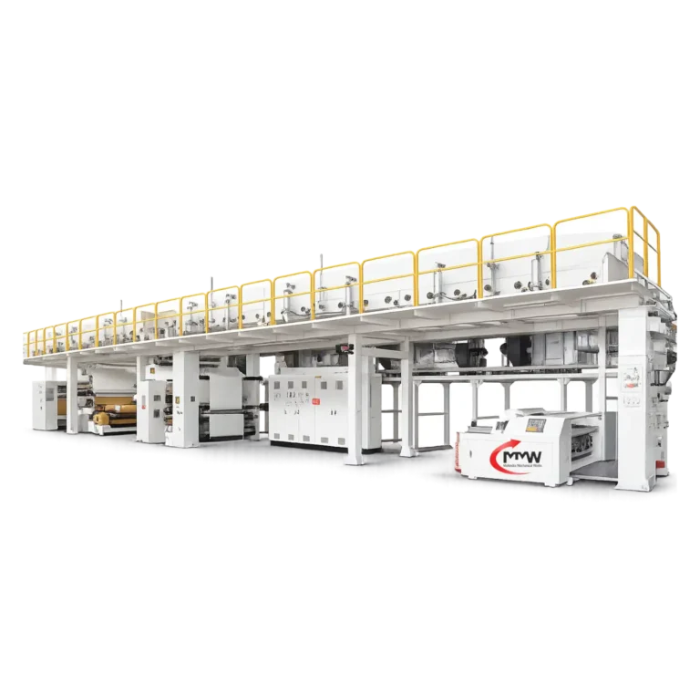

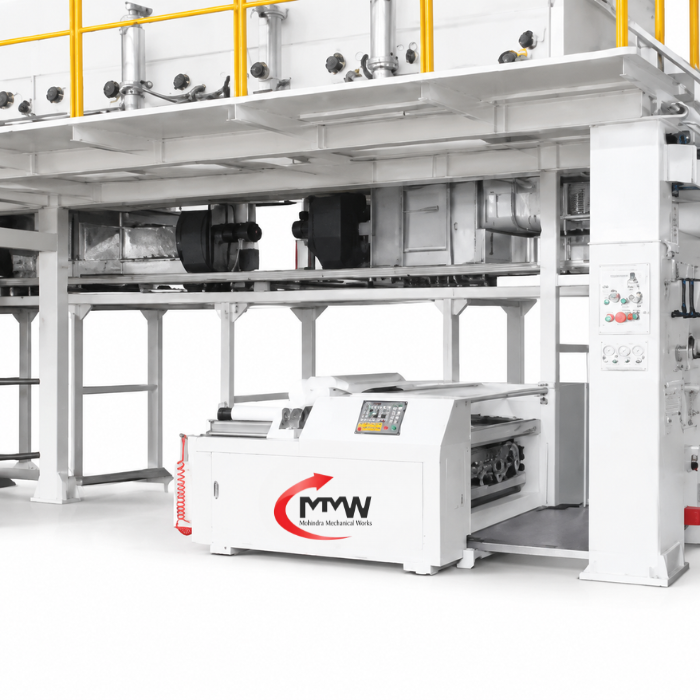

About Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine

The Reverse Paper Cup Waterproof & Heat-Sealable Paper Coating Machine applies a uniform barrier layer onto paper and paperboard rolls. Its precision reverse-roll system helps produce water-resistant, grease-resistant and heat-sealable paper for cups, bowls and disposable food containers.

Key Features

  • Precision reverse-roll coating system
  • Uniform waterproof barrier application
  • Controlled heat-sealable coating layer
  • Accurate coat-weight adjustment
  • Improved liquid and grease resistance
  • Single-side or double-side coating option
  • Automatic roll-to-roll production
  • PLC-based operating controls
  • Automatic web-tension management
  • Automatic edge-guiding system
  • Multi-zone hot-air drying and curing
  • Adjustable temperature and airflow
  • Stainless steel coating-contact components
  • Smooth and wrinkle-free rewinding
  • Customized working width available

Suitable Raw Materials

  • Cup-stock paper
  • Food-grade paperboard
  • Virgin pulp paper
  • White kraft paper
  • Food-grade kraft paper
  • Bowl-making paper
  • Container-board paper
  • Coated base paper
  • MG paper
  • Food-tray paperboard
  • Specialty food-packaging paper
  • Heat-seal-compatible base paper

Suitable Coating Materials

  • Water-based heat-seal coating
  • Aqueous polymer dispersion
  • Water-based acrylic barrier coating
  • Bio-based heat-sealable coating
  • PVA-based barrier formulation
  • Water-based wax emulsion
  • Oil- and grease-resistant coating
  • Moisture-resistant coating
  • Compostable barrier formulation
  • Customized food-contact coating

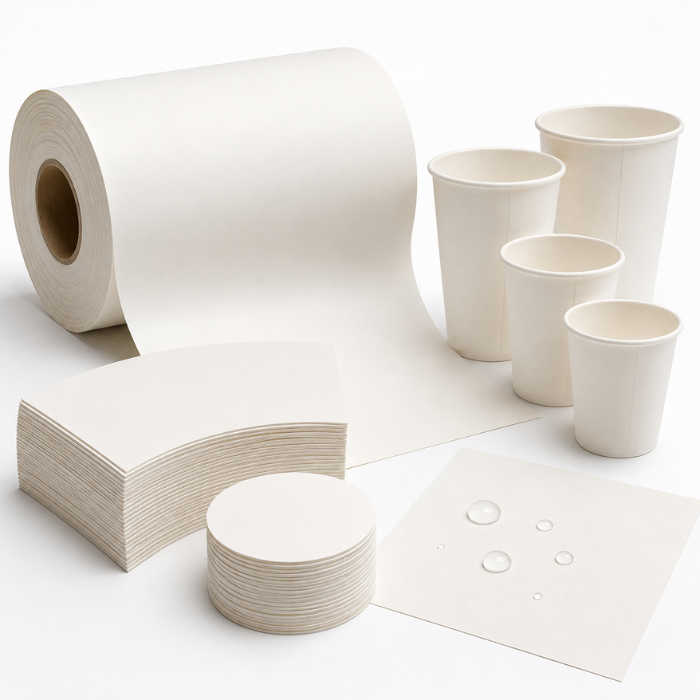

Finished Products

  • Waterproof paper-cup stock
  • Heat-sealable paper-cup rolls
  • Hot-drink cup paper
  • Cold-drink cup paper
  • Paper-bowl material
  • Ice-cream cup stock
  • Disposable food-container paper
  • Soup-cup paperboard
  • Takeaway cup and tub stock
  • Heat-sealable paper lids
  • Grease-resistant food cups
  • Coated food-tray paperboard
  • Plastic-reduction cup stock
  • Water-resistant packaging paper
