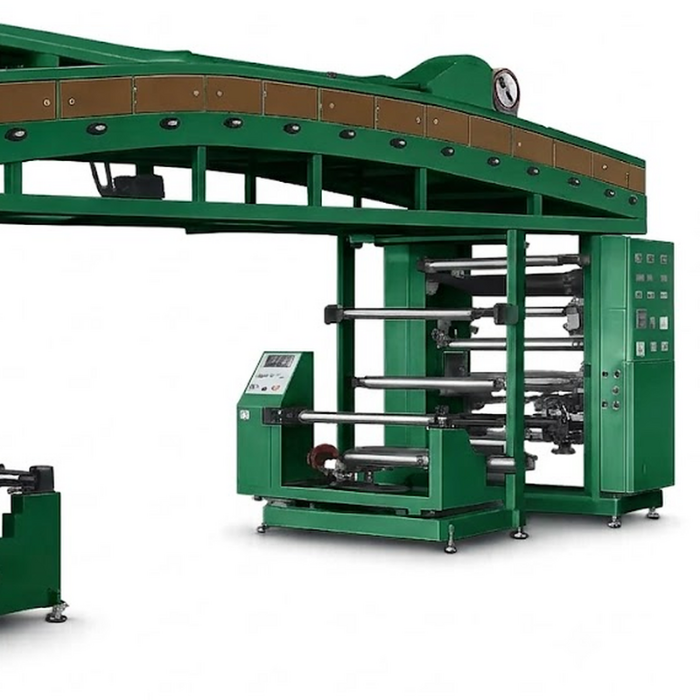

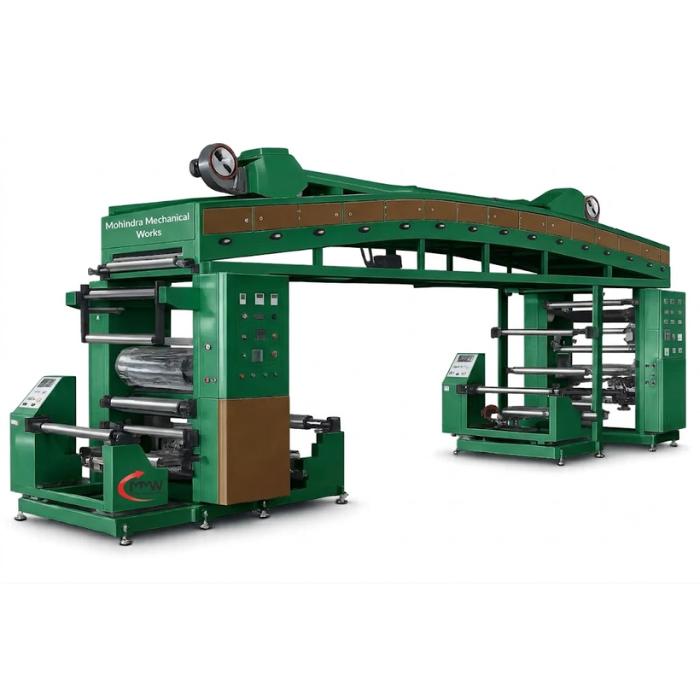

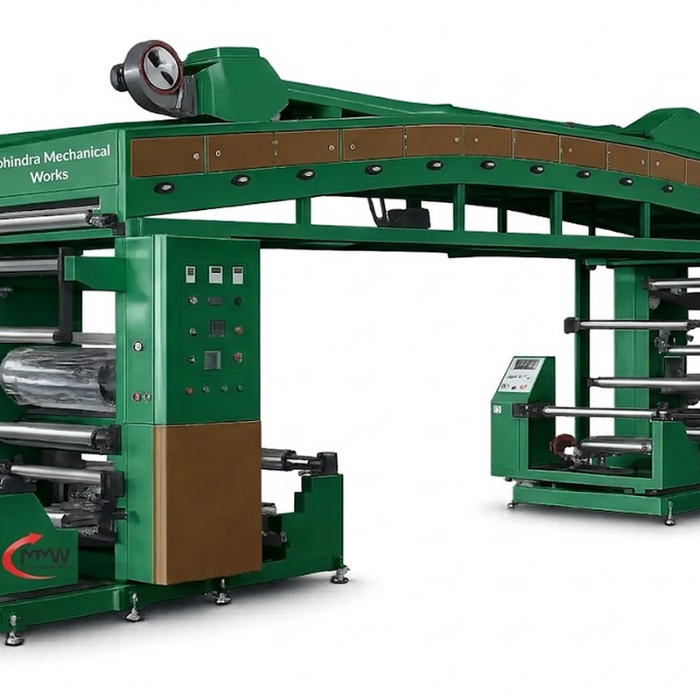

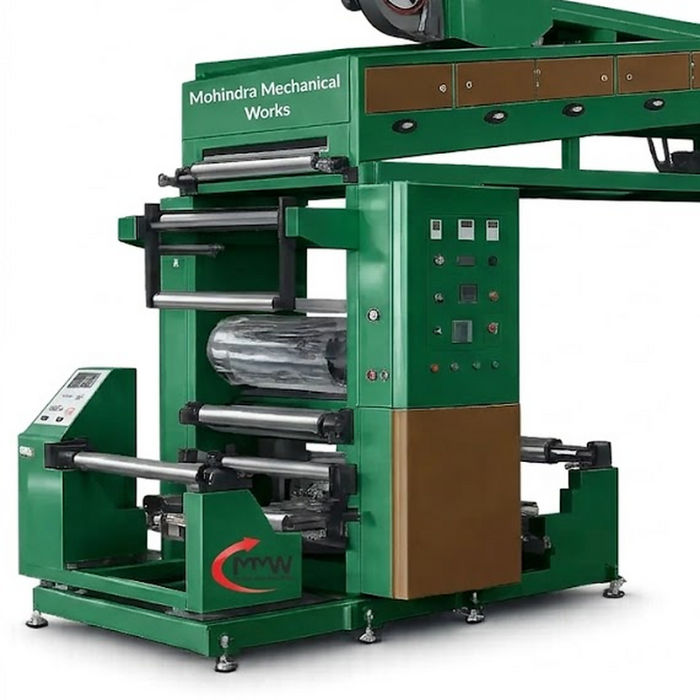

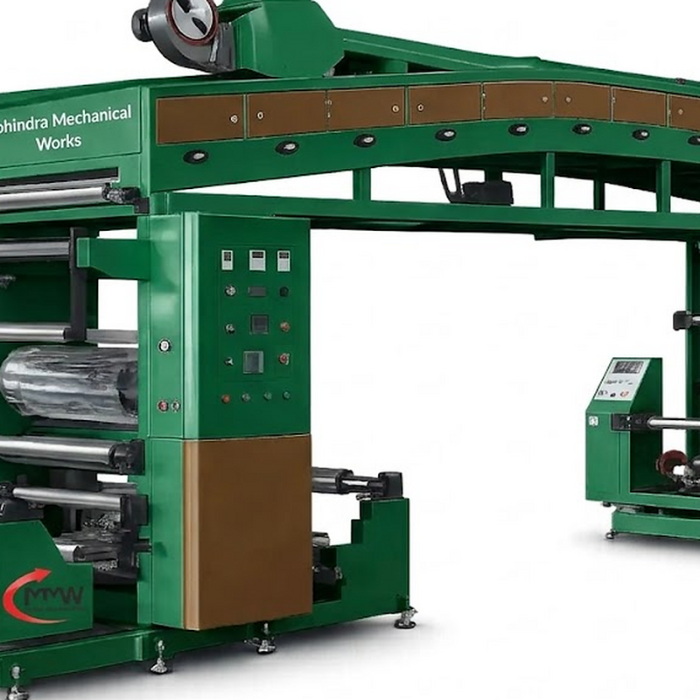

Foam Tape Coating Machine

Name: Foam Tape Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 2000000.0 INR
Availability: InStock

Price 2000000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Foam Tape Coating Machine Specification

Machine Speed
Up to 100 m/m

Max. Coating Area
Full Wed Width

Registration
Automatic Web Alignment

Coating Type
Foam Tape Adhesive Coating

Power Requirement
80 150 kW

Coating Transfer Method
Comma Coating

Varnish Type
Pressure-Sensitive Adhesive Coating

Max. Sheet Area
32 Inches

Min. Sheet Area
As per Customer Requirement

Coating Format
Roll To Roll

Sheet Thickness
0.5 10 mm

Feeding Type
Continuous Roll Feeding

Product Type
Foam Tape Coating Machine

General Use
Applying Pressure-Sensitive Adhesive on Foam Rolls

Material
Stainless Steel

Type
Adhesive Coating Machine, Industrial Coating Machine

Weight (kg)
8000 Kilograms (kg)

Coating Speed
Up to 100 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
80 150 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1300 Millimeter (mm)

Unwinding Width
Up to 1300 Millimeter (mm)

Dimension (L*W*H)
1400 380 400 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Warranty
1 Year

Foam Tape Coating Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Sets Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Electrical panels, coating heads, rollers and motors are properly protected. Major sections are securely fastened on wooden or steel supports for domestic or export transportation.

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Foam Tape Coating Machine About

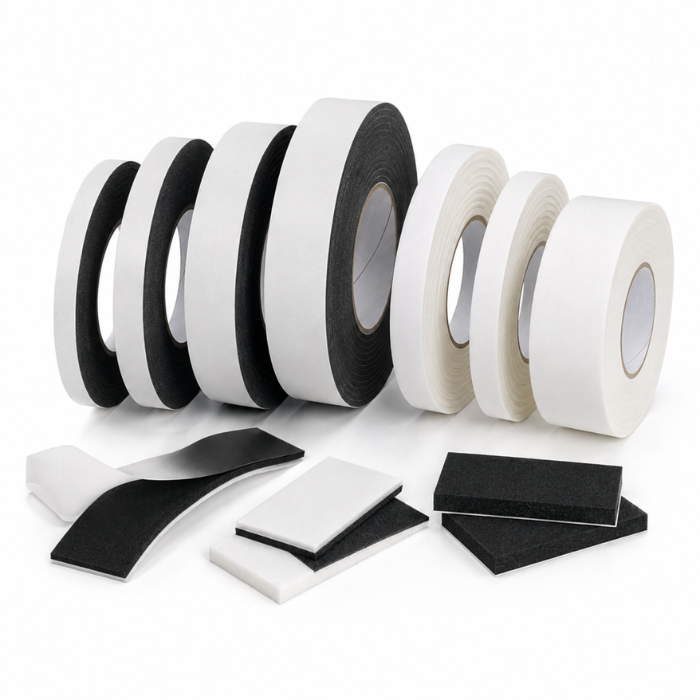

The Foam Tape Coating Machine by Mohindra Mechanical Works applies a controlled pressure-sensitive adhesive layer onto foam rolls. It supports single- and double-sided coating with release-liner lamination, hot-air drying and automatic rewinding. PLC controls help maintain uniform coat weight, stable web tension and smooth material movement. The machine is suitable for producing foam tapes used in mounting, sealing, cushioning, automotive, electronics and construction applications.
