OGR Paper Coating Machine

Price 3000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OGR Paper Coating Machine Specification

Max. Sheet Area
32 Inches

Power Requirement
120 200 kW

Coating Transfer Method
Mayer Bar Coating

Varnish Type
Water-Based OGR Coating

Min. Sheet Area
As per Customer Requirement

Feeding Type
Continuous Roll Feeding

Coating Type
Oil and Grease Resistant Barrier Coating

Machine Speed
Up to 150 m/m

Sheet Thickness
30 300 GSM

Max. Coating Area
Full Web Width

Registration
Automatic Web Alignment

Coating Format
Roll-to-Roll

Product Type
OGR Paper Coating Machine

General Use
Applying Oil and Grease Resistant Coating on Paper

Material
Stainless Steel

Type
Industrial Coating Machine, Adhesive Coating Machine

Weight (kg)
12000 Kilograms (kg)

Coating Speed
Up to 150 m/m

Coating Head
Mayer Bar

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
No

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
120 200 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Pneumatic

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
1800 450 500 Centimeter (cm)

Feature
Low Energy Consumption, High Speed, High Precision, Coating

Color
Orange, White or Customized

Warranty
1 Year

OGR Paper Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered using waterproof protective material. Electrical panels, coating assemblies, rollers, motors and other sensitive components are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. Export-worthy packaging can be provided according to customer requirements.

Main Export Market(s)
Asia, Australia, South America, Central America, North America, Africa, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

OGR Paper Coating Machine About

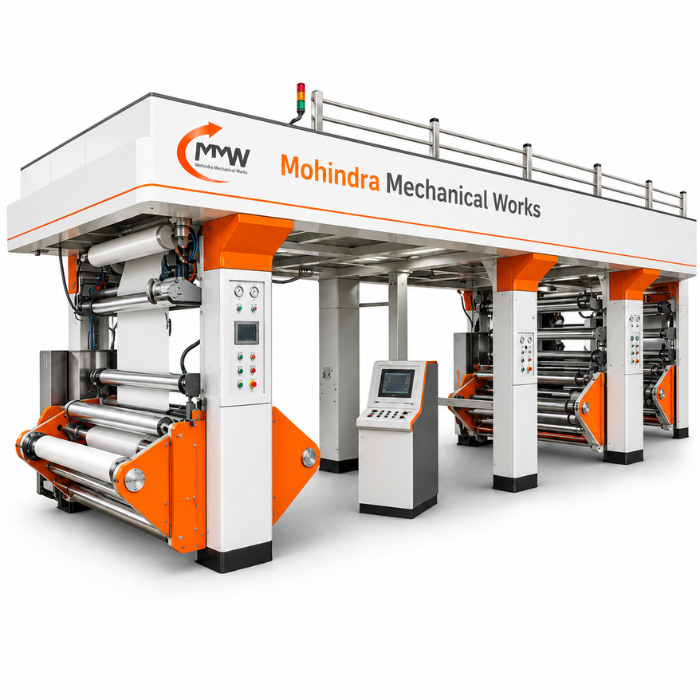

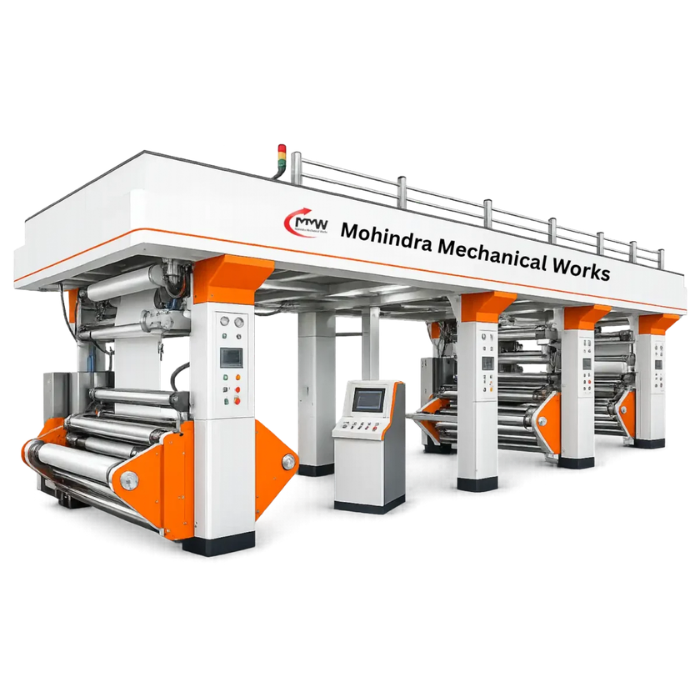

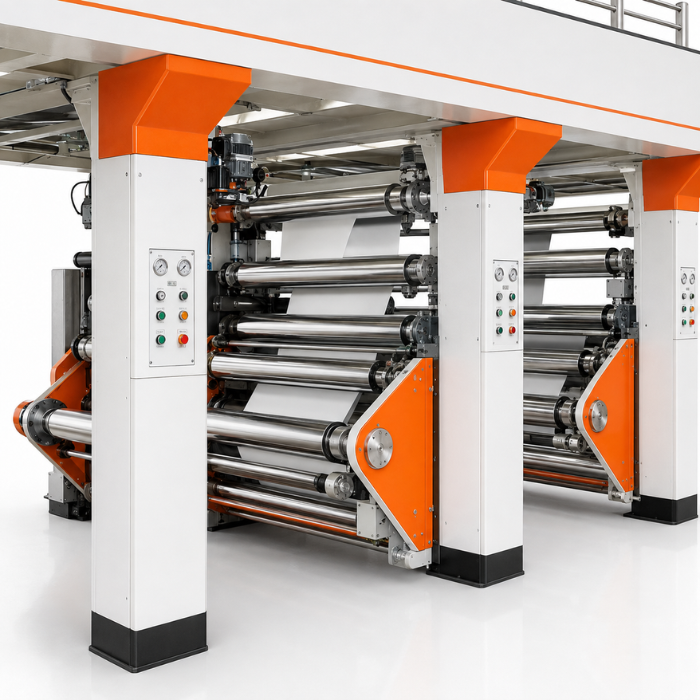

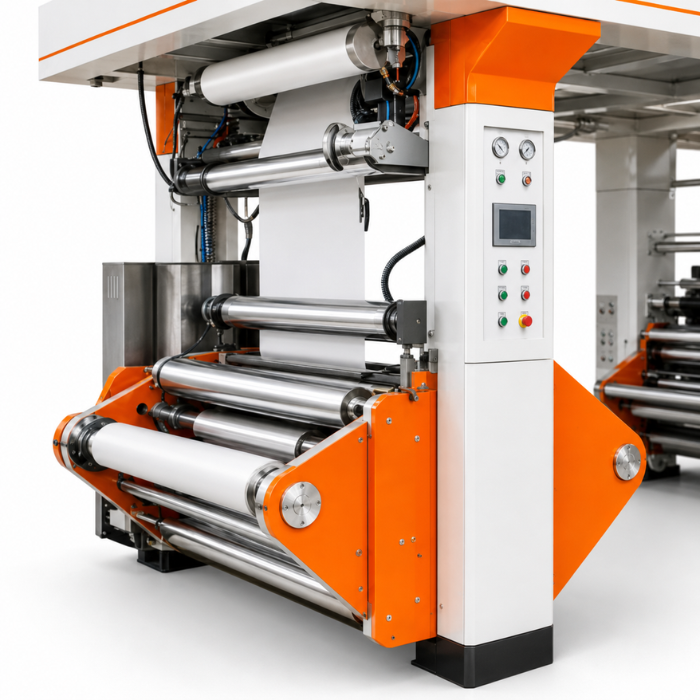

The OGR Paper Coating Machine manufactured by Mohindra Mechanical Works is designed for applying an Oil and Grease Resistant barrier coating onto paper and paperboard rolls. The coated paper is suitable for packaging food and other products containing oil, butter, grease or fatty ingredients.

The machine operates through a continuous roll-to-roll process comprising automatic unwinding, precision coating, controlled hot-air drying and uniform rewinding. Its Mayer Bar coating arrangement helps maintain a consistent coat weight and even coverage across the complete paper width.

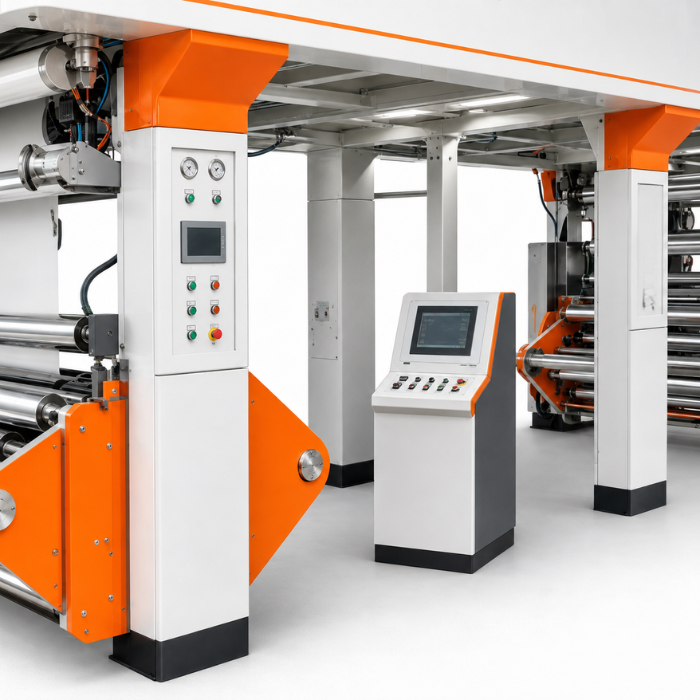

A PLC-based control system allows operators to manage production speed, web tension, coating parameters and drying temperature. Automatic edge guiding keeps the paper correctly aligned during processing. The machine can handle suitable water-based polymer, bio-based and customized OGR coating formulations. Working width, coating stations, drying length and heating source can be customized according to the required grease-resistance level and production capacity.
