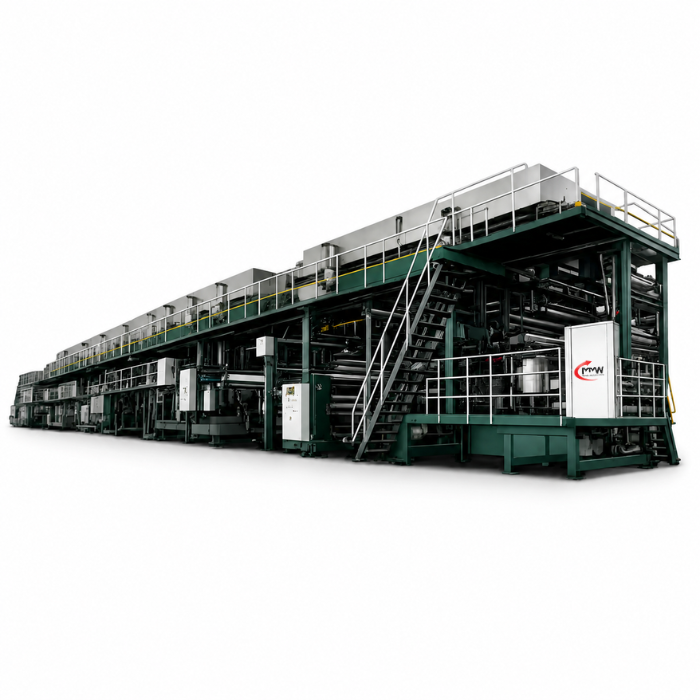

Pouch Coating Machine

Name: Pouch Coating Machine
Brand: MOHINDRA MECHANICAL WORKS
Price: 7500000.0 INR
Availability: InStock

Price 7500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pouch Coating Machine Specification

Feeding Type
Continuous Roll Feeding

Max. Sheet Area
Up to 1600 mm Working Width

Coating Type
Flexible-Packaging Barrier Coating

Coating Transfer Method
Gravure, Reverse Gravure, Comma-Roll or Mayer-Bar Coating

Machine Speed
Up to 120 m/m

Coating Format
Roll to Roll

Min. Sheet Area
As per Customer Requirement

Power Requirement
160 250 kW

Registration
Automatic Web Alignment

Max. Coating Area
Full Web Width

Varnish Type
Protective, Barrier or Heat-Sealable Coating

Sheet Thickness
40 200 GSM

Product Type
Tobacco Pouch Coating Machine

General Use
Applying Barrier Coating on Paper and Film for Tobacco-Pouch Packaging

Material
Stainless Steel

Type
Adhesive Coating Machine

Weight (kg)
14000 Kilograms (kg)

Coating Speed
Up to 120 m/m

Coating Head
Gravure Roller

Coating Width
Up to 1600 Millimeter (mm)

Coating Material
Other

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Power Source
Electric

Power Consumption
Approximately 160 250 Kilowatt (kW)

Heating System
Hot Air

Drive Type
Electric

Voltage
440v Volt (v)

Humidification System
No

Glue Type
Water Based

Rewinder Type
Duplex Rewinder

Unwinder Type
Duplex Unwinder

Rewinding Width
Up to 1600 Millimeter (mm)

Unwinding Width
Up to 1600 Millimeter (mm)

Dimension (L*W*H)
2400 550 550 Centimeter (cm)

Feature
Coating, Low Energy Consumption, High Speed, High Precision

Color
Dark Green, White or Customized

Warranty
1 Year

Pouch Coating Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ICD Tughlakabad, Delhi

Payment Terms
Cash on Delivery (COD), Cheque

Supply Ability
2 Pieces Per Month

Delivery Time
90 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
The machine is covered with waterproof protective wrapping. Coating heads, gravure rollers, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea.

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
ISO 9001:2015 Certified, CE Certified Standard Machinery

Pouch Coating Machine About

The Tobacco Pouch Coating Machine applies a controlled functional or barrier layer onto flexible packaging substrates supplied in roll form. It can process compatible paper, PET film, BOPP film and other approved packaging webs used for preparing printed tobacco-pouch and sachet material.

The continuous roll-to-roll system combines precision coating, automatic web-tension control, edge guiding, multi-zone hot-air drying and smooth rewinding. Gravure, reverse-gravure, comma-roll or Mayer-bar coating arrangements can be provided according to the substrate, coating viscosity and required coat weight.

Compatible coatings can improve moisture resistance, oil and grease resistance, aroma retention, print receptivity, surface protection and heat-sealing performance. Water-based barrier formulations are supported, while solvent-based coatings require an approved exhaust system, flameproof electrical equipment and suitable solvent-handling arrangements.

The machine manufactures coated packaging material in jumbo-roll form. Printing, slitting, pouch forming, filling and sealing are separate processes requiring additional equipment.
